Дейвуд

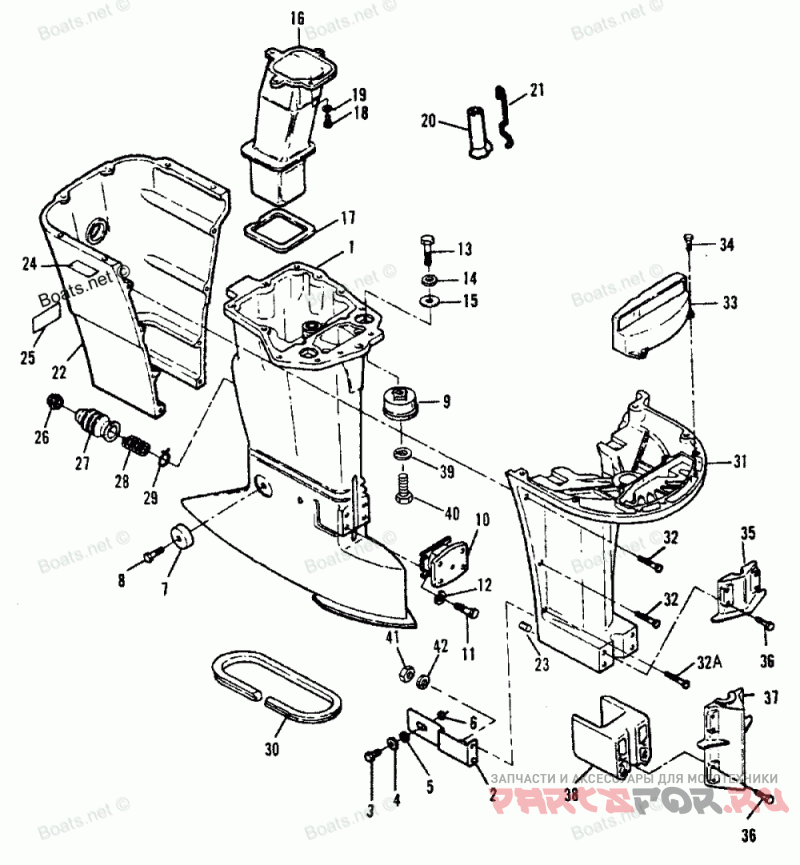

Force H1201G91C

Force
#oem кодцена
1
819432A2
HOUSING KIT-DRIVESHAFT (20") (PAINTED)
1
819433A2
HOUSING KIT-DRIVESHAFT (25") (PAINTED)
2
F720835-1
Ремень
3
826377
SCREW (5/16-18 X 3/4")W/DL
4
F513286
Шайба
5
69150
Шайба
6
F720201
Проставка
7
F438962
MOUNT-LOWER SHOCK
8
F1263
SCREW (5/16-18 X 9/16")
9
F85965
MOUNT-UPPER SHOCK (1990A MODELS)
9
F699965-1
MOUNT-UPPER SHOCK
10
F438346
MOUNT-LOWER SHOCK
11
F1822
SCREW (5/16-18 X 7/8")
12
53166
LOCKWASHER (5/16")
13
19922075
SCREW (3/8-16 X 3/4") WITH DRI LOC
14
20553
Шайба
15
FA85355-1
WASHER SET
16
F85660-1
TUBE-EXHAUST
17
F439736
SEAL-EXHAUST TUBE
18
19934075
SCREW (1/4-20 X 3/4") WITH DRI LOC
19
26992
LOCKWASHER (1/4")
20
816515
STANDTUBE-EXHAUST RELIEF
21
F686491
CLIP-STANDTUBE RETAINER
22
819317F
COVER-REAR (PAINTED)
22
817931A7
COVER KIT-REAR (PAINTED) (1990A THRU 1990B)
23
F1664
PIN-SPRING
24
F717893
DECAL-SIDE
25
F716374
DECAL-REAR
26
816513
INSERT-IDLE EXHAUST BOOT
27
F85130
BOOT-IDLE EXHAUST
28
F85380
SPRING-IDLE EXHAUST BOOT
29
F85772
Зажим
30
F178323
SEAL-DRIVESHAFT HOUSING
31
FK719135F
COVER KIT-FRONT (PAINTED)
32
F2030
SCREW (1/4-20 X 1-1/4")
32A
F2288
SCREW (1/4-20 X 1-1/2")
33
FK692779
BAFFLE KIT-AIR INTAKE
34
41772
SCREW (10-24 X 1/2")
35
FK85606
CAP (20") (1990A MODELS)
35
F720606F
CAP (20")
36
F2312
SCREW (5/16-18 X 2-1/8")
37
F694606
CAP (25") (1990A MODELS)
37
F721606F
CAP (25") (PAINTED)
38
F631707F
COVER-SHOCK MOUNT (25") (PAINTED)
39
35048
LOCKWASHER (3/8") (1990A MODELS)
39
38829
LOCKWASHER (1/2")
40
98261
SCREW (3/8-16 X 3/4" ) (1990A MODELS)
40
826577
SCREW(1/2-13X7/8")W/DL
41
68292
NUT (5/16-18)
42
53166
LOCKWASHER (5/16")
-
F1729
PLUG-REAR COVER
