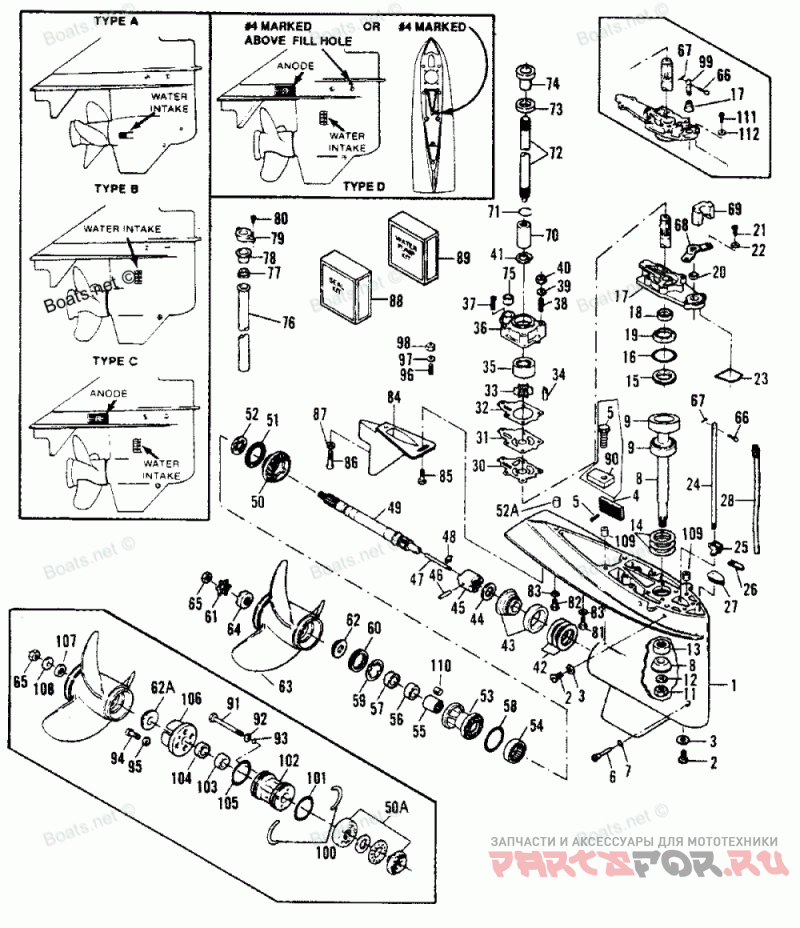

Gear Housing

Force H1201A91A

Force
#oem кодцена
-
817925A5
GEAR HSG. (COMPLETE-PAINTED-1.93:1) TYPE A & B
1
819190A3
GEAR HSG. (BASIC-PAINTED) TYPE A & B
-
820588A1
GEAR HSG. (COMPLETE-PAINTED-1.93:1) TYPE C
1
819231A13
GEAR HSG. KIT (BASIC-PAINTED) TYPE C
-
820588A7
GEAR HSG. (HI-ALT) (PAINTED-2.2:1) TYPE D
1
820588A6
GEAR HSG. (BASIC-PAINTED) TYPE D
2
F50109
Заглушка
3
19183
Шайба
4
819232
ANODE (TYPE C & D)
5
F2317
SCREW (1/4-20 X 7/8")
6
826374
PIN-GEAR SHIFT ARM-W/DRI LOC
7
25007
Кольцо
9
35924A1
Вкладыши комплект
11
826375
NUT (5/8-18) W/DRI LOC
12
92721
Шайба
13
42647A1
BEARING ASSEMBLY
14
819415A1
SHIM SET
15
824519
RETAINER-DRIVESHAFT BEARING UPPER
16
90011
SEAL-DRIVESHAFT COVER
17
FK721706
COVER KIT (TYPE A -NOTE: BELLOWS ARE NLA)
17
818074A1
COVER ASSEMBLY (TYPE B & C & D)
18
819740
SEAL-DRIVESHAFT WATER PUMP
19
F694305
SEAL-DRIVESHAFT
20
817472
SEAL-GEAR SHIFT ROD-LOWER
21
F1999
SCREW (1/4-20 X 7/8")
22
26992
LOCKWASHER (1/4")
23
F707305
Кольцо
24
F694705
ROD-GEAR SHIFT-LOWER (TYPE A)
24
F523705-1
ROD-GEAR SHIFT-LOWER (TYPE B & C & D)
25
FA84621-1
COUPLING ASSEMBLY-GEAR SHIFT
26
F707885
RETAINER-PITOT PLUG
27
F694226
PLUG-PITOT PLUG
28
85822A12
CONNECTOR ASSEMBLY
30
F694830
GASKET-WATER PUMP-LOWER
31
F699562
PLATE -WATER PUMP
32
F694031
GASKET-WATER PUMP-UPPER
33
F694065
IMPELLER -WATER PUMP
34
F694498
KEY-DRIVESHAFT
35
F694564-1
INSERT-WATER PUMP
36
F694060-2
BODY-WATER PUMP
37
F2234
SCREW (#10 X 1-1/8") (TYPE B & C & D)
38
826372
STUD (1/4-28 X 3-1/8") WITH DRI LOC
39
71055
Шайба
40
13438
NUT (1/4-28)
41
F695830
Уплотнение
42
819416A1
SHIM SET
43
FS694023
GEAR ASSY.-FORWARD (1.93:1 - TYPE A)
43
FS707023
GEAR ASSY.-FORWARD (1.93:1 - TYPE B & C)
43
816434A5
GEAR ASSY.-FORWARD (1.93:1 - TYPE D)
43
819287A2
GEAR ASSY.-FORWARD (2.2:1 - TYPE C & D)
44
819414A1
SPACER SET (1990A THRU 1992C MODELS)
45
816433
CLUTCH-SHIFT
46
F2419
PIN-SPRING
47
F84871-1
PIN-SHIFT
48
F90619-2
YOKE-GEAR SHIFT
49
FA694098
PROPELLER SHAFT (TYPE A)
49
819284A3
PROPELLER SHAFT (TYPE B & C & D)
50A
F2A694662
GEAR ASSY.-REVERSE (1.93:1 -TYPE A)
50
816435
GEAR-REVERSE (1.93:1 -TYPE B & C & D)
50
F722662
GEAR-REVERSE (2.2:1 -TYPE C & D)
51
12576
RING-THRUST
52
F707902
RING-THRUST
52A
F8580
PIN-LOCATING
53
FA707239
SPOOL ASSEMBLY-PROP SHAFT
54
12578
Игольчатый подшипник
55
30956
Подшипник
56
F697555
SEAL -PROP SHAFT SPOOL
57
12224
SEAL -PROP SHAFT SPOOL
58
F707278
SEAL-PROP SHAFT SPOOL
59
F707286
WASHER-TAB
60
819217
Седло
61
816629
WASHER-TAB
62A
F523099-1
SPACER (TYPE A)
62
F698099-1
SPACER (TYPE B & C & D)
62
819057
SPACER (TYPE B & C & D)
64
F697299
WASHER (TYPE B & C & D)
64
F523282
WASHER (TYPE B & C & D)
65
52707A1
NUT KIT-PROP (3/4-16)
66
F85372
PIN-GEAR SHIFT ROD LOWER
67
F1015
PIN-COTTER
68
819176
RETAINER-SHIFT ROD SEAL
69
F698735-1
SEAL-EXHAUST
70
F694125
COUPLING-DRIVESHAFT
71
818826
Стопорное полукольцо
72
F694128
DRIVESHAFT (20")
72
F693128
DRIVESHAFT (25")
73
F438271
RETAINER-DRIVESHAFT SPLINE SEAL
74
819427
SEAL-DRIVESHAFT SPLINE
75
F694735-1
SEAL-WATERLINE
76
F523244
WATERLINE (20")
76
F500244
WATERLINE (25")
77
817491
Уплотнитель резиновый
78
F84342
SEAL-INLET WATERLINE UPPER
79
F692117
BRACKET-WATERLINE
80
28636
SCREW (1/4-20 X 3/4")
81
19924325
SCREW (5/16-18 X 3-1/4") WITH DRI LOC
82
19928100
SCREW (5/16-18 X 1") WITH DRI LOC
83
F506186
Шайба
84
F523116-4
SNOUT-EXHAUST
85
826377
SCREW (5/16-18 X 3/4") WITH DRI LOC-EXHAUST SNOUT
86
19924100
SCREW (5/16-18 X 1") WITH DRI LOC
87
F1856
Шайба
88
FK1203-1
Комплект сальников
89
FK1204-1
Рем.комплект помпы
90
F707485
ANODE (TYPE B)
91
F1885
SCREW (5/16-18 X 4-1/4") TYPE A
92
12038
WASHER (TYPE A)
93
62702
O RING (TYPE A)
94
F1112
SCREW (1/4-20 X 7/8") TYPE A
95
26992
LOCKWASHER (1/4") TYPE A
96
F694211
STUD (#10 X 1.34") TYPE A
97
F8143
WASHER TYPE A
98
29488
NUT (10-32) TYPE A
99
F694615
ROD-INTERMEDIATE SHIFT TYPE A
100
F523411
RING-RETAINING TYPE A
101
32507
O RING TYPE A
102
F2A523239
SPOOL ASSEMBLY-PROPSHAFT (TYPE A)
103
30956
BEARING-ROLLER (TYPE A)
104
F506118-1
SEAL-PROPSHAFT SPOOL (TYPE A)
105
F24278
SEAL-PROPSHAFT SPOOL (TYPE A)
106
FA523485
ANODE KIT-ANTICORROSION (TYPE A)
107
F523282
WASHER-SPLINED (TYPE A)
108
F8167
WASHER (TYPE A)
109
F694043-2
Гильца
110
F8586
Штифт
111
F1999
SCREW (1/4-20 X 7/8") TYPE A
112
26992
LOCKWASHER (TYPE A)
-
FK719059
SKEG REPAIR KIT
-
F719735-1
SEAL-EXHAUST (NOT ALL MODELS)
-
FK1229
GEAR SET (W/SHIMS) HI-ALTITUDE (2.2:1) (TYPE C & D)
-
FK1203-1
GEAR HOUSING SEAL KIT
-
FK1204-1
Рем.комплект помпы
