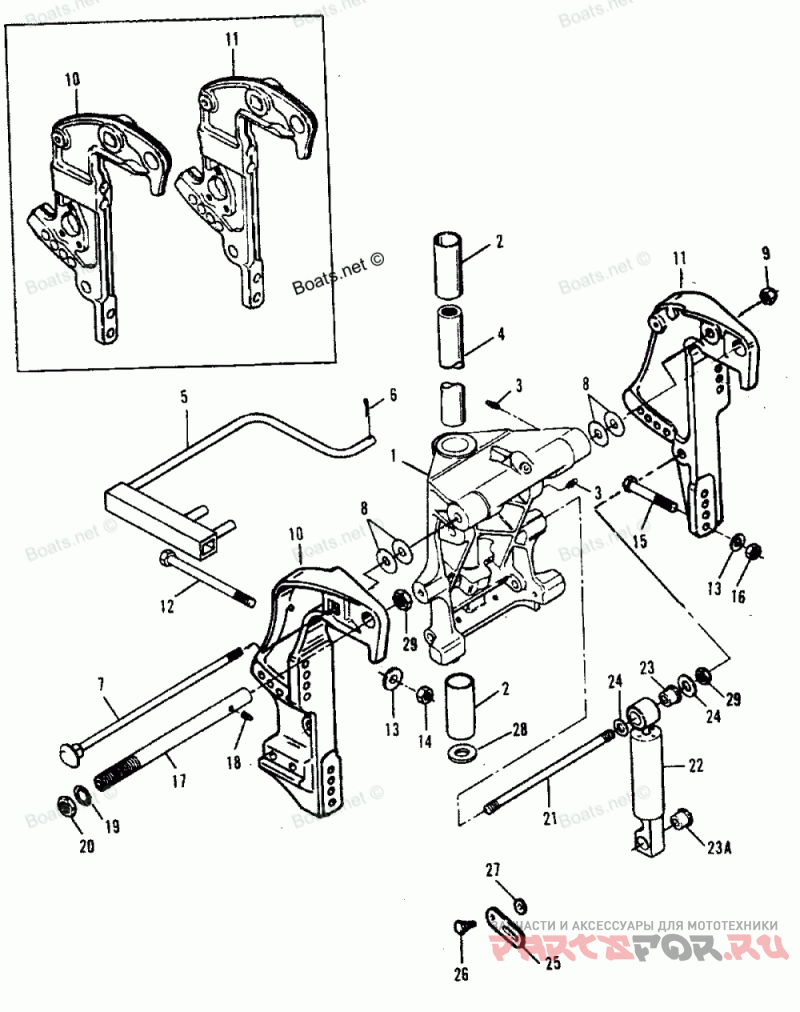

Swivel Bracket-stern Brackets (power Trim)

Force H0908E91E

Force
#oem кодцена
1
817783A5
BRACKET KIT, SWIVEL (PAINTED)
2
819493
BUSHING, SWIVEL BRACKET
3
F213274
FITTING, GREASE
4
FS85019
KINGPIN ASSEMBLY (20")
4
FA500019
KINGPIN ASSEMBLY (25")
5
819504A1
BRACKET KIT, LOCK, TRAILERING
6
F525629
Шплинт
7
F85037-1
BOLT, PIVOT, STERN BRACKET
8
F84286-1
Шайба
9
28040
NUT (1/2-20)
10
820445F
BRACKET, STERN, STBD. 1991E THRU 1992C)
11
820446F
BRACKET, STERN, PORT 1991E THRU 1992C)
10A
819424F
BRACKET, STERN, STBD. 1991E THRU 1992C)
11A
819425F
BRACKET, STERN, PORT 1991E THRU 1992C)
12
F685632
BOLT (1/2-20 X 7") 1991E THRU 1992C)
13
FK684201
WASHER KIT 1991E THRU 1992C)
14
91962
NUT (1/2-20) 1991E THRU 1992C)
15
F2428
SCREW (3/8-16 X 5") 1991E THRU 1992C)
16
86226
NUT (3/8-16) 1991E THRU 1992C)
12
677551
SCREW (1/2-20 X 4-1/2") 1991E THRU 1992C)
13
28421
WASHER 1991E THRU 1992C)
17
818066A3
TUBE ASSEMBLY, STEERING
18
F523274
FITTING, GREASE
19
F316599
O-RING, STEERING TUBE
20
F523280
NUT, STEERING TUBE
21
F449889
SHAFT, UPPER SHOCK
22
FS631962
SHOCK ABSORBER ASSEMBLY (PAINTED)
23
F178344
BUSHING, UPPER
23A
F449362
BUSHING, LOWER
24
F1960
Шайба
25
F694426
STOP, TILT (NOT USED ON ALL MODELS)
26
F85350-1
PIVOT (NOT USED ON ALL MODELS)
27
69150
WASHER (NOT USED ON ALL MODELS)
28
F84011
WASHER, SWIVEL BRACKET
29
35778
NUT (1/2-20)
