Дейвуд

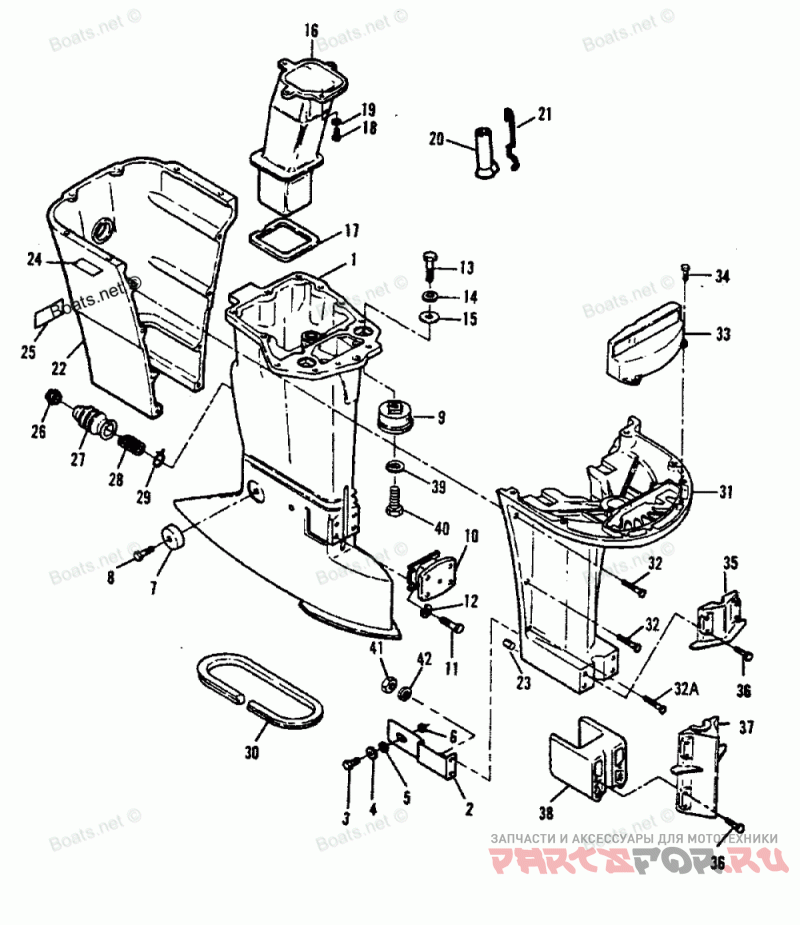

Force H0906X91H

Force
#oem кодцена
1
819432A2
HOUSING KIT, DRIVESHAFT (20")(PAINTED)
1
819433A2
HOUSING KIT, DRIVESHAFT (25")(PAINTED)
2
F720835-1
STRAP, SHOCK MOUNT LOWER
3
826377
SCREW (5/16-18 X 3/4") WITH DRI LOC
4
F513286
Шайба
5
69150
Шайба
6
F720201
Проставка
7
F438962
MOUNT, SHOCK (LOWER)
8
F1263
SCREW (5/16-18 X 9/16")
9
F699965-1
MOUNT, SHOCK (UPPER)
10
F438346
MOUNT, SHOCK (LOWER)
11
F1822
SCREW (5/16-18 X 7/8")
12
53166
LOCKWASHER (5/16")
13
19922075
SCREW (3/8-16 X 3/4") WITH DRI LOC
14
20553
Шайба
15
FA85355-1
WASHER KIT, UPPER SHOCK MOUNT
16
F85660-1
TUBE, EXHAUST
17
F439736
SEAL, EXHAUST TUBE
18
19934075
SCREW (1/4-20 X 3/4") WITH DRI LOC
19
26992
LOCKWASHER (1/4") (FOR SCREWS WITHOUT DRI LOC)
20
816515
STANDPIPE 92A THRU 92C &
21
F686491
CLIP 92A THRU 92C &
22
819317F
COVER (REAR), DRIVESHAFT HOUSING (PAINTED)
23
F1664
Палец
24
F717893
DECAL (SIDE - /) (91E/92C & SER.# E000001, E009499) MAXUM
25
F716374
DECAL (REAR) (91E/92C & SER.# E000001, E009499)
26
816513
INSERT, IDLE EXHAUST BOOT
27
F85130
BOOT, IDLE EXHAUST
28
F85380
SPRING, IDLE EXHAUST BOOT
29
F85772
Зажим
30
F178323
SEAL, DRIVESHAFT HOUSING
31
FK719135F
COVER KIT (FRONT) (PAINTED)
32
F2030
SCREW (1/4-20 X 1-1/4")
32A
F2288
SCREW (1/4-20 X 1-1/2")
33
FK692779
BAFFLE KIT, AIR INTAKE
34
41772
SCREW (10-24 X 1/2")
35
F720606F
CAP, KINGPIN (20") (PAINTED)
36
F2312
SCREW (5/16-18 X 2-1/8")
37
F721606F
CAP, KINGPIN (25") (PAINTED)
38
F631707F
COVER, SHOCK MOUNT (25") (PAINTED)
39
F8140
LOCKWASHER (1/2")
40
826577
SCREW (1/2-13 X 7/8") WITH DRI LOC
41
68292
NUT (5/16-18)
42
53166
LOCKWASHER (5/16")
