Motor Leg для лодочных моторов Force H0903E91D (1991)

Москва и регионы России

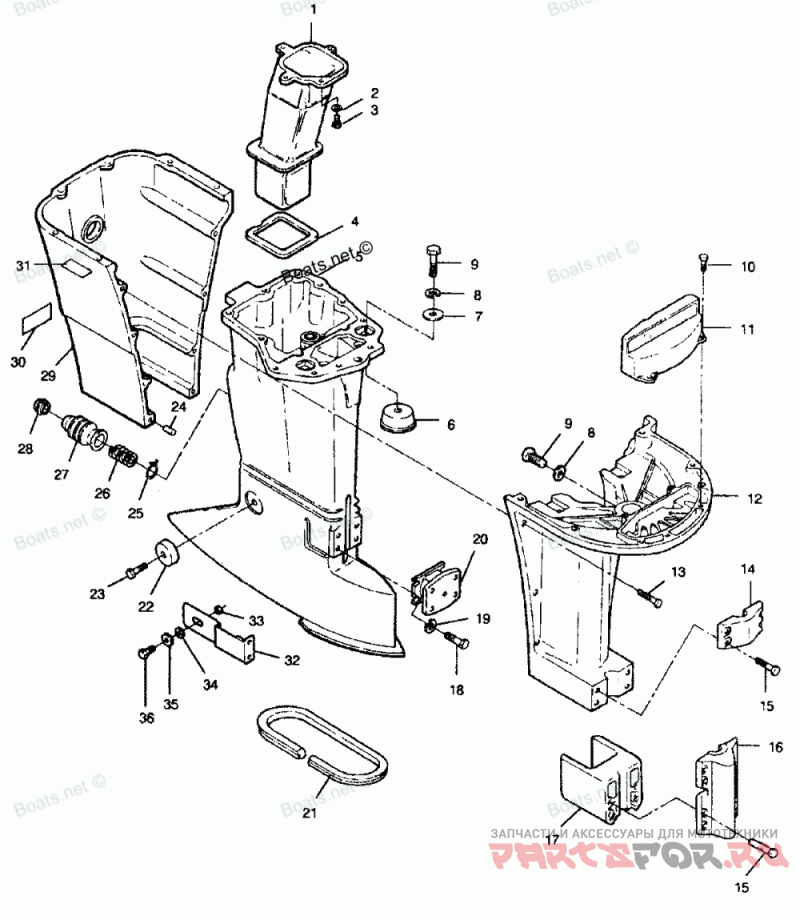

Motor Leg

Force H0903E91D

Motor Leg

#

oem код

название

цена

1

TUBE, LEG EXHAUST

TUBE, LEG EXHAUST

2

SPRING LOCKWASHER

SPRING LOCKWASHER

3

SCREW, 1/4 - 20 X 3/4

SCREW, 1/4 - 20 X 3/4

4

Уплотнение

Уплотнение

5

LEG, MOTOR (20 INCH MODELS)

LEG, MOTOR (20 INCH MODELS)

LEG, MOTOR (25 INCH MODELS)

LEG, MOTOR (25 INCH MODELS)

6

MOUNT, UPPER SHOCK

MOUNT, UPPER SHOCK

7

WASHER SET

WASHER SET

8

Стопорная шайба

Стопорная шайба

9

SCREW, 1/2 - 13 X 7/8

SCREW, 1/2 - 13 X 7/8

10

SCREW, 10 - 24 X 1/2

SCREW, 10 - 24 X 1/2

11

BAFFLE, AIR INTAKE

BAFFLE, AIR INTAKE

12

COVER, FRONT LEG

COVER, FRONT LEG

13

SCREW, 1/4 - 20 X 1-1/4

SCREW, 1/4 - 20 X 1-1/4

14

CAP, KING PIN (2O INCH MODELS)

CAP, KING PIN (2O INCH MODELS)

15

SCREW, 5/16 - 18 X 1-3/4

SCREW, 5/16 - 18 X 1-3/4

16

CAP, KING PIN (25 INCH MODELS)

CAP, KING PIN (25 INCH MODELS)

17

COVER, SHOCK MOUNT LOWER (25 INCH MODELS)

COVER, SHOCK MOUNT LOWER (25 INCH MODELS)

18

SCREW, 5/16 - 18 X 7/8

SCREW, 5/16 - 18 X 7/8

19

Стопорная шайба

Стопорная шайба

20

MOUNT, LOWER SHOCK

MOUNT, LOWER SHOCK

21

Уплотнение

Уплотнение

22

MOUNT, LOWER REAR SHOCK

MOUNT, LOWER REAR SHOCK

23

SCREW, 5/16 - 18 X 9/16

SCREW, 5/16 - 18 X 9/16

24

Пружинный Штифт

Пружинный Штифт

25

Зажим

Зажим

26

Пружина

Пружина

27

BOOT, IDLE EXHAUST

BOOT, IDLE EXHAUST

28

Вставка

Вставка

29

COVER, MOTOR LEG REAR

COVER, MOTOR LEG REAR

30

DECAL, LEG COVER, REAR

DECAL, LEG COVER, REAR

31

DECAL, LEG COVER, SIDE (BAYLINER & MAXUM)

DECAL, LEG COVER, SIDE (BAYLINER & MAXUM)

32

STRAP, LOWER SHOCK MOUNT

STRAP, LOWER SHOCK MOUNT

33

Проставка

Проставка

34

Шайба

Шайба

35

Шайба

Шайба

36

RETAINER, SNOUT

RETAINER, SNOUT
