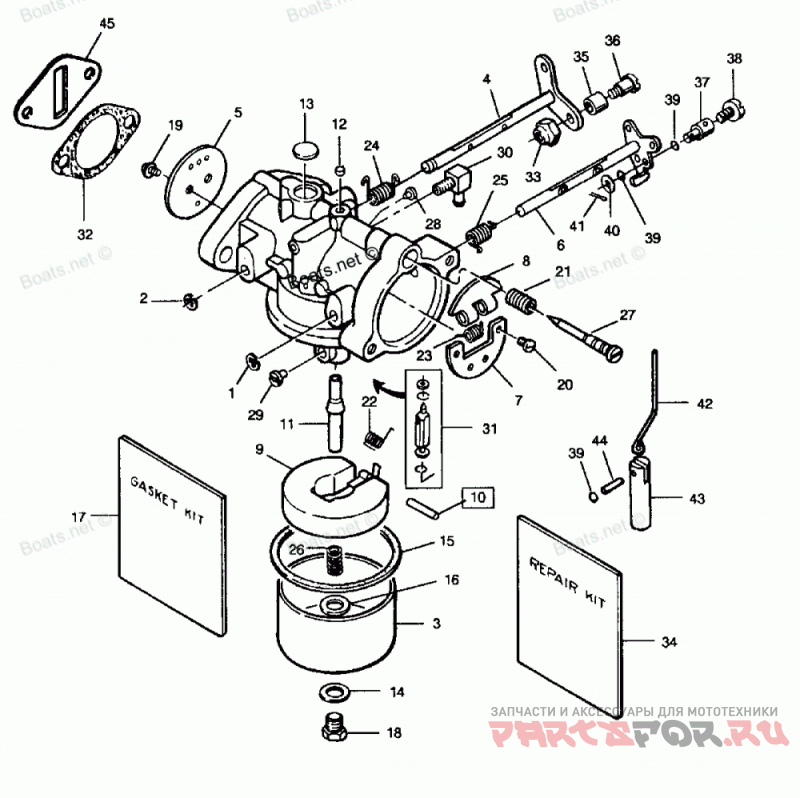

Карбюратор

Force H0256E91B

Force
#oem кодцена
-
F627061-3
CARBURETOR, COMPLETE (WE-16B)
1
F10218
Прокладка
2
FO16620
Прокладка
3
F10127
FUEL BOWL
4
F10132
THROTTLE SHAFT ASSEMBLY
5
F10133
THROTTLE VALVE
6
F10134
CHOKE SHAFT ASSEMBLY
7
FO15725
CHOKE VALVE
8
FO15724
CHOKE RELIEVING VALVE
9
F10135
Поплавок
10
F10208
FLOAT PIN
11
F10258
Наконечник
12
F10152
CUP PLUG
13
F10153
WELCH PLUG
14
F10067
BOWL RETAINER GASKET
15
FO15623
BOWL RING GASKET
16
F10206
BOWL RETAINER GASKET
17
FK10209
GASKET KIT
18
F10205
BOWL RETAINER SCREW
19
F10155
VALVE SCREW
20
F10140
VALVE SCREW
21
F10204
IDLE NEEDLE SPRING
22
F10142
FLOAT SUPPORT SPRING
23
F10130
CHOKE RELIEF SPRING
24
F10143
THROTTLE RETURN SPRING
25
F10144
CHOKE RETURN SPRING
26
10204
NOZZLE SUPPORT SPRING
27
FO14166
IDLE NEEDLE
28
F10163
AIR JET (.060)
29
F10212
MAIN FUEL JET (.074) - SEA LEVEL-2500 FT.
-
F10213
MAIN FUEL JET (.072) - 2500-5000 FT.
-
F10214
MAIN FUEL JET (.070) - 5000-7500 FT.
-
F10215
MAIN FUEL JET (.068) - 7500-10, 000 FT.
30
F10156
FUEL FITTING ELBOW
31
F10234
VALVE SEAT KIT
32
F85906
GASKET, CARBURETOR
33
F1997
STOP NUT, 8 - 32
34
FK10202-1
REPAIR KIT
35
F92759
Ролик
36
F333316
THROTTLE ROLLER SHAFT
37
F184033-1
CHOKE ROD SWIVEL
38
F1059
HEAD SCREW, 6 - 32 X 1/4
39
F184579
Уплотнение
40
F8088
PLAIN WASHER
41
F1014
Шплинт
42
F460925
CHOKE SOLENOID ROD
43
F391926-1
CHOKE SOLENOID PLUNGER
44
F2033
GROOVE PIN
45
F683404
PLATE, CARBURETOR RESTRICTOR
