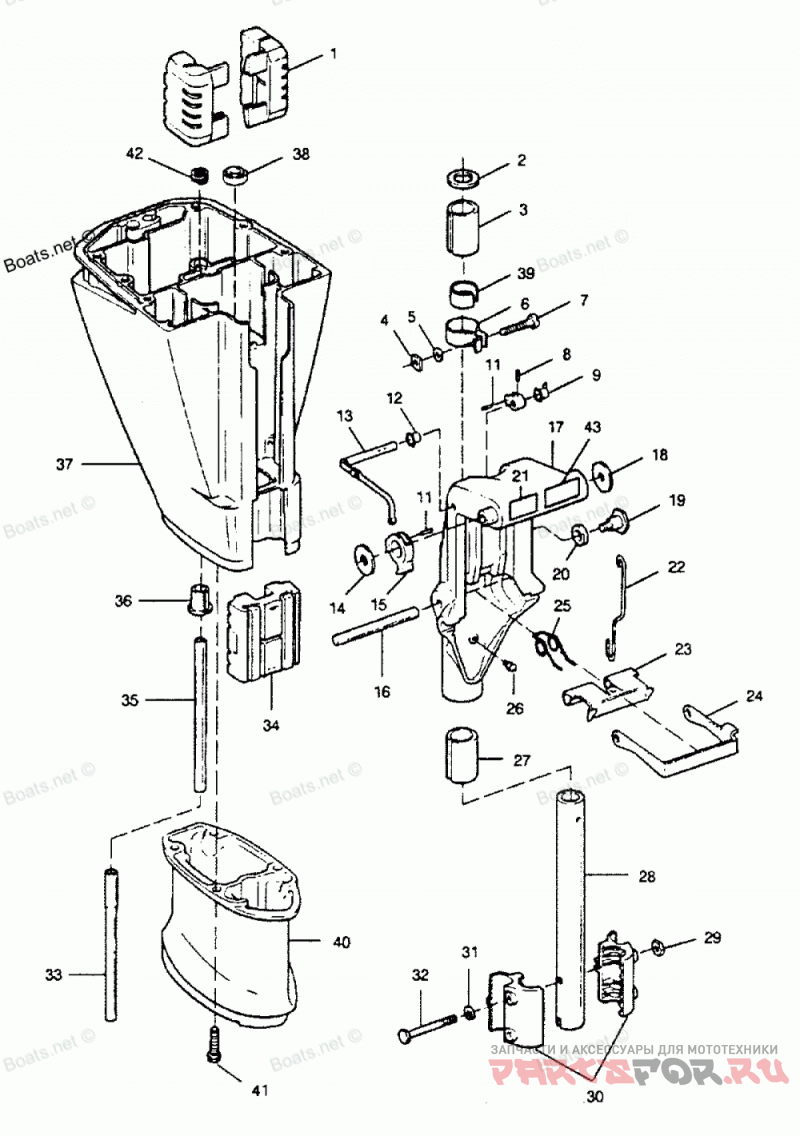

Motor Leg And Swivel Bracket

Force H009CS91A

Force
#oem кодцена
1
286347
MOUNT, UPPER SHOCK
2
286011
WASHER, SWIVEL BRACKET
3
681169
BEARING, SWIVEL BRACKET
4
1608
SQUARE NUT, L/4 - 20
5
1907
Шайба
6
2865731
CLAMP, STEERING FRICTION
7
1820
HEAD SCREW, 1/4 - 20 X 1-3/8
8
8538
Пружинный Штифт
9
197813
Подшипник
10
286364
LEVER, REVERSE LOCK
11
1794
Пружинный Штифт
12
536813
Подшипник
13
A387742
LEVER, REVERSE LOCK INTERMEDIATE
14
525286
Шайба
15
286827
LEVER, REVERSE LOCK
16
1806
GROOVE PIN
17
817750A2
BRACKET, SWIVEL W/GREASE FITTING AND LOWER BEARING
18
2862B61
Шайба
19
2864221
PIVOT, TILT LOCK
20
286451
SPACER, TILT LOCK
21
688585
DECAL, TILT LOCK
22
A341510
LINK, REVERSE LOCK
23
286349
REVERSE LOCK
24
286433
BRACKET, REVERSE LOCK
25
286300
SPRING, REVERSE LOCK
26
213274
FITTING, GREASE
27
286169
BEARING LOWER SWIVEL BRACKET
28
286019
KINGPIN
29
1341
HEX NUT, 1/4 - 20
30
286956
BRACKET, SHOCK MOUNT LOWER
31
8083
SPRING LOCKWASHER
32
A1844
HEX BOLT W/LOCKWASHER, 1/4 - 20 X 2-3/8 S.S.
33
S901244
EXTENSION, WATER LINE(20 INCH TRANSOM MODELS)
34
286346
MOUNT, LOWER SHOCK
35
286244
LINE, WATER
36
286914
SLEEVE, WATER IINE
37
2A477133
LEG, MOTOR
38
9013072
MOTOR LEG
39
681631
SHOE, STEERING FRICTION
40
A492845
EXTENSION, MOTOR LEG (20 INCH TRANSOM MODELS)
41
430732
SCREW, S.S.
42
286414
SPRING, WATER BRACKET
43
70339B
DECAL, FUEL MIX
