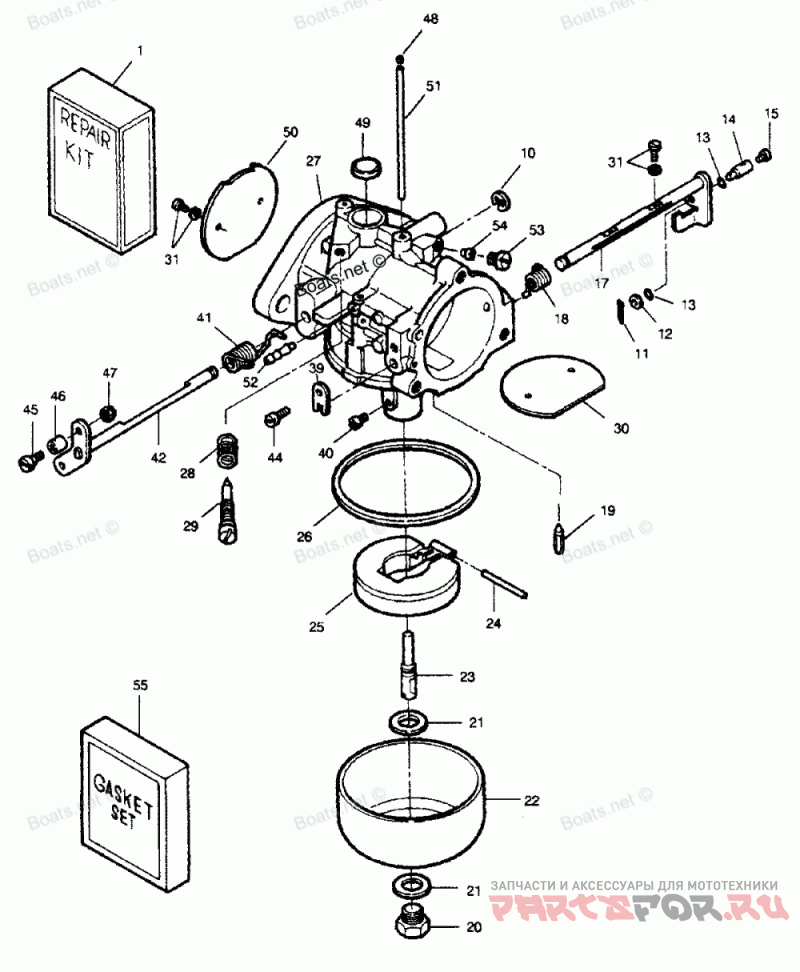

Карбюратор

Force H120LD90C

Force
#oem кодцена
1
FK10288
REPAIR PARTS KIT
10
FO16620
Е-Кольцо
11
F1014
Шплинт
12
F8088
PLAIN WASHER
13
F184579
O-RING SEAL
14
F184033-1
SWIVEL, TOP CARBURETOR
-
F85033
SWIVEL, CHOKE ROD
15
F1059
FILL HD. SCREW, 6 - 32 X 1/4
17
FO16301
CHOKE SHAFT AND LEVER
18
F10285
CHOKE SHAFT RETURN SPRING
19
F10265
INLET NEEDLE
20
FO16132
FUEL BOWL RETAINING SCREW
21
FO5323
FUEL BOWL RETAINING SCREW GASKET
22
FO16130
FUEL BOWL
23
FO16133
MAIN NOZZLE
24
FO13944
FLOAT LEVER PIN
25
FO13554
Поплавок
26
FO15623
FUEL BOWL GASKET
27
F698061-3
CARBURETOR COMPLETE
-
F699061-3
CARBURETOR COMPLETE
28
FO11103
IDLE MIXTURE SCREW SPRING
29
F10268
IDLE MIXTURE SCREW
30
FO17719
SHUTTER
31
F10328
CHOKE AND THROTTLE SHUTTER SCREW
39
FO9678
CLIP, CHOKE SHAFT
40
F10271
MAIN FUEL JET STD. .096 SEA LEVEL - 1500 FT.
-
FO14191
MAIN FUEL JET STD. .094 SEA LEVEL - 1500 FT.
-
FO14190
MAIN FUEL JET (.092) 1500-3000 FT. (BOTTOM CARBURETOR)
-
FO15406
MAIN FUEL JET (.090) 3000-4500 FT. (BOTTOM CARBURETOR)
-
FO13193
MAIN FUEL JET (.088) 4500-6000 FT. (BOTTOM CARBURETOR)
-
FO13949
MAIN FUEL JET (.086) 6000 FEET & UP (BOTTOM CARBURETOR)
41
FO16143
THROTTLE SHAFT RETURN SPRING
42
FO17884
THROTTLE SHAFT AND LEVER
44
F10284
Винт
45
F333316
THROTTLE ROLLER SHAFT
46
F92759
THROTTLE ROLLER
47
F1997
STOP NUT, 8 - 32
48
FO10588
BODY CHANNEL CUP PLUG
49
FO16128
BODY CHANNEL WELCH PLUG
50
FO16142
THROTTLE SHUTTER
51
FO16993
BY-PASS TUBE
52
F10274
Штуцер
53
F10275
SCREW, SEALING
54
F10273
JET (.047)
55
FK10023
Комплет прокладок
