Power Head для лодочных моторов Force H0903F90C (1990)

Москва и регионы России

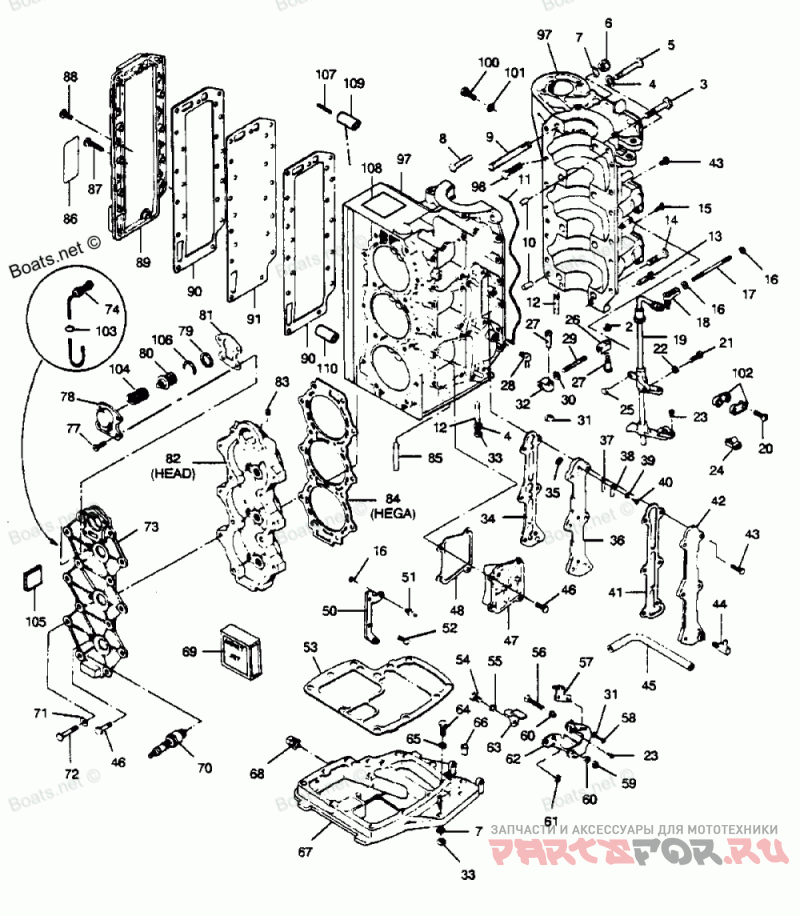

Power Head

Force H0903F90C

Power Head

#

oem код

название

цена

2

LOCK NUT, #10 - 24

LOCK NUT, #10 - 24

3

HEX BOLT, 3/8 - 16 X 2-3/4

HEX BOLT, 3/8 - 16 X 2-3/4

4

PLAIN WASHER

PLAIN WASHER

5

HEX BOLT, 3/8 - 16 X 3

HEX BOLT, 3/8 - 16 X 3

6

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

7

PLAIN WASHER

PLAIN WASHER

8

HEX HD. SCREW, 1/4 - 20 X 3/4

HEX HD. SCREW, 1/4 - 20 X 3/4

9

Шпилька

Шпилька

10

Палец

Палец

11

SEAL, PARTING LINE

SEAL, PARTING LINE

12

STUD, FORWARD

STUD, FORWARD

13

FILL HD. SCREW, 1/4 - 20 X 1-1/4

FILL HD. SCREW, 1/4 - 20 X 1-1/4

14

HEX BOLT, 3/8 - 16 X 1-3/4

HEX BOLT, 3/8 - 16 X 1-3/4

15

HEX CAP SCREW, 1/4 - 20 X 1

HEX CAP SCREW, 1/4 - 20 X 1

16

STOP NUT

STOP NUT

17

THROTTLE LINK

THROTTLE LINK

18

BALL JOINT W/STUD

BALL JOINT W/STUD

19

TOWERSHAFT

TOWERSHAFT

2

FILL HD. SCREW, 10 - 24 X 7/8

FILL HD. SCREW, 10 - 24 X 7/8

12

FILL HD. SCREW, 1/4 - 20 X 1-1/4

FILL HD. SCREW, 1/4 - 20 X 1-1/4

22

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

23

FILL HD. SCREW W/LOCKWASHER 10 - 24 X 3/8

FILL HD. SCREW W/LOCKWASHER 10 - 24 X 3/8

24

SWIVEL W/PIVOT SCREW AND NUT

SWIVEL W/PIVOT SCREW AND NUT

25

PLASTIC RIVET

PLASTIC RIVET

26

TOWERSHAFT CONTROL ROD END

TOWERSHAFT CONTROL ROD END

27

SWIVEL

SWIVEL

28

Колено

Колено

29

ROD, SPARK CONTROL

ROD, SPARK CONTROL

30

HEX NUT, 1/4 - 28

HEX NUT, 1/4 - 28

3

PLAIN WASHER

PLAIN WASHER

32

ROD END, CONTROL ROD TO TRIGGER

ROD END, CONTROL ROD TO TRIGGER

33

STOP NUT, 3/18 - 16

STOP NUT, 3/18 - 16

34

GASKET, CYLINDER DRAIN REED PLATE

GASKET, CYLINDER DRAIN REED PLATE

35

Водозаборная решетка

Водозаборная решетка

36

CYLINDER, DRAIN REED PLATE

CYLINDER, DRAIN REED PLATE

37

REED

REED

38

REED STOP

REED STOP

39

PLAIN WASHER

PLAIN WASHER

40

PAN HD. SCREW, 4 - 40 X 3/16

PAN HD. SCREW, 4 - 40 X 3/16

41

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

42

CYLINDER DRAIN COVER

CYLINDER DRAIN COVER

43

HEX HD. SCREW, 1/4 - 20 X 1

HEX HD. SCREW, 1/4 - 20 X 1

44

Фитинг

Фитинг

45

Шланг

Шланг

46

HEX HD. SCREW, 1/4 - 20 X 5/8

HEX HD. SCREW, 1/4 - 20 X 5/8

47

TRANSFER PORT COVER

TRANSFER PORT COVER

48

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

50

BRACKET, REMOTE CABLE

BRACKET, REMOTE CABLE

51

ROD END CONNECTOR STUD

ROD END CONNECTOR STUD

52

HEX HD. SCREW, 1/4 - 20 X 3/4

HEX HD. SCREW, 1/4 - 20 X 3/4

53

CYLINDER EXHAUST GASKET, UPPER

CYLINDER EXHAUST GASKET, UPPER

54

Винт

Винт

55

Подшипник

Подшипник

56

HEX BOLT, 5/16 - 18 X 4-1/4

HEX BOLT, 5/16 - 18 X 4-1/4

57

CAM, STARTER INTERLOCK

CAM, STARTER INTERLOCK

58

SLOTTED PAN HD. MACHINE SCREW, 10 - 24 X 5/16

SLOTTED PAN HD. MACHINE SCREW, 10 - 24 X 5/16

59

STOP NUT, 5/16 - 18

STOP NUT, 5/16 - 18

60

Подшипник

Подшипник

61

STOP NUT, 1/4 - 20

STOP NUT, 1/4 - 20

62

GEAR SHIFT ARM

GEAR SHIFT ARM

63

INTERLOCK ARM

INTERLOCK ARM

64

HEX BOLT, 3/8 - 16 X 1-1/4

HEX BOLT, 3/8 - 16 X 1-1/4

65

SPRING LOCKWASHER

SPRING LOCKWASHER

66

BEARING, TOWERSHAFT

BEARING, TOWERSHAFT

67

SPACER PLATE

SPACER PLATE

68

Заглушка

Заглушка

69

Комплет прокладок

Комплет прокладок

-

TRANSFER PORT COVER GASKET

TRANSFER PORT COVER GASKET

-

Уплотнение

Уплотнение

-

CRANKCASE SEAL

CRANKCASE SEAL

-

EXHAUST PORT PLATE GASKET

EXHAUST PORT PLATE GASKET

-

MANIFOLD GASKET

MANIFOLD GASKET

-

CARBURETOR ADAPTER FLANGE GASKET

CARBURETOR ADAPTER FLANGE GASKET

-

CYLINDER, EXHAUST - UPPER GASKET

CYLINDER, EXHAUST - UPPER GASKET

-

CYLINDER DRAIN COVER GASKET

CYLINDER DRAIN COVER GASKET

-

CYLINDER DRAIN REED PLATE GASKET

CYLINDER DRAIN REED PLATE GASKET

-

BY-PASS VALVE GASKET

BY-PASS VALVE GASKET

-

CARBURETOR GASKET

CARBURETOR GASKET

-

Прокладка головки блока цилиндров

Прокладка головки блока цилиндров

-

THERMOSTAT COVER GASKET

THERMOSTAT COVER GASKET

-

INTAKE GASKET

INTAKE GASKET

70

SPARK PLUG (CHAMPION UL-18-V)

SPARK PLUG (CHAMPION UL-18-V)

71

PLAIN WASHER

PLAIN WASHER

72

HEX BOLT, 5/16 - 18 X 2-3/8

HEX BOLT, 5/16 - 18 X 2-3/8

73

Крышка головки цилиндра

Крышка головки цилиндра

74

THERMOSWITCH

THERMOSWITCH

77

FILL HD. SCREW, 1/4 - 20 X 5/8

FILL HD. SCREW, 1/4 - 20 X 5/8

78

Крышка термостата

Крышка термостата

79

Уплотнение

Уплотнение

80

THERMOSTAT (130eF)

THERMOSTAT (130eF)

81

GASKET, THERMOSTAT COVER

GASKET, THERMOSTAT COVER

82

Головка цилиндров

Головка цилиндров

83

Заглушка

Заглушка

84

Прокладка

Прокладка

85

STUD, REAR

STUD, REAR

86

DECAL, WIRING

DECAL, WIRING

87

HEX HD. SCREW, 1/4 - 20 X 1-1/8

HEX HD. SCREW, 1/4 - 20 X 1-1/8

88

HEX HD. SCREW, 1/4 - 20 X 7/8

HEX HD. SCREW, 1/4 - 20 X 7/8

89

COVER, EXHAUST PORT

COVER, EXHAUST PORT

90

GASKET, EXHAUST PORT PLATE

GASKET, EXHAUST PORT PLATE

91

PLATE, EXHAUST PORT

PLATE, EXHAUST PORT

97

CYLINDER W/COVER

CYLINDER W/COVER

-

SHORT BLOCK (NOT SHOWN)

SHORT BLOCK (NOT SHOWN)

98

HEX CAP SCREW, 1/4 - 20 X 7/8

HEX CAP SCREW, 1/4 - 20 X 7/8

100

HEX CAP SCREW, 5/16 - 18 X 3/4

HEX CAP SCREW, 5/16 - 18 X 3/4

101

SPRING LOCKWASHER

SPRING LOCKWASHER

102

BEARING TOWERSHAFT LOWER

BEARING TOWERSHAFT LOWER

103

RETAINER, THERMOSWITCH

RETAINER, THERMOSWITCH

104

SPRING, THERMOSTAT

SPRING, THERMOSTAT

105

MEDALLION, "US MARINE"

MEDALLION, "US MARINE"

106

SPACER, THERMOSTAT SEAL

SPACER, THERMOSTAT SEAL

107

PIN, WATER JACKET TUBE

PIN, WATER JACKET TUBE

108

DECAL, WIRING

DECAL, WIRING

109

TUBE, WATER JACKET TOP

TUBE, WATER JACKET TOP

110

TUBE, WATER JACKET

TUBE, WATER JACKET
