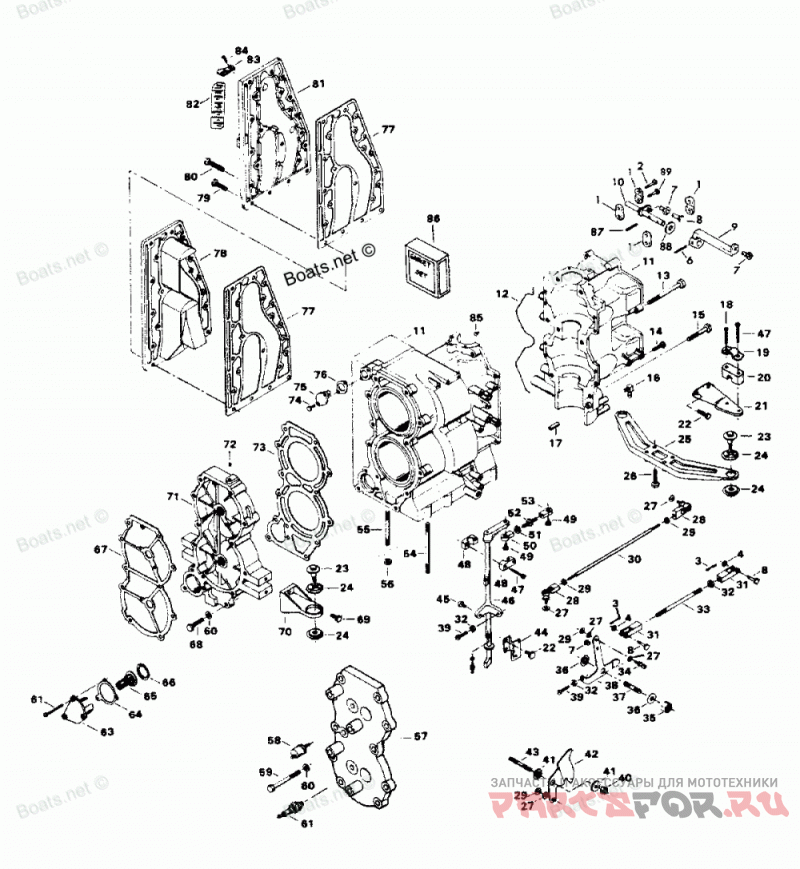

Power Head

Force H0601F89A

Force
#oem кодцена
1
FA607689
Подшипник
2
F1829
SLOTTED FILL HD SCREW, 10 - 24 X 7/8
3
F1017
Шплинт
4
F8094
PLAIN WASHER
5
F1804
STOP NUT #10-32
6
F8547
Пружинный Штифт
7
F183818
BEARING, GEAR SHIFT COUPLER
8
F474620
PIN, GEAR SHIFT
9
F474621
LEVER, GEAR SHIFT
10
FA607876
SHAFT, GEAR SHIFT
11
817860A1
CYLINDER W/ CRANKCASE COVER
-
817911A1
SHORT BLOCK (NOT SHOWN).
12
F269122-1
CRANKCASE PARTING LINE SEAL
13
F1873
HEX CAP SCREW, 3/8 - 16 X 3
14
F1864
HEX HD SCREW, 1/4 - 20 X 3/4
15
F1872
HEX CAP SCREW, 3/8 - 16 X 1 3/4
16
817740A1
FITTING, PUDDLE DRAIN W/ METERING CAP
17
F8563
Палец
18
F1829
SLOTTED FILL HD SCREW, 10 - 24 X 7/8
19
F154317
Кабельный Зажим
20
F474932
SPACER, CONTROL CABLE
21
F474371
REMOTE CABLE BRACKET
22
F1922
HEX CAP SCREW, 1/4 - 20 X 5/8
23
F458887
FASTENER, SUPPORT PLATE MOUNT
24
F458347
MOUNT
25
F474980-1
STABILIZER, FRONT
26
F2071
HEX CAP SCREW, 5/16 - 18 X 1 3/8
27
F8058
INTERNAL TOOTH LOCKWASHER
28
8177471
BALL JOINT W/ BEARING
29
F1513
HEX NUT, 10 - 32
30
F474193
THROTTLE LINK
31
F474704
Муфта сцепления
32
F1341
HEX NUT, 1/4 - 20
33
F474881
LINK, GEAR SHIFT
34
F98273
ROD END CONNECTOR STUD
35
F7025
STOP NUT, S.S., 3/8 - 16
36
F269052
SHIFT ARM BEARING
37
F474859
STUD, SHIFT ARM
38
F522876
SHIFT ARM
39
F1052
FILL HD M. SCREW, 1/4 - 20 X 1
40
F7008
ELASTIC STOP NUT, 1/4 - 20
41
F269319
THROTTLE CAM BEARING
42
F474192
THROTTLE CAM
43
F433209-1
STUD, THROTTLE CAM
44
F474551
BRACKET, INTERLOCK SWITCH
45
F1727
PLASTIC RIVET
46
F474838-1
TOWERSHAFT
47
F1995
FILL HD SCREW, 10 - 24 X 1
48
F433689
TOWERSHAFT
49
F84026
SPARK CONTROL SWIVEL
50
F84035-2
SPARK CONTROL BEARING, R.H.
51
F1473
HEX NUT, 10 - 24
52
F474445
SPARK CONTROL LINK
53
F84036
SPARK CONTROL BEARING, L.H.
54
F474211
STUD, CYLINDER
55
F474210
STUD, CYLINDER
56
F7006
LOCK NUT, 5/16 - 18
57
F522995
CYLINDER HEAD COVER
59
F2049
HEX CAP SCREW, 5/16 - 18 X 2 5/8
60
F1987
PLAIN WASHER
61
97180
SPARK PLUG (L-20V) - USA
62
F2051
HEX CAP SCREW, 1/4 - 20 X 2 1/4
63
F474066
Крышка термостата
64
F474067
THERMOSTAT COVER GASKET
65
F84068-2
Термостат
66
F84504
THERMOSTAT GROMMET
67
F474996-1
CYLINDER HEAD COVER GASKET
68
F2076
HEX CAP SCREW, 5/16 - 18 X 1 1/8
69
F1902
HEX CAP SCREW, 5/16 - 18 X 3/4
70
F474982
STABILIZER, REAR
71
FA547518
Головка цилиндра
72
F19109
PLUG, CYLINDER HEAD
73
F474529-1
Прокладка головки блока цилиндров
74
F1913
HEX CAP SCREW, 10 - 24 X 5/8
75
F438066
COVER, BY-PASS VALVE
76
F85762
GASKET, BY-PASS VALVE COVER
77
F474154
EXHAUST PORT PLATE GASKET
78
F474151
EXHAUST PORT PLATE
79
F1532
HEX CAP SCREW, 1/4 - 20 X 1
80
F1581
HEX CAP SCREW, 1/4 - 20 X 1 1/4
81
F474152
EXHAUST PORT COVER
82
FC474398
DECAL, WIRING
83
F289446-1
Зажим
84
F1734
SLOTTED FILL HD SCREW & LOCKWASHER, 1/4 - 20 X 1/2
85
F474909
LOCATING PIN
86
FG1013-1
Комплет прокладок
-
F40906-1
CARBURETOR GASKET
-
F85168-1
REED PLATE ADAPTER GASKET
-
F85762
BY-PASS VALVE COVER GASKET
-
F474067
THERMOSTAT COVER GASKET
-
F474154
EXHAUST PORT COVER GASKET
-
F474168
CARBURETOR ADAPTER GASKET
-
F474279
CYLINDER EXHAUST GASKET
-
F474529-1
Прокладка головки блока цилиндров
-
F474867
EXHAUST TUBE GASKET
-
F474996-1
CYLINDER HEAD COVER GASKET
-
F522279
CYLINDER EXHAUST GASKET
-
F522867
EXHAUST TUBE GASKET
87
F1978
Пружинный Штифт
88
F1856
PLAIN WASHER
89
F1648
PAN HD MACHINE SCREW, 10 - 24 X 3/4
