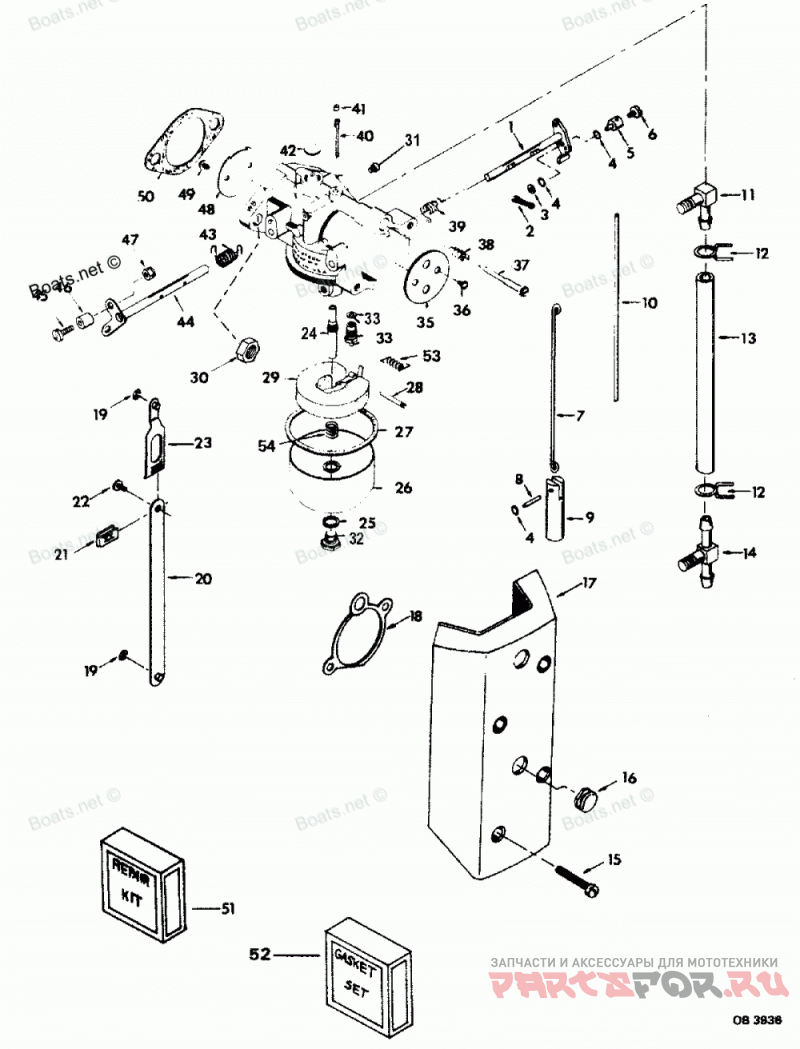

Карбюратор

Force H0601F89A

Force
#oem кодцена
1
F10219
CHOKE SHAFT AND LEVER
2
F1014
Шплинт
3
F8088
PLAIN WASHER
4
F184579
SEAL, CHOKE ARM SWIVEL
5
F184033-1
SWIVEL, CHOKE ROD
-
F522033
SWIVEL, CHOKE ROD FOR TOP CARB (NOT SHOWN)
6
F1059
FILL HD SCREW, 6 - 32 X 1/4
7
F85925
CHOKE SOLENOID ROD
8
F2033
GROOVE PIN
9
F391926-1
PLUNGER, CHOKE SOLENOID
10
F474509
CHOKE LINK
11
F10156
ELBOW, FUEL LINE
12
F97772
Зажим
13
F474253
Трубопровод
14
F10164
ELBOW, FUEL LINE FOR BOTTOM CARB.
15
F1034
FILL HD SCREW, 1/4 - 20 X 1 3/8
16
F53504
Уплотнитель резиновый
17
F522826
SILENCER, CARB AIR
18
F481836
Прокладка
19
F90807
Стопорное кольцо
20
FA474511
TIE BAR W/ SWIVEL
21
F1693
TIE BAR RETAINER
22
F1064
SLOTTED HD SCREW, 8 - 32 X 3/8
23
FA85193
TIE BAR END W/ SWIVEL
24
FOB10137
Наконечник
25
F10090
GASKET, FUEL BOWL RETAINING SCREW
26
F10127
FUEL BOWL
27
F10138
FUEL BOWL GASKET
28
F10136
FLOAT LEVER PIN
29
F10135
Поплавок
31
FO15339
JET-.054 (VENT)
32
F10173
MAIN FUEL JET (.074) STD. SEA LEVEL TO 2500 FT.
-
F10147
MAIN FUEL JET (.072) OPT. 2500 - 5000 FT.
-
F10184
MAIN FUEL JET (.070) OPT. 5000 - 7500 FT.
-
F10183
MAIN FUEL JET (.068) OPT. 7500 - 10000 FT.
33
FK10120-1
INLET NEEDLE, SEAT AND GASKET
35
F10161
CHOKE SHUTTER
36
F10155
SHUTTER SCREW W/ LOCKWASHER
37
FO14166
IDLE SCREW
38
F10141
IDLE SCREW SPRING
39
F10143
CHOKE SHAFT RETURN SPRING
40
F10176
IDLE TUBE
41
F10152
BODY CHANNEL CUP PLUG
42
F10153
BODY CHANNEL WELCH PLUG
43
F10172
THROTTLE SHAFT RETURN SPRING
44
F10168
THROTTLE SHAFT AND LEVER
45
F333316
THROTTLE ROLLER SHAFT
46
F92759
THROTTLE ROLLER
47
F1997
LOCK NUT, 8 - 32
48
F10169
THROTTLE SHUTTER
49
F10155
THROTTLE SHUTTER SCREW W/ LOCKWASHER
50
F40906-1
CARBURETOR GASKET
-
FK607061
CARBURETOR COMPLETE, TOP (WE 7-1)
-
FK608061
CARBURETOR COMPLETE, BOTTOM (WE 7-2)
51
FK10228
REPAIR PARTS KIT.
52
FK10139
GASKET SET.
53
F10142
SPRING, FLOAT SUPPORT
54
F10145
SPRING, NOZZLE
