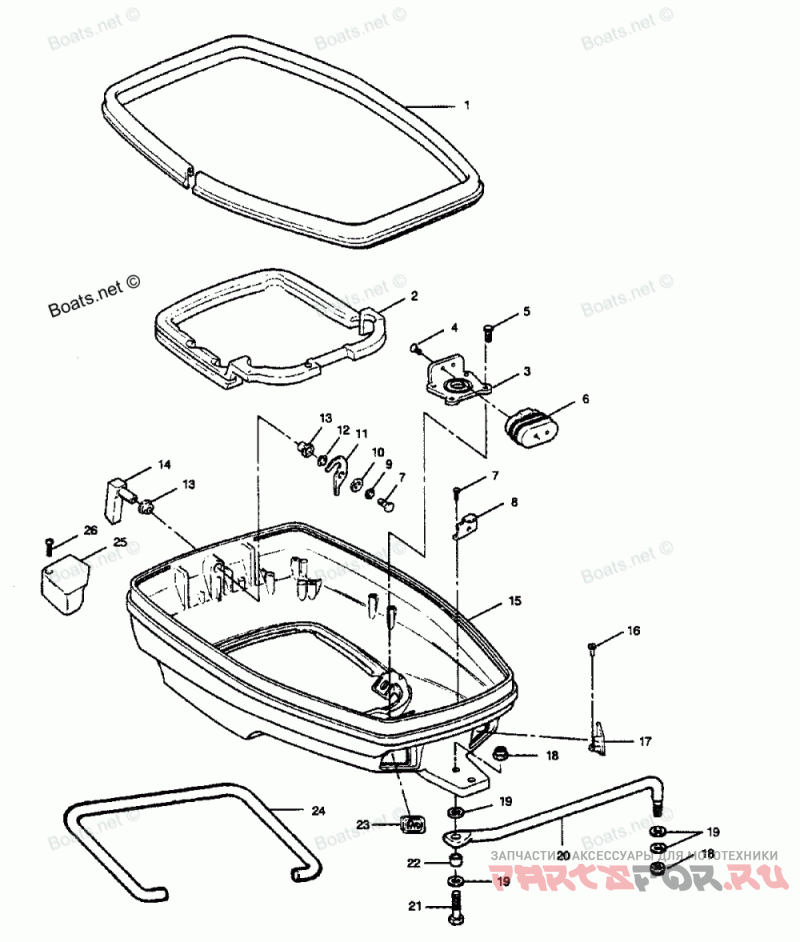

Support Plate

Force H0507G89D

Force
#oem кодцена
1
F684756-1
PACKING, SUPPORT PLATE
2
F684989
SEAL, SUPPORT PLATE
3
F683354
BRACKET, UPPER MOUNT
4
F1211
HEX HEAD MACHINE SCREW, 1/4 - 28 X 5/8
5
F1532
HEX HEAD SCREW, 1/4 - 20 X 1
6
F203965
MOUNT, UPPER SHOCK
7
F1854
HEX CAP SCREW, 1/4 - 20 X 5/8
8
F663480-1
RETAINER, ENGINE COVER
9
F8083
Стопорная шайба
10
F8094
Шайба
11
F481777
CAM, LATCH SHAFT
12
F2047
Упругая Шайба
13
F286818
BEARING, LATCH SHAFT
14
FA663469
ENGINE COVER LATCH HANDLE W/SHAFT
15
F684038-1
PLATE, SUPPORT
16
F1733
PAN HEAD SCREW, 10 - 24 X 9/16 S.S.
17
F549189-1
BUSHING, ELECTRIC CABLE ENTRY
18
F2093
STOP NUT
19
F8083
Шайба
20
F5H141
STEERING LINK KIT
21
F2073
HEX HEAD CAP SCREW, 3/8 - 24 X 1-5/8
22
F522359
SPACER, STEERING LINK
23
F660189
BUSHING, CABLE ENTRY
24
F5H084
TRAILERING TILT LOCK
25
F684408
COVER, STARTER RELAY
26
F1979
SCREW, 10 - 24 X 1/2
