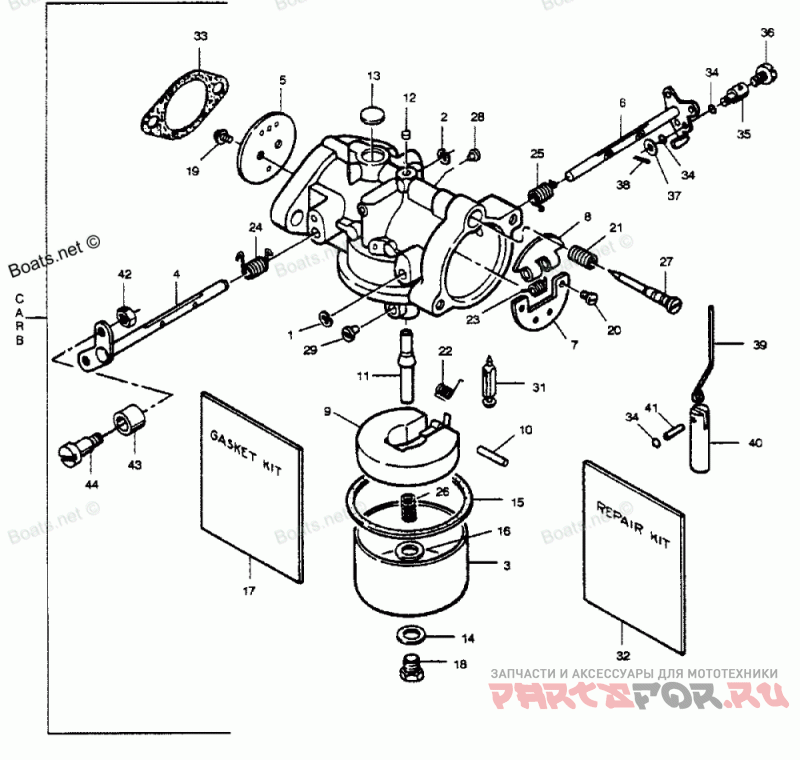

Карбюратор

Force H0505C89B

Force
#oem кодцена
-
F684061
CARBURETOR ASSEMBLY (WE-17C)
1
F10218
RING, SHAFT RETAINER
2
FO16620
RING, SHAFT RETAINER
3
F10127
BOWL, FUEL
4
F10193
SHAFT, THROTTLE
5
F10207
Клапан
6
F10159
SHAFT, CHOKE
7
F10128
VALVE, CHOKE
8
F10129
VALVE, CHOKE RELIEVING
9
F10135
FLOAT ASSEMBLY
10
F10208
PIN, FLOAT ASSEMBLY
11
F10137
Наконечник
12
F10152
CUP PLUG
13
F10153
WELCH PLUG
14
F10067
GASKET, BOWL RETAINER
15
FO15623
GASKET, BOWL RING
16
F10206
GASKET, BOWL RETAINER
17
FK10209
GASKET KIT.
18
F10205
SCREW, BOWL RETAINER
19
F10155
SCREW, VALVE
20
F10140
SCREW, VALVE
21
F10141
SPRING, IDLE NEEDLE
22
F10142
SPRING, FLOAT SUPPORT
23
F10130
SPRING, CHOKE VALVE
24
F10192
SPRING, THROTTLE RETURN
25
F10191
SPRING, CHOKE RETURN
26
F10204
SPRING, NOZZLE
27
FO14166
NEEDLE, IDLE
28
F10197
JET (.046)
29
FO13193
MAIN FUEL JET (.088)
-
FO13949
JET SIZE (.086) 2500-5000 FT.
-
F10229
JET SIZE (.084) 5000-7500 FT.
-
F10230
JET SIZE (.082) 7500-10, 000 FT.
31
851903A1
FLOAT KIT, VALVE
32
FK10102-1
REPAIR KIT.
33
F85906
GASKET, CARBURETOR
34
F184579
SEAL, CHOKE ARM SWIVEL
35
F184033-1
SWIVEL, CHOKE ROD
36
F1059
FILL HD SCREW 6 - 32 X 1/4
37
F8088
PLAIN WASHER
38
F1014
Шплинт
39
F452925
ROD, CHOKE SOLENOID
40
F391926-1
PLUNGER, CHOKE SOLENOID
41
F2033
PIN, GROOVE
42
F1997
STOP NUT 8 - 32
43
F92759
Ролик
44
F333316
SHAFT, THROTTLE ROLLER
