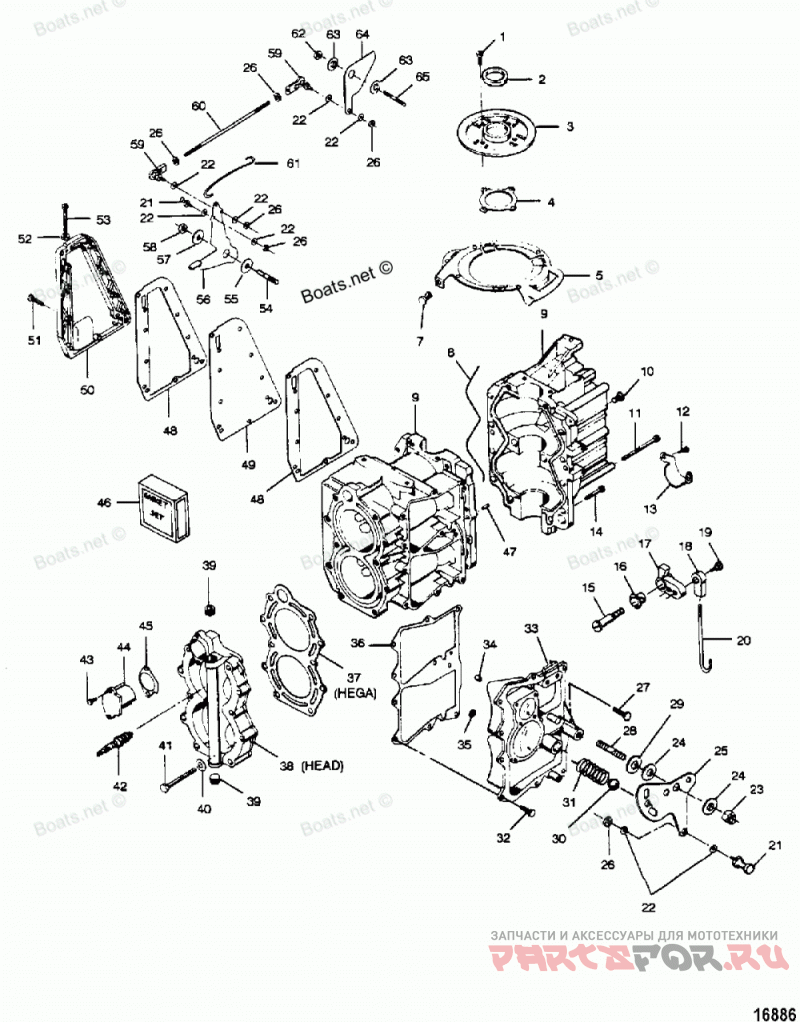

Power Head

Force H0357F89A

Power Head

#

oem код

название

цена

1

SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)

2

SEAL, Crankshaft Upper Main

SEAL, Crankshaft Upper Main

3

CRANKSHAFT BEARING CAGE

CRANKSHAFT BEARING CAGE

1

GASKET, Crankshaft Bearing Cage

GASKET, Crankshaft Bearing Cage

5

MAGNETO STATOR RING

MAGNETO STATOR RING

7

Заклёпка

Заклёпка

8

SEAL, Crankcase Parting Line

SEAL, Crankcase Parting Line

9

CYLINDER W/CRANKCASE COVER

CYLINDER W/CRANKCASE COVER

9

Силовой агрегат без навесного оборудования, коллекторов, маховика, поддона и головки блока цилиндров

Силовой агрегат без навесного оборудования, коллекторов, маховика, поддона и головки блока цилиндров

10

SCREW (.250-20 x .750)

SCREW (.250-20 x .750)

11

HEX SOCKET HD CAP SCREW (.3125-18 x 2.75)

HEX SOCKET HD CAP SCREW (.3125-18 x 2.75)

12

SCREW (.250-20 x .500)

SCREW (.250-20 x .500)

13

CLAMP, Solenoid For Electric Start

CLAMP, Solenoid For Electric Start

14

HEX SOCKET HD CAP SCREW (.3125-18 x 2.75)

HEX SOCKET HD CAP SCREW (.3125-18 x 2.75)

15

SWIVEL, Shift Interlock Lever

SWIVEL, Shift Interlock Lever

16

Подшипник

Подшипник

17

LEVER SHIFT INTERLOCK

LEVER SHIFT INTERLOCK

18

BEARING, Shift Interlock Rod

BEARING, Shift Interlock Rod

19

SWIVEL, Shift Interlock Bearing

SWIVEL, Shift Interlock Bearing

20

ROD, Shift Interlock

ROD, Shift Interlock

21

Шпилька

Шпилька

22

LOCKWASHER, (#10 Internal)

LOCKWASHER, (#10 Internal)

23

NUT STOP (.375-16)

NUT STOP (.375-16)

24

Подшипник

Подшипник

25

LEVER, Gear Shift

LEVER, Gear Shift

26

NUT (#10-32)

NUT (#10-32)

27

HEX HD SCREW (.250-20 x .625)

HEX HD SCREW (.250-20 x .625)

28

CARBURETOR STUD, Gear Shift Lever

CARBURETOR STUD, Gear Shift Lever

29

Шайба

Шайба

30

BALL, Shift Lever Detent

BALL, Shift Lever Detent

31

SPRING, Shift Detent

SPRING, Shift Detent

32

HEX HD SCREW (.250-20 x .625)

HEX HD SCREW (.250-20 x .625)

33

TRANSFER PORT COVER

TRANSFER PORT COVER

34

VALVE CHECK W/LITERATURE

VALVE CHECK W/LITERATURE

35

SCREEN, Cylinder Drain

SCREEN, Cylinder Drain

36

GASKET, Transfer Port Cover

GASKET, Transfer Port Cover

37

Прокладка

Прокладка

38

Головка цилиндра

Головка цилиндра

39

PLUG, Cylinder Head

PLUG, Cylinder Head

40

PLAIN WASHER (Electric Start)

PLAIN WASHER (Electric Start)

41

SCREW, Cylinder Head

SCREW, Cylinder Head

42

SPARK PLUG (L82C)

SPARK PLUG (L82C)

42

NOT SOLD SEPARATE, Spark Plug (Champion QL-77-J4) For Canada (Obtain Locally)

NOT SOLD SEPARATE, Spark Plug (Champion QL-77-J4) For Canada (Obtain Locally)

43

HEX CAP SCREW (.250-20 x .625)

HEX CAP SCREW (.250-20 x .625)

44

Крышка термостата

Крышка термостата

45

GASKET, Thermostat Cover

GASKET, Thermostat Cover

46

Комплет прокладок

Комплет прокладок

--

GASKET, Fuel Pump Vavlve

GASKET, Fuel Pump Vavlve

--

GASKET, Carburetor Adapter

GASKET, Carburetor Adapter

--

GASKET, Delector Plate

GASKET, Delector Plate

--

GASKET, Fuel Pump Bowl

GASKET, Fuel Pump Bowl

--

Прокладка

Прокладка

--

GASKET, Thermostat Cover

GASKET, Thermostat Cover

--

GASKET, Exhaust Port Plate

GASKET, Exhaust Port Plate

--

GASKET, Transer Port Cover

GASKET, Transer Port Cover

--

GASKET, Crankshaft Bearing Cage

GASKET, Crankshaft Bearing Cage

--

GASKET, Cylinder Exhaust

GASKET, Cylinder Exhaust

--

GASKET, Leg Exhaust

GASKET, Leg Exhaust

--

Прокладка

Прокладка

--

GASKET, Carburetor

GASKET, Carburetor

--

GASKET, Cylinder Exhaust

GASKET, Cylinder Exhaust

47

Штифт

Штифт

48

GASKET, Exhaust Port Plate

GASKET, Exhaust Port Plate

49

EXHAUST PORT PLATE

EXHAUST PORT PLATE

50

EXHAUST PORT COVER

EXHAUST PORT COVER

51

HEX HEAD SCREW, (.250-20 x 1.00)

HEX HEAD SCREW, (.250-20 x 1.00)

52

Гайка

Гайка

53

SCREW, Fill Head (.250-20 x 1.75)

SCREW, Fill Head (.250-20 x 1.75)

54

STUD, Magneto Control Lever

STUD, Magneto Control Lever

55

BEARING-CONTROL LEVER

BEARING-CONTROL LEVER

56

MAGNETO CONTROL LEVER

MAGNETO CONTROL LEVER

57

Шайба

Шайба

58

STOP NUT

STOP NUT

59

BALL JOINT W/BEARING, Ball Assembly

BALL JOINT W/BEARING, Ball Assembly

60

ROD, Throttle Cam

ROD, Throttle Cam

61

LINK, Magneto Starter

LINK, Magneto Starter

62

STOP NUT

STOP NUT

63

BEARING, Throttle Cam

BEARING, Throttle Cam

64

THROTTLE CAM

THROTTLE CAM

65

STUD, (.250-20 x 1.00), Throttle Cam

STUD, (.250-20 x 1.00), Throttle Cam
