Gear Housing для лодочных моторов Force H0355D89A (1989)

Москва и регионы России

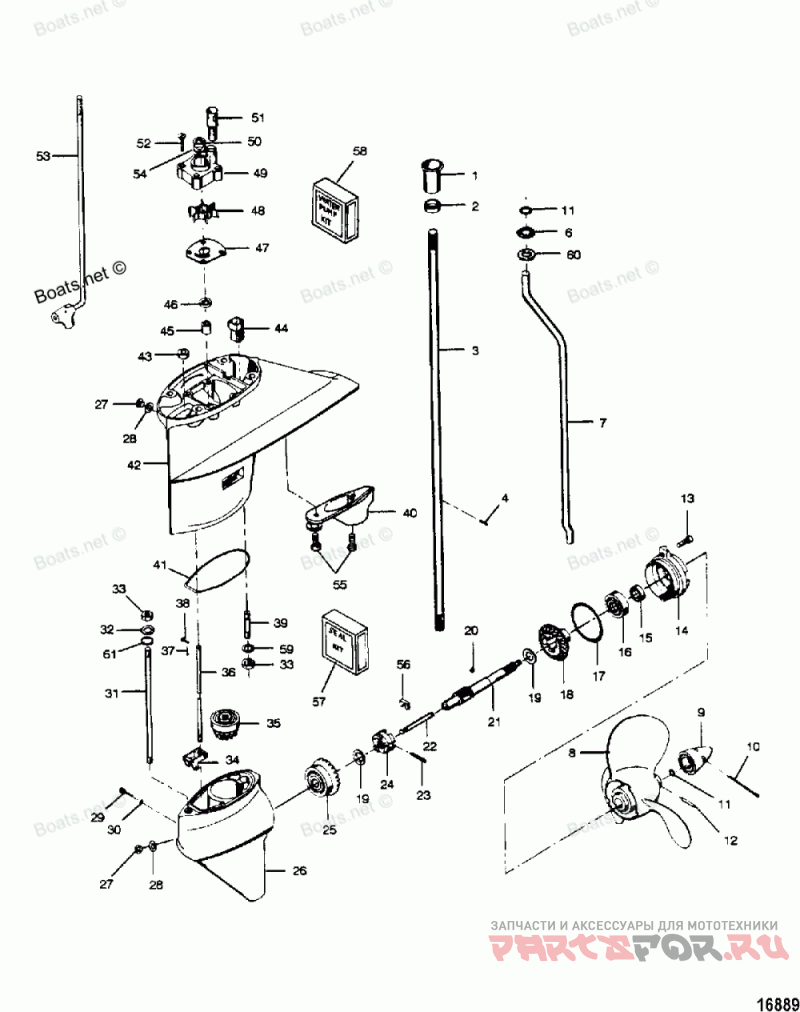

Gear Housing

Force H0355D89A

Gear Housing

#

oem код

название

цена

1

SEAL, Driveshaft Spline

SEAL, Driveshaft Spline

2

Седло

Седло

3

DRIVESHAFT

DRIVESHAFT

4

DRIVE PIN, Water Pump Impeller

DRIVE PIN, Water Pump Impeller

6

Стопорное кольцо

Стопорное кольцо

7

INLET WATER LINE KIT

INLET WATER LINE KIT

8

NOT SOLD SEPARATE, Propeller (See Propeller Listing)

NOT SOLD SEPARATE, Propeller (See Propeller Listing)

9

PROPELLER NUT

PROPELLER NUT

10

PIN (.125-.500)

PIN (.125-.500)

11

Уплотнение

Уплотнение

12

PROPELLER PIN, Pack of 6

PROPELLER PIN, Pack of 6

13

SCREW, (.312-18 x .560)

SCREW, (.312-18 x .560)

14

BEARING CAGE ASSEMBLY, Propeller Shaft

BEARING CAGE ASSEMBLY, Propeller Shaft

15

SEAL, Propeller Shaft

SEAL, Propeller Shaft

16

BALL BEARING, Propeller Shaft

BALL BEARING, Propeller Shaft

17

SEAL, Propeller Shaft Bearing Cage

SEAL, Propeller Shaft Bearing Cage

18

BEVEL GEAR REAR W/BEARING

BEVEL GEAR REAR W/BEARING

19

THRUST WASHER, Bevel Gear

THRUST WASHER, Bevel Gear

20

BALL, Propeller Shaft

BALL, Propeller Shaft

21

PROPELLER SHAFT ASSEMBLY

PROPELLER SHAFT ASSEMBLY

22

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

23

Пружинный Штифт

Пружинный Штифт

24

Муфта сцепления

Муфта сцепления

25

BEVEL GEAR FRONT W/BEARING AND CUP

BEVEL GEAR FRONT W/BEARING AND CUP

26

GEAR HOUSING LOWER W/THRUST BEARING CUP

GEAR HOUSING LOWER W/THRUST BEARING CUP

--

GEAR HOUSING KIT

GEAR HOUSING KIT

27

PLUG, Gear Housing

PLUG, Gear Housing

28

WASHER, Gear Housing Plug

WASHER, Gear Housing Plug

29

GEAR SHIFT ARM PIVOT PIN

GEAR SHIFT ARM PIVOT PIN

30

SEAL, O-RING

SEAL, O-RING

31

STUD, Long

STUD, Long

32

Шайба

Шайба

33

NUT (.375-16)

NUT (.375-16)

34

GEAR SHIFT ARM ASSEMBLY

GEAR SHIFT ARM ASSEMBLY

35

BEVEL PINION GEAR W/BEARING AND CUP

BEVEL PINION GEAR W/BEARING AND CUP

36

GEAR SHIFT ROD LOWER

GEAR SHIFT ROD LOWER

37

Шплинт

Шплинт

38

PIN, Gear Shift Rod Lower

PIN, Gear Shift Rod Lower

39

STUD, Short

STUD, Short

40

EXHAUST, Snout With Literature

EXHAUST, Snout With Literature

41

Уплотнение

Уплотнение

42

GEAR HOUSING UPPER

GEAR HOUSING UPPER

43

SEAL, Shift Rod Lower

SEAL, Shift Rod Lower

44

SCREEN, Water Inlet

SCREEN, Water Inlet

45

BEARING, Driveshaft Upper

BEARING, Driveshaft Upper

46

SEAL, Driveshaft Upper

SEAL, Driveshaft Upper

47

BACK PLATE

BACK PLATE

48

WATER PUMP IMPELLER

WATER PUMP IMPELLER

49

WATER PUMP BODY

WATER PUMP BODY

50

DRIVESHAFT SEAL, Water Pump

DRIVESHAFT SEAL, Water Pump

51

SEAL, Inlet Water Line, Lower With Literature

SEAL, Inlet Water Line, Lower With Literature

52

SCREW, (.250-20 x 1.250)

SCREW, (.250-20 x 1.250)

53

GEAR SHIFT ROD INTERMEDIATE

GEAR SHIFT ROD INTERMEDIATE

54

DISC, Water Pump

DISC, Water Pump

55

SCREW, (.250-20 x .875)

SCREW, (.250-20 x .875)

56

Вилка карданного вала

Вилка карданного вала

57

GEAR HOUSING SEAL KIT.

GEAR HOUSING SEAL KIT.

58

Рем.комплект помпы

Рем.комплект помпы

--

SCREW, (.250-20 x 1.250)

SCREW, (.250-20 x 1.250)

--

WATER PUMP IMPELLER

WATER PUMP IMPELLER

--

BACK PLATE, Water Pump

BACK PLATE, Water Pump

--

DRIVE PIN

DRIVE PIN

--

WATER PUMP BODY

WATER PUMP BODY

59

Стопорная шайба

Стопорная шайба

60

Шайба

Шайба

61

Уплотнение

Уплотнение
