Gear Housing (all Models) для лодочных моторов Force H0053B89A (1989)

Москва и регионы России

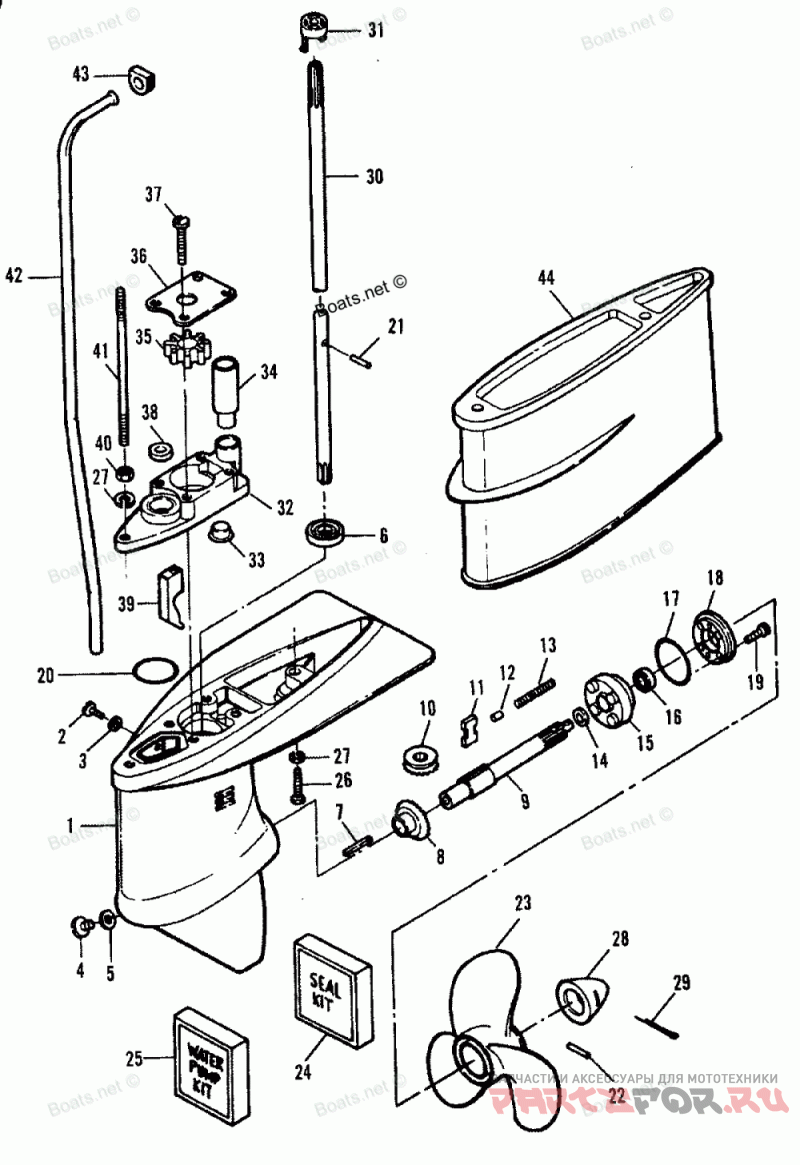

Gear Housing (all Models)

Force H0053B89A

Gear Housing (all Models)

#

oem код

название

цена

--

GEAR HOUSING KIT (COMPLETE) (PAINTED)

GEAR HOUSING KIT (COMPLETE) (PAINTED)

1

GEAR HOUSING KIT (BASIC) (PAINTED)

GEAR HOUSING KIT (BASIC) (PAINTED)

2

SCREW (10-24 X 1/4")

SCREW (10-24 X 1/4")

3

Шайба

Шайба

4

Заглушка

Заглушка

5

Шайба

Шайба

6

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

7

PIN, CLUTCH SHIFT

PIN, CLUTCH SHIFT

8

GEAR ASSEMBLY, FRONT

GEAR ASSEMBLY, FRONT

9

PROP SHAFT

PROP SHAFT

10

GEAR, PINION

GEAR, PINION

11

CLUTCH, SHIFT

CLUTCH, SHIFT

12

PIN, CLUTCH GUIDE

PIN, CLUTCH GUIDE

13

Пружина

Пружина

14

SPACER, PROP SHAFT BEARING

SPACER, PROP SHAFT BEARING

15

CAGE ASSEMBLY, PROP SHAFT

CAGE ASSEMBLY, PROP SHAFT

16

SEAL, PROP SHAFT

SEAL, PROP SHAFT

17

SEAL, PROP SHAFT BEARING CAGE

SEAL, PROP SHAFT BEARING CAGE

18

RETAINER, PROP SHAFT CAGE (PAINTED)

RETAINER, PROP SHAFT CAGE (PAINTED)

19

SCREW, BEARING CAGE RETAINER

SCREW, BEARING CAGE RETAINER

20

SEAL, WATER PUMP TO GEAR HOUSING

SEAL, WATER PUMP TO GEAR HOUSING

21

PIN, IMPELLER DRIVE

PIN, IMPELLER DRIVE

22

PIN KIT, PROP (3 PINS & COTTER PIN)

PIN KIT, PROP (3 PINS & COTTER PIN)

23

PROPELLER (7-1/4 X 6-1/2 X 3)

PROPELLER (7-1/4 X 6-1/2 X 3)

24

SEAL KIT, GEAR HOUSING

SEAL KIT, GEAR HOUSING

25

Рем.комплект помпы

Рем.комплект помпы

26

SCREW (1/4-20 X 1") (15" TRANSOM)

SCREW (1/4-20 X 1") (15" TRANSOM)

26

SCREW (1/4-20 X 6") (20" TRANSOM)

SCREW (1/4-20 X 6") (20" TRANSOM)

27

LOCKWASHER (1/4")

LOCKWASHER (1/4")

28

NUT KIT, PROP

NUT KIT, PROP

29

Шплинт

Шплинт

30

DRIVESHAFT (15" TRANSOM)

DRIVESHAFT (15" TRANSOM)

30

DRIVESHAFT (20" TRANSOM)

DRIVESHAFT (20" TRANSOM)

31

BEARING, DRIVESHAFT SUPPORT (20" TRANSOM)

BEARING, DRIVESHAFT SUPPORT (20" TRANSOM)

32

BODY ASSEMBLY, WATER PUMP

BODY ASSEMBLY, WATER PUMP

33

PLUG, WATER PUMP BODY

PLUG, WATER PUMP BODY

34

SEAL KIT, WATER LINE

SEAL KIT, WATER LINE

35

Импеллер

Импеллер

36

PLATE, WATER PUMP TOP

PLATE, WATER PUMP TOP

37

SCREW (1/4-20 X 1-1/4")

SCREW (1/4-20 X 1-1/4")

38

SEAL, GEAR SHIFT ROD LOWER

SEAL, GEAR SHIFT ROD LOWER

39

CAM, CLUTCH SHIFT

CAM, CLUTCH SHIFT

40

NUT (1/4-20)

NUT (1/4-20)

41

STUD, GEAR HOUSING FRONT (15" TRANSOM)

STUD, GEAR HOUSING FRONT (15" TRANSOM)

41

STUD, GEAR HOUSING FRONT (20" TRANSOM)

STUD, GEAR HOUSING FRONT (20" TRANSOM)

42

LINE, WATER (15" TRANSOM)

LINE, WATER (15" TRANSOM)

42

LINE, WATER (20" TRANSOM)

LINE, WATER (20" TRANSOM)

43

SEAL, WATER LINE UPPER

SEAL, WATER LINE UPPER

44

EXTENSION (20" TRANSOM) (PAINTED)

EXTENSION (20" TRANSOM) (PAINTED)
