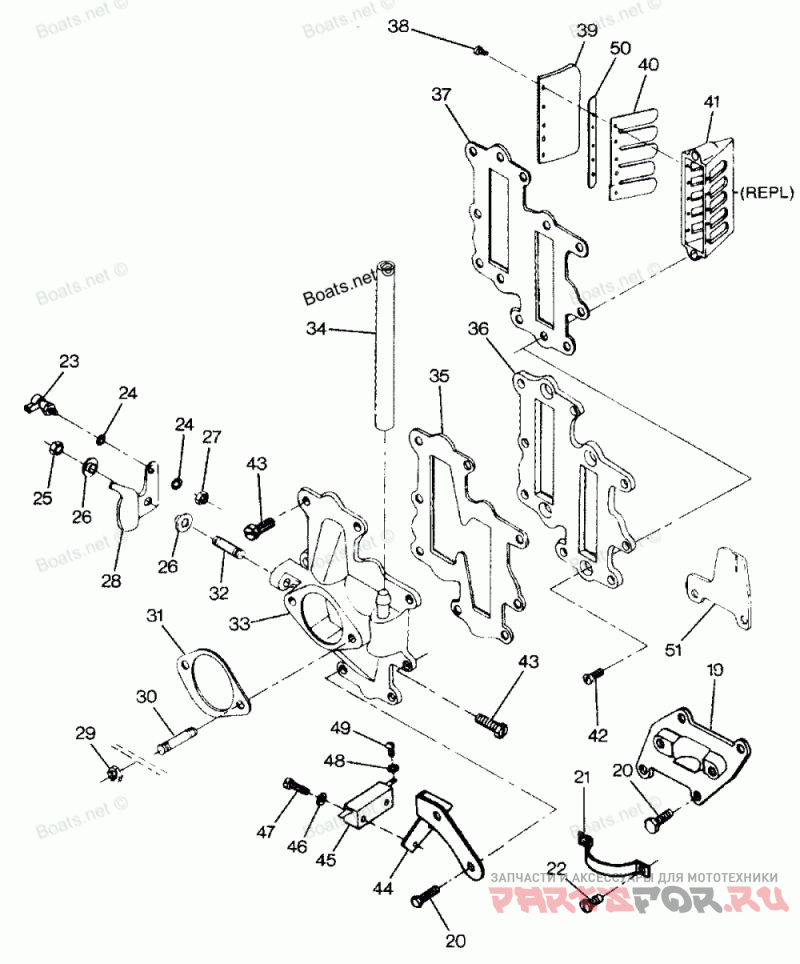

Adapter And Reed Plate

Force H1254X87B

Force
#oem кодцена
19
F372958
CHOKE BRACKET
20
F1532
HEX HD. SCREW, 1/4 - 20 X 1
21
F85317-3
SOLENOID CLAMP
22
F1236
SCREW, 1/4 - 20 X 1/2
23
8177471
BALL JOINT W/STUD
24
F8058
INTERNAL TOOTH LOCKWASHER
25
F7008
STOP NUT, 1/4 - 20
26
F269319
THROTTLE CAM BEARING
27
F1513
HEX NUT, 10 - 32
28
F440192-1
THROTTLE CAM
29
F1346
HEX NUT
30
F440209
CARBURETOR STUD
31
F440906
CARBURETOR GASKET
32
F433209-1
THROTTLE CAM STUD
33
FA440167
CARBURETOR ADAPTER, LOWER
FA440157
CARBURETOR ADAPTER, UPPER
34
F440254
BALANCE TUBE
35
F178168-1
GASKET, CARBURETOR ADAPTER
36
F178404-1
DEFLECTOR PLATE
37
F406406
GASKET DEFLECTOR PLATE
38
F1755
ROUND HD. SCREW W/LOCKWASHER 6 - 32 X 1/4
39
F85161-1
REED STOP
40
F530160
REED (5 PETAL)
41
F3A523158
REED PLATE
42
F1831
FLAT HD SCREW, 1/4 - 20 X 5/8
43
F2008
HEX HD SCREW, 1/4 - 20 X 7/8
44
F489551
BRACKET NEUTRAL INTERLOCK SWITCH
50
F523451
SPACER, REED STOP
51
F500894
POINTER, TIMING
