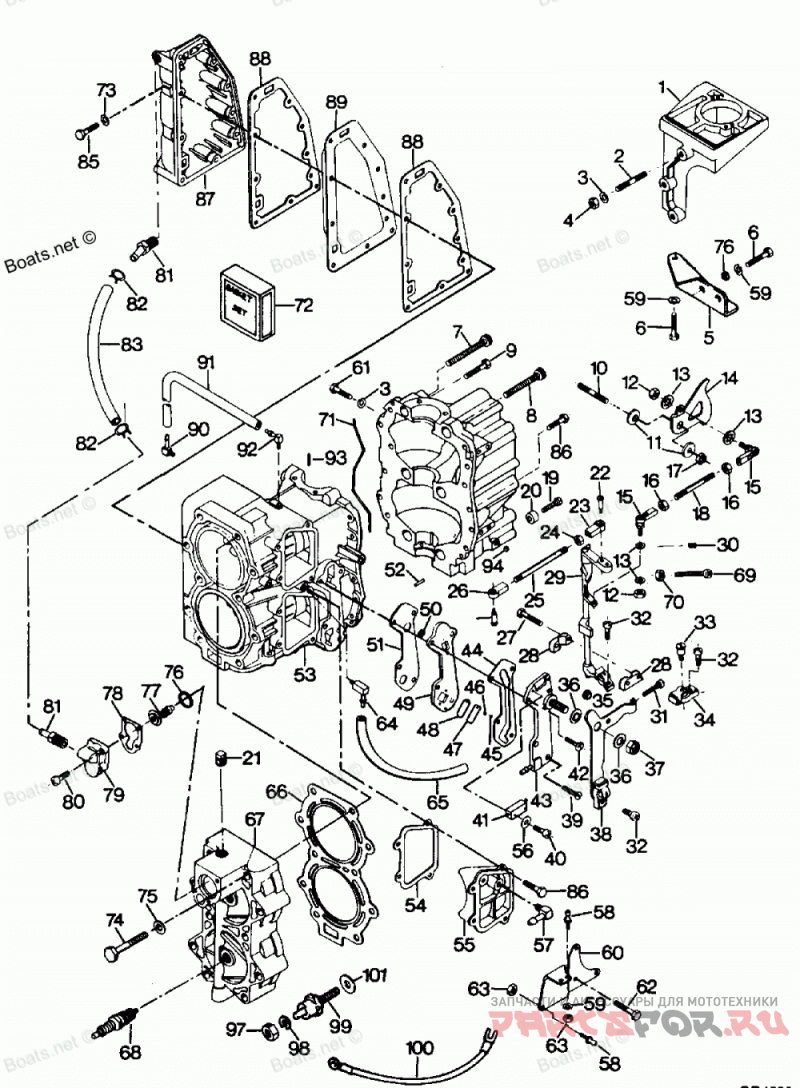

Power Head

Force H0507X87A

Force
#oem кодцена
1
F345427-1
BRACKET, STARTER MOUNTING
2
F307211
Шпилька
3
F8096
SPRING LOCKWASHER
4
F1515
HEX NUT, 5/16 - 18
5
F575675
STARTER MOUNTING BRACKET - LOWER
6
F1854
HEX SLOT HD SCREW, 1/4 - 20 X 5/8
7
F1646
HEX SOCKET HD CAP SCREW, 3/8 - 16 X 2-1/4
8
F1879
HEX SOCKET HD CAP SCREW, 3/8 - 16 X 1-5/8
9
F1864
HEX HD SCREW, 1/4 - 20 X 3/4
10
F433209-1
STUD, THROTTLE CAM
11
F269319
THROTTLE CAM BEARING
12
F1513
HEX NUT, 10 - 32
13
F8058
INTERNAL TOOTH LOCKWASHER
14
F433192
THROTTLE CAM
15
8177471
BALL JOINT W/BEARING
16
F1513
HEX NUT, 10 - 32
17
F7008
ELASTIC STOP NUT, 1/4 - 20
18
F85502
THROTTLE LINK
19
F1134
FILL HD SCREW, 10 - 24 X 1
20
F307942-1
Амортизатор ударов
21
F328109
Заглушка
22
F84026
SPARK CONTROL SWIVEL
23
F84036
SPARK CONTROL BEARING, L.H.
24
F1473
HEX NUT, 10 - 24
25
F269445-1
SPARK CONTROL LINK
26
F84035-2
SPARK CONTROL BEARING, R.H.
27
F1995
FILL HD SCREW, 10 - 24 X 1
28
F433689
TOWERSHAFT BEARING
29
FK433838
TOWERSHAFT
30
F1727
PLASTIC RIVET
31
F1969
FILL HD SCREW, 1/4 - 20 X 3/4
32
F1556
FILL HD SCREW, W/LOCKWASHER, 10 - 24 X 3/8
33
F405457
PIVOT SCREW
34
FK405020
SWIVEL
35
F85610
Подшипник
36
F269052
SHIFT ARM BEARING
37
F7004
STOP NUT, 7/16 - 20
38
817793A1
SHIFT ARM
39
F1136
FLAT HD SCREW, 1/4 - 20 X 1
40
F2016
FILL HD SCREW, 6 - 32 X 7/8
41
F84449
SWITCH, NEUTRAL INTERLOCK
42
F1446
SLOTTED PAN HD SCREW, 1/4 - 20 X 1
43
FA433471
CYLINDER DRAIN COVER W/FITTING
44
F93472-1
CYLINDER DRAIN COVER GASKET
45
F1286
PAN HD SCREW, 4 - 40 X 3/16
46
F8003
PLAIN WASHER
47
F93920
CYLINDER DRAIN REED STOP
48
F18160-3
REED, CYLINDER DRAIN
49
F3A433757
CYLINDER DRAIN REED PLATE
50
F93811
SCREEN CYLINDER DRAIN REED PLATE
51
F93748-1
CYLINDER DRAIN REED PLATE
52
F8559
Палец
53
FA465010
CYLINDER W/CRANKCASE COVER, DEFLECTOR PLATE
-
FC465010
SHORT BLOCK. ALSO REFER TO CRANKSHAFT PAGE.
54
F40223
TRANSFER PORT COVER GASKET
55
FA411222
TRANSFER PORT COVER
56
F8088
PLAIN WASHER
57
F84314-2
ELBOW, FUEL LINE
58
F98273
ROD END CONNECTOR STUD
59
F8083
SPRING LOCKWASHER
60
817746A1
CONNECTOR STUD BRACKET
61
F1857
HEX CAP SCREW, 5/16 - 18 X 5/8
62
F1864
HEX CAP SCREW, 1/4 - 20 X 3/4
63
F1804
STOP NUT, 10 - 32
64
F404801
Колено
65
F433254
Шланг
66
F201529-1
Прокладка головки блока цилиндров
67
818049A2
CYLINDER HEAD W/PLUGS
68
82371M
SPARK PLUG (UL81J)
69
F1052
FILL HD SCREW, 1/4 - 20 X 1
70
F1341
HEX NUT
71
F184122-1
CRANKCASE PARTING LINE SEAL (CUT TO 26")
72
FG1007-1
GASKET SET.
F40154-4
GASKET, EXHAUST PORT PLATE
F40223
GASKET, TRANSFER PORT COVER
F40833-4
GASKET, IDLE RELIEF COVER
F40906-1
GASKET, CARBURETOR
F93472-1
GASKET, CYLINDER DRAIN COVER
F93748-1
GASKET, CYLINDER DRAIN REED PLATE
F97067
GASKET, THERMOSTAT COVER
F201529-1
Прокладка
F184122-1
CRANKCASE PARTING LINE SEAL
F307279-2
GASKET, CYLINDER EXHAUST - UPPER
F40279-1
GASKET, CYLINDER EXHAUST - LOWER
F311996
GASKET, CYLINDER HEAD COVER
F366277
GASKET, BEARING CAGE
F433168
GASKET, CARBURETOR ADAPTER
F433406
GASKET, DEFLECTOR PLATE
73
F8083
SPRING LOCKWASHER
74
F1544
HEX HD CAP SCREW, 3/8 - 16 X 2-1/4
75
F2014
PLAIN WASHER
76
F97504
GROMMET, THERMOSTAT
77
F97068-2
THERMOSTAT (130e)
78
F97067
THERMOSTAT COVER GASKET
79
F97066-1
Крышка термостата
80
F1995
FILL HD SCREW, 10 - 24 X 1-1/16
81
F97275
FITTING, THERMOSTAT
82
F97772
Зажим
83
FA97247
WATER TUBE, THERMOSTAT
85
F1971
HEX HD SCREW, 1/4 - 20 X 2-1/8
86
F1922
HEX HD SCREW, 1/4 - 20 X 5/8
87
FA433152
EXHAUST PORT COVER
88
F40154-4
EXHAUST PORT PLATE GASKET
89
F40151-2
EXHAUST PORT PLATE
90
F463314
ELBOW W/VALVE
91
F433758
Шланг
92
817740A1
ELBOW W/METERING CAP
93
F8545
Пружинный Штифт
94
F1997
STOP NUT, 8 - 32
95
F1526
WELCH PLUG, CYLINDER HEAD (NOT SHOWN)
96
F1525
WELCH PLUG, CYLINDER HEAD (NOT SHOWN)
97
F1647
HEX NUT
98
F8056
Стопорная шайба
99
817939A1
THERMOSWITCH
100
F307104
WIRE THERMOSWITCH
101
F295175
WASHER, INSULATING
