Motor Leg для лодочных моторов Force H0042C87A (1987)

Москва и регионы России

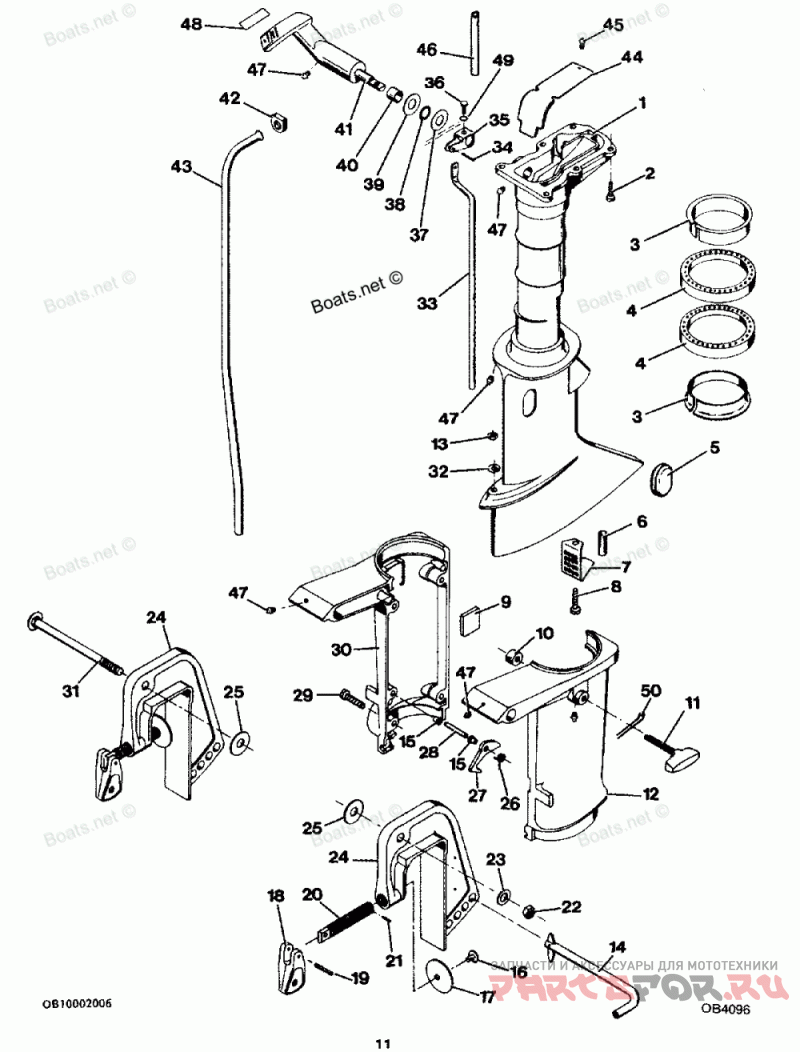

Motor Leg

Force H0042C87A

Motor Leg

#

oem код

название

цена

1

MOTOR LEG W/ITEMS 40, 44, 45, 46 AND 47

MOTOR LEG W/ITEMS 40, 44, 45, 46 AND 47

2

HEX HD SCREW, 1/4-20X3/4

HEX HD SCREW, 1/4-20X3/4

3

BEARING, SWIVEL BRACKET

BEARING, SWIVEL BRACKET

4

SHOCK MOUNT W/LITERATURE

SHOCK MOUNT W/LITERATURE

5

COVER, SHIFT COUPLING

COVER, SHIFT COUPLING

6

SLEEVE, IDLE BAFFLE

SLEEVE, IDLE BAFFLE

7

BAFFLE, IDLE RELIEF

BAFFLE, IDLE RELIEF

8

FILL HD SCREW, 10-24X1-11/16

FILL HD SCREW, 10-24X1-11/16

9

PAD, SWIVEL FRICTION

PAD, SWIVEL FRICTION

10

SHOE, SWIVEL FRICTION

SHOE, SWIVEL FRICTION

11

KNOB, STEERING FRICTION W/SCREW

KNOB, STEERING FRICTION W/SCREW

12

SWIVEL BRACKET - PORT W/ILLUS. 15 & 47

SWIVEL BRACKET - PORT W/ILLUS. 15 & 47

13

HEX NUT

HEX NUT

14

LOCK BAR ASSEMBLY

LOCK BAR ASSEMBLY

15

Подшипник

Подшипник

16

Шпилька

Шпилька

17

CLAMP SCREW FOOT

CLAMP SCREW FOOT

18

HANDLE, CLAMP SCREW

HANDLE, CLAMP SCREW

19

Пружинный Штифт

Пружинный Штифт

20

CLAMP SCREW W/ILLUS. 16, 17 AND 21

CLAMP SCREW W/ILLUS. 16, 17 AND 21

21

Пружинный Штифт

Пружинный Штифт

22

STOP NUT

STOP NUT

23

PLAIN WASHER

PLAIN WASHER

24

STERN BRACHET W/ILLUS. 20

STERN BRACHET W/ILLUS. 20

25

PLAIN WASHER

PLAIN WASHER

26

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

27

REVERSE LOCK

REVERSE LOCK

28

PIN, REVERSE LOCK

PIN, REVERSE LOCK

29

PHILLIPS FILL HD SCREW, 1/4-20X1

PHILLIPS FILL HD SCREW, 1/4-20X1

30

SWIVEL BRACKEY - STARBOARD W/ILLUS. 9 AND 47

SWIVEL BRACKEY - STARBOARD W/ILLUS. 9 AND 47

31

PIVOT BOLT

PIVOT BOLT

32

SPRING LOCKWASHER

SPRING LOCKWASHER

33

ROD, GEAR SHIFT UPPER

ROD, GEAR SHIFT UPPER

34

Шплинт

Шплинт

35

LEVER, GEAR SHIFT

LEVER, GEAR SHIFT

36

HEX M. SCREW, 10-24X3/8

HEX M. SCREW, 10-24X3/8

37

PLAIN WASHER

PLAIN WASHER

38

SEAL, SHIFT LEVER SHAFT

SEAL, SHIFT LEVER SHAFT

39

WASHER, GEAR SHIFT HANDLE

WASHER, GEAR SHIFT HANDLE

40

BEARING, GEAR SHIFT SHAFT

BEARING, GEAR SHIFT SHAFT

41

HANDLE, GEAR SHIFT W/SHAFT

HANDLE, GEAR SHIFT W/SHAFT

42

SEAL, WATER LINE

SEAL, WATER LINE

43

WATER LINE, STANDARD LEG

WATER LINE, STANDARD LEG

44

PLATE, EXHAUST W/ILLUS. 45

PLATE, EXHAUST W/ILLUS. 45

45

RD HD. THD. CUTTING, 6-32X1/4

RD HD. THD. CUTTING, 6-32X1/4

46

LINE, WATER OUTLET

LINE, WATER OUTLET

47

FITTING, GREASE

FITTING, GREASE

48

DECAL, GEAR SHIFT HANDLE (CANADA)

DECAL, GEAR SHIFT HANDLE (CANADA)

49

LOCKWASHER, #10

LOCKWASHER, #10

50

Шплинт

Шплинт
