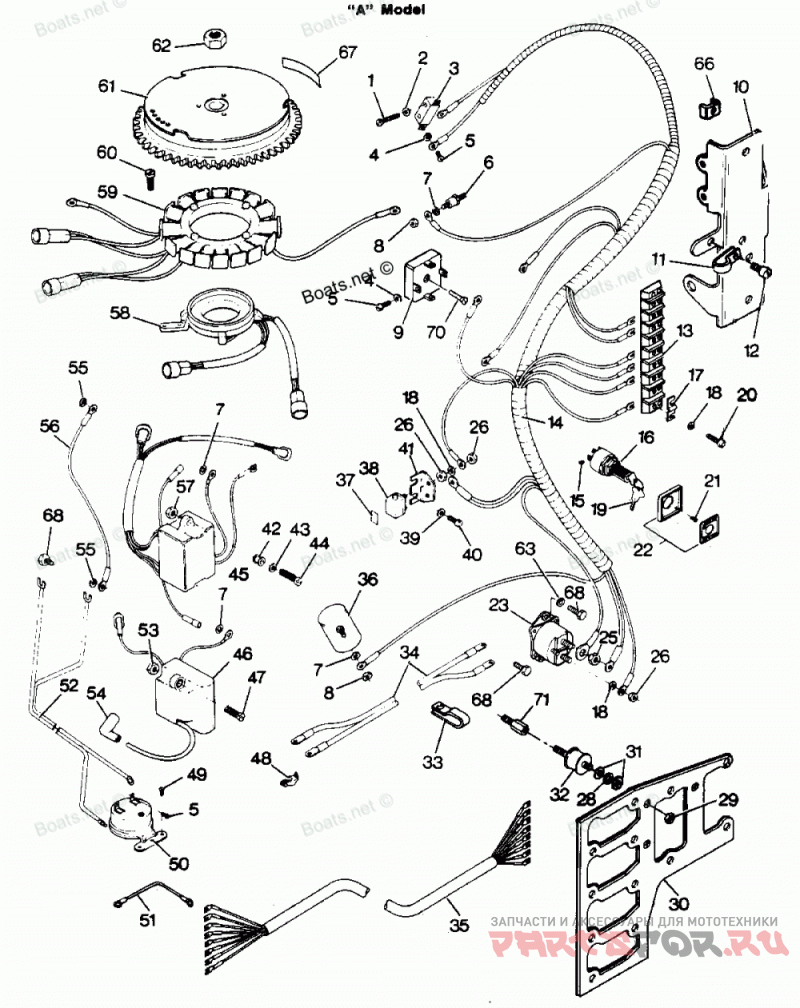

Electrical Components "a" Models

Force H1258V86A

Electrical Components

#

oem код

название

цена

1

SLOTTED FILL HD SCREW. 6 - 32 X 7/8

SLOTTED FILL HD SCREW. 6 - 32 X 7/8

2

PLAIN WASHER

PLAIN WASHER

3

NEUTRAL INTERLOCK SWITCH

NEUTRAL INTERLOCK SWITCH

4

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

5

RD HD SCREW, 6 - 32 X 1/4

RD HD SCREW, 6 - 32 X 1/4

6

THERMOSWITCH

THERMOSWITCH

7

SPRING LOCKWASHER

SPRING LOCKWASHER

8

HEX NUT, 8 - 32

HEX NUT, 8 - 32

9

Регулятор напряжения

Регулятор напряжения

10

BRACKET, TERMINAL BLOCK

BRACKET, TERMINAL BLOCK

11

CLAMP, REMOTE ELEC. CABLE TO BRACKET

CLAMP, REMOTE ELEC. CABLE TO BRACKET

12

FILL HD. SCREW, 1/4 - 20 X 1/2

FILL HD. SCREW, 1/4 - 20 X 1/2

13

TERMINAL BLOCK

TERMINAL BLOCK

14

WIRING HARNESS

WIRING HARNESS

15

SLOTTED PAN HD SCREW, 8 - 32 X 1/4

SLOTTED PAN HD SCREW, 8 - 32 X 1/4

16

SWITCH, IGNITION LONG BARREL W/ KEYS AND SCREWS

SWITCH, IGNITION LONG BARREL W/ KEYS AND SCREWS

17

CLIP TERMINAL BLOCK GROUND

CLIP TERMINAL BLOCK GROUND

18

Стопорная шайба

Стопорная шайба

19

KEY IGNITION - NO LETTER OR STAMPED A

KEY IGNITION - NO LETTER OR STAMPED A

-

KEY IGNITION - STAMPED B

KEY IGNITION - STAMPED B

-

KEY IGNITION - STAMPED C

KEY IGNITION - STAMPED C

-

KEY IGNITION - STAMPED D

KEY IGNITION - STAMPED D

-

KEY IGNITION - STAMPED E

KEY IGNITION - STAMPED E

-

EMERGENCY STARTER ROPE (NOT SHOWN)

EMERGENCY STARTER ROPE (NOT SHOWN)

20

PAN HD SCREW, 10 - 24 X 3/4

PAN HD SCREW, 10 - 24 X 3/4

21

FLAT HD SCREW, 6 X 12

FLAT HD SCREW, 6 X 12

22

IGNITIIN SWITCH MOUNTING KIT (ACCESSORY ITEM)

IGNITIIN SWITCH MOUNTING KIT (ACCESSORY ITEM)

23

Реле стартера

Реле стартера

24

SPRING LOCKWASHER

SPRING LOCKWASHER

25

HEX NUT, S.S., 5/16 - 18

HEX NUT, S.S., 5/16 - 18

26

HEX NUT, 10 - 32

HEX NUT, 10 - 32

28

PLAIN WASHER

PLAIN WASHER

29

HEX NUT, 5/16 - 18

HEX NUT, 5/16 - 18

30

BRACKET (C.D. - COIL)

BRACKET (C.D. - COIL)

31

EXTERNAL TOOTH LOCKWASHER

EXTERNAL TOOTH LOCKWASHER

32

MOUNT (SHOCK - C.D. UNIT)

MOUNT (SHOCK - C.D. UNIT)

33

Зажим

Зажим

34

BATTERY CABLE

BATTERY CABLE

35

ELECTRIC CONTROL CABLE, 21 FEET (ACCESSORY ITEM)

ELECTRIC CONTROL CABLE, 21 FEET (ACCESSORY ITEM)

-

ELECTRICAL CABLE, 22 FEET - BAYLINER

ELECTRICAL CABLE, 22 FEET - BAYLINER

36

CHOKE SOLENOID W/CLAMP

CHOKE SOLENOID W/CLAMP

37

DECAL, CIRCUIT BREAKER

DECAL, CIRCUIT BREAKER

38

CIRCUIT BREAKER

CIRCUIT BREAKER

39

PLAIN WASHER

PLAIN WASHER

40

SLOTTED PAN HD SCREW, 10 - 24 X 3/8

SLOTTED PAN HD SCREW, 10 - 24 X 3/8

41

CIRCUIT BREAKER BRACKET

CIRCUIT BREAKER BRACKET

42

Уплотнитель резиновый

Уплотнитель резиновый

43

PLAIN WASHER

PLAIN WASHER

44

HEX HD. SC., 1/4 - 20 X 7/8

HEX HD. SC., 1/4 - 20 X 7/8

45

MODULE

MODULE

46

Катушка зажигания

Катушка зажигания

47

SLOTTED PAN HD SCREW, 1/4 - 20 X 7/8

SLOTTED PAN HD SCREW, 1/4 - 20 X 7/8

48

BATTERY TERMINAL KIT (ACCESSORY ITEM)

BATTERY TERMINAL KIT (ACCESSORY ITEM)

49

PAN HD SCREW, 8 X 3/4

PAN HD SCREW, 8 X 3/4

50

BUZZER, HEAT INDICATOR (ACCESSORY ITEM)

BUZZER, HEAT INDICATOR (ACCESSORY ITEM)

51

WIRE, GROUND (RECTIFIER TO STARTER BOLT)

WIRE, GROUND (RECTIFIER TO STARTER BOLT)

52

CABLE, HEAT INDICATOR

CABLE, HEAT INDICATOR

53

NUT, 1/4 - 20

NUT, 1/4 - 20

54

SPARKIE KIT

SPARKIE KIT

55

Стопорная шайба

Стопорная шайба

56

WIRE, GROUND (C.D.-COIL BRACKET)

WIRE, GROUND (C.D.-COIL BRACKET)

57

NUT, LOCK 1/4 - 20

NUT, LOCK 1/4 - 20

58

TRIGGER ASSY.

TRIGGER ASSY.

59

ALTERNATOR STATOR

ALTERNATOR STATOR

60

SLOTTED PAN HD SCREW #12 - 24 X 1

SLOTTED PAN HD SCREW #12 - 24 X 1

61

Маховик

Маховик

62

HEX NUT 3/4 - 16

HEX NUT 3/4 - 16

63

SPRING LOCKWASHER

SPRING LOCKWASHER

64

TY-RAP (NOT SHOWN)

TY-RAP (NOT SHOWN)

66

Седло

Седло

67

DECAL, WARNING

DECAL, WARNING

68

HEX WASHER HD M SCREW, 1/4 - 20 X 3/4

HEX WASHER HD M SCREW, 1/4 - 20 X 3/4

70

PAN HD SCREW, 8 - 32 X 3/4

PAN HD SCREW, 8 - 32 X 3/4

71

Шпилька

Шпилька
