Engine Cover And Support Plate для лодочных моторов Force H1251X86B (1986)

Москва и регионы России

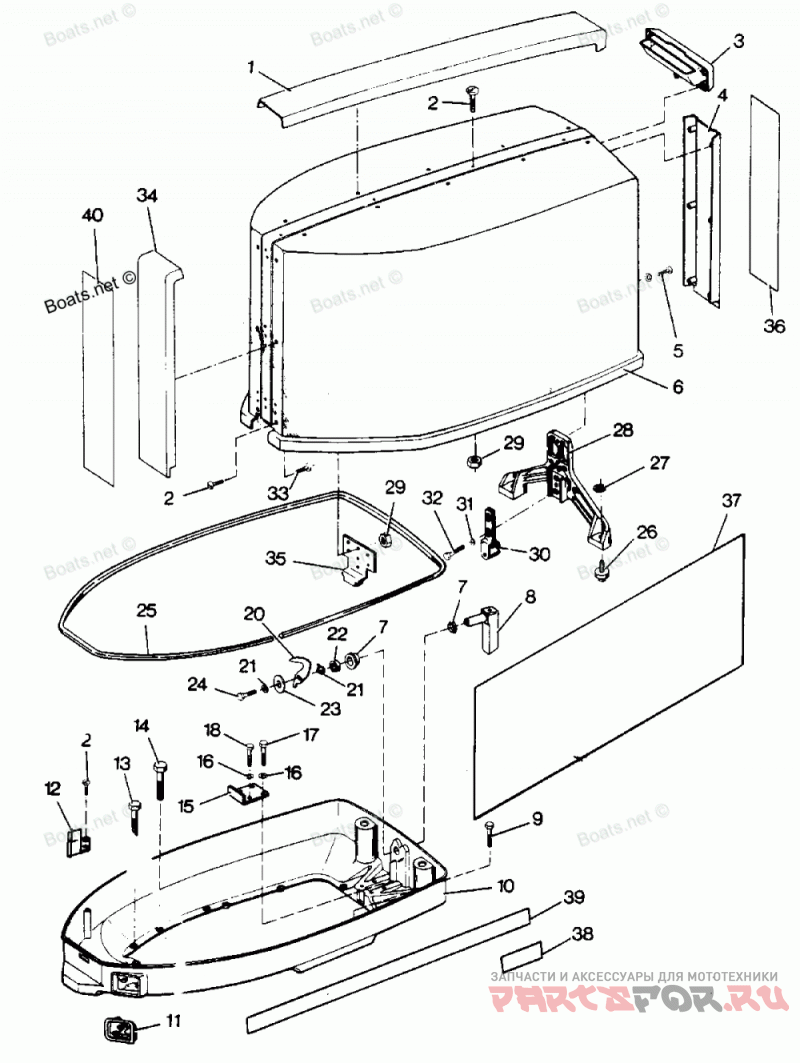

Engine Cover And Support Plate

Force H1251X86B

Engine Cover And Support Plate

#

oem код

название

цена

1

TRIM, TOP

TRIM, TOP

2

PAN HD SCREW, 10 - 24 X 9/16

PAN HD SCREW, 10 - 24 X 9/16

3

Ручка наклона

Ручка наклона

4

TRIM, REAR

TRIM, REAR

5

PAN HD SCREW, W/SPRING LOCKWASHER, 1/4 - 20 X 5/8

PAN HD SCREW, W/SPRING LOCKWASHER, 1/4 - 20 X 5/8

-

BLANKET, SILENCER TOP (NOT SHOWN)

BLANKET, SILENCER TOP (NOT SHOWN)

-

BLANKET, SILENCER SIDE (NOT SHOWN)

BLANKET, SILENCER SIDE (NOT SHOWN)

6

ENGINE COVER

ENGINE COVER

-

ENGINE COVER COMPLETE.

ENGINE COVER COMPLETE.

7

BEARING, LATCH SHAFT

BEARING, LATCH SHAFT

8

ENGINE COVER LATCH HANDLE W/SHAFT

ENGINE COVER LATCH HANDLE W/SHAFT

9

HEX CAP SCREW, 1/4 - 20 x 3/4

HEX CAP SCREW, 1/4 - 20 x 3/4

10

Опорная Плита

Опорная Плита

11

BUSHING, ELECTRIC CABLE

BUSHING, ELECTRIC CABLE

12

BUSHING CABLE ENTRY

BUSHING CABLE ENTRY

13

HEX HD CAP SCREW, 1/4 - 20 X 1-3/8

HEX HD CAP SCREW, 1/4 - 20 X 1-3/8

14

HEX SLOT HD SCREW, 1/4 - 20 X 5/8

HEX SLOT HD SCREW, 1/4 - 20 X 5/8

15

DEFLECTION STOP

DEFLECTION STOP

16

SPRING LOCKWASHER

SPRING LOCKWASHER

17

HEX CAP SCREW, 5/16 - 18 X 5/8

HEX CAP SCREW, 5/16 - 18 X 5/8

18

HEX CAP SCREW, 5/16 - 18 X 1

HEX CAP SCREW, 5/16 - 18 X 1

19

SPRING LOCKWASHER

SPRING LOCKWASHER

20

CAM, LATCH SHAFT

CAM, LATCH SHAFT

21

WAVE SPRING WASHER

WAVE SPRING WASHER

22

SPACER, LATCH SHAFT

SPACER, LATCH SHAFT

23

PLAIN WASHER

PLAIN WASHER

24

HEX CAP SCREW 1/4 - 20 5/8

HEX CAP SCREW 1/4 - 20 5/8

25

Прокладка

Прокладка

26

GUIDE, ENGINE COVER

GUIDE, ENGINE COVER

27

Застежка

Застежка

28

BRACKET, ENGINE COVER LATCH

BRACKET, ENGINE COVER LATCH

29

HEX NUT, 10 - 24

HEX NUT, 10 - 24

30

BRACKET, ROLLER LATCH W/ROLLER

BRACKET, ROLLER LATCH W/ROLLER

31

SPRING LOCKWASHER

SPRING LOCKWASHER

32

HEX CAP SCREW, 5/16 - 18 X 5/8

HEX CAP SCREW, 5/16 - 18 X 5/8

33

PAN HD TAPPING SCREW, 10 X 7/16

PAN HD TAPPING SCREW, 10 X 7/16

34

TRIM, FRONT

TRIM, FRONT

35

RETAINER, ENGINE COVER

RETAINER, ENGINE COVER

36

DECAL, REAR

DECAL, REAR

37

DECAL, ENGINE COVER PORT

DECAL, ENGINE COVER PORT

-

DECAL, ENGINE COVER STARBOARD

DECAL, ENGINE COVER STARBOARD

38

DECAL, SWIRL

DECAL, SWIRL

39

DECAL, SUPPORT PLATE

DECAL, SUPPORT PLATE

40

DECAL, FRONT

DECAL, FRONT
