Motor Leg для лодочных моторов Force H0856F86C (1986)

Москва и регионы России

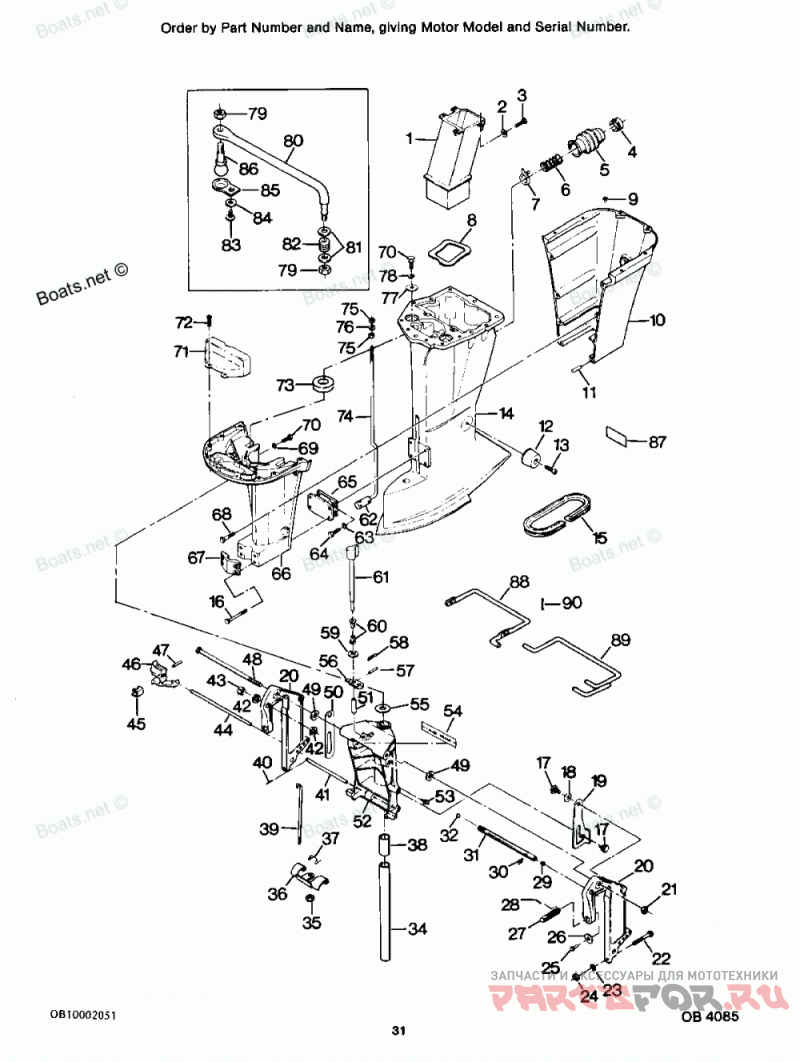

Motor Leg

Force H0856F86C

Motor Leg

#

oem код

название

цена

1

EXHAUST TUBE

EXHAUST TUBE

2

SPRING LOCKWASHER

SPRING LOCKWASHER

3

HEX SLOT HD SCREW, 1/4 - 20 X 3/4

HEX SLOT HD SCREW, 1/4 - 20 X 3/4

4

Вставка

Вставка

5

BOOT, IDLE EXHAUST

BOOT, IDLE EXHAUST

6

Пружина

Пружина

7

Зажим

Зажим

8

SEAL EXHAUST TUBE

SEAL EXHAUST TUBE

9

Заглушка

Заглушка

10

MOTOR LEG COVER, REAR

MOTOR LEG COVER, REAR

11

Пружинный Штифт

Пружинный Штифт

12

SHOCK MOUNT SLIDE

SHOCK MOUNT SLIDE

13

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16

14

MOTOR LEG

MOTOR LEG

15

SEAL, MOTOR LEG

SEAL, MOTOR LEG

16

HEX BOLT, 5/16 - 18 X 1-3/4

HEX BOLT, 5/16 - 18 X 1-3/4

17

TILT STOP PIVOT

TILT STOP PIVOT

18

BOWED SPRING WASHER

BOWED SPRING WASHER

19

TILT LOCK

TILT LOCK

20

STERN BRACKET

STERN BRACKET

21

LOCK NUT, 1/2 - 20

LOCK NUT, 1/2 - 20

22

HEX HD SCREW, 3/8 - 16 X 3

HEX HD SCREW, 3/8 - 16 X 3

23

PLAIN WASHER

PLAIN WASHER

24

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

25

Шпилька

Шпилька

26

CLAMP SCREW FOOT

CLAMP SCREW FOOT

27

CLAMP SCREW

CLAMP SCREW

28

Пружинный Штифт

Пружинный Штифт

29

Заглушка

Заглушка

30

Масленка

Масленка

31

TUBE, STEERING SUPPORT

TUBE, STEERING SUPPORT

32

SEAL, STEERING SUPPORT TUBE

SEAL, STEERING SUPPORT TUBE

34

KINGPIN

KINGPIN

35

LOCK NUT

LOCK NUT

36

REVERSE LOCK

REVERSE LOCK

37

REVERSE LOCK SPRING

REVERSE LOCK SPRING

38

Подшипник

Подшипник

39

LINK

LINK

40

Пружинный Штифт

Пружинный Штифт

41

REVERSE LOCK PIN

REVERSE LOCK PIN

42

NUT, STEERING SUPPORT TUBE

NUT, STEERING SUPPORT TUBE

43

Крышка

Крышка

44

STERN BRACKET LOCK BAR

STERN BRACKET LOCK BAR

45

SPRING LOCK BAR HANDLE

SPRING LOCK BAR HANDLE

46

HANDLE, LOCK BAR

HANDLE, LOCK BAR

47

Пружинный Штифт

Пружинный Штифт

48

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

49

FRICTION WASHER

FRICTION WASHER

50

TILT STOP

TILT STOP

51

Подшипник

Подшипник

52

SWIVEL BRACKET

SWIVEL BRACKET

53

Масленка

Масленка

54

DECAL, REVERSE LOCK

DECAL, REVERSE LOCK

55

Шайба

Шайба

56

REVERSE LOCK ARM

REVERSE LOCK ARM

57

Пружинный Штифт

Пружинный Штифт

58

Шплинт

Шплинт

59

PLAIN WASHER

PLAIN WASHER

60

Подшипник

Подшипник

61

HANDLE AND SHAFT

HANDLE AND SHAFT

62

COUPLER, GEARSHIFT ROD, UPPER

COUPLER, GEARSHIFT ROD, UPPER

63

SPRING LOCKWASHER

SPRING LOCKWASHER

64

HEX BOLT, 5/16 - 18 X 7/8

HEX BOLT, 5/16 - 18 X 7/8

65

SHOCK MOUNT, LOWER

SHOCK MOUNT, LOWER

66

LEG COVER, FRONT

LEG COVER, FRONT

67

KINGPIN CAP

KINGPIN CAP

68

HEX HD SCREW, 1/4 - 20 X 1-1/4

HEX HD SCREW, 1/4 - 20 X 1-1/4

69

SPRING LOCKWASHER

SPRING LOCKWASHER

70

HEX HD SCREW, 3/8 - 16 X 3/4

HEX HD SCREW, 3/8 - 16 X 3/4

71

BAFFLE, AIR INTAKE

BAFFLE, AIR INTAKE

72

HEX HD SCREW, 10 - 24 X 1/2

HEX HD SCREW, 10 - 24 X 1/2

73

SHOCK MOUNT, UPPER

SHOCK MOUNT, UPPER

74

GEAR SHIFT ROD, UPPER

GEAR SHIFT ROD, UPPER

75

LOCK NUT, 5/16 - 18

LOCK NUT, 5/16 - 18

76

PLAIN WASHER

PLAIN WASHER

77

WASHER SHOCK MOUNT UPPER W/WASHER

WASHER SHOCK MOUNT UPPER W/WASHER

78

PLAIN WASHER

PLAIN WASHER

79

STOP NUT 3/8 - 24

STOP NUT 3/8 - 24

81

PLAIN WASHER

PLAIN WASHER

82

Пружина

Пружина

83

PAN HD SCREW, 8 - 32 X 1/4

PAN HD SCREW, 8 - 32 X 1/4

84

SPRING LOCKWASHER

SPRING LOCKWASHER

85

Седло

Седло

86

STEERING BALL STUD

STEERING BALL STUD

87

DECAL, POWER FLOW

DECAL, POWER FLOW

88

TRAILERING BRACKET (W/OUT POWER TRIM)

TRAILERING BRACKET (W/OUT POWER TRIM)

89

TRAILERING BRACKET (W/POWER TRIM)

TRAILERING BRACKET (W/POWER TRIM)

90

COTTER PIN FOR 5H179

COTTER PIN FOR 5H179
