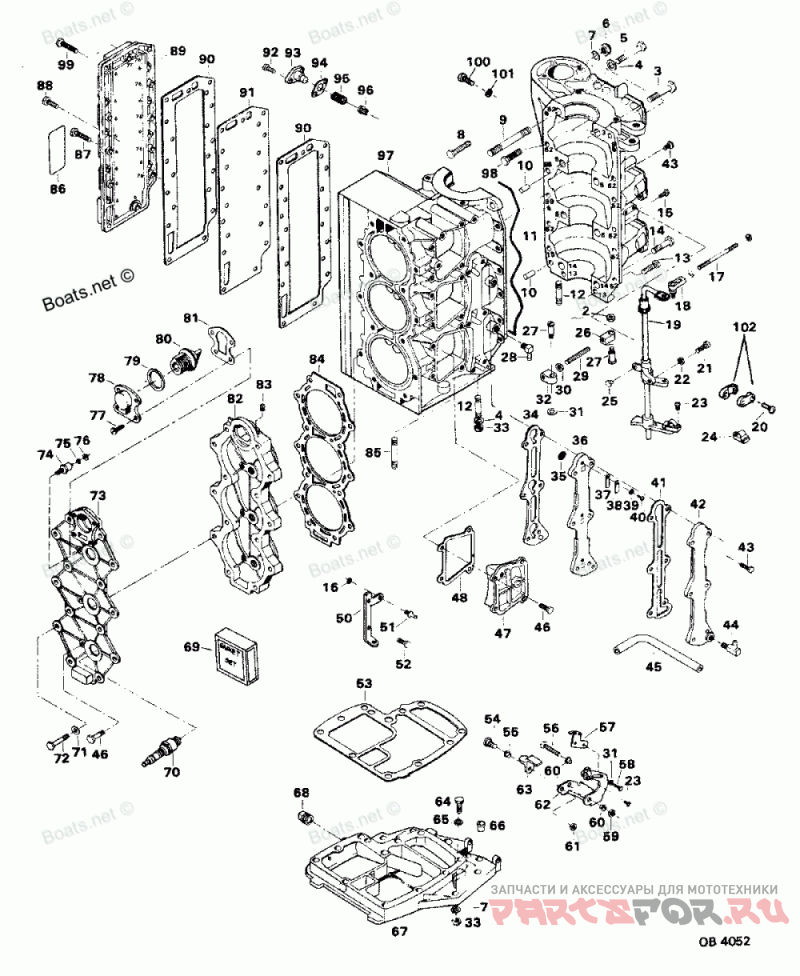

Powerhead

Force H0858F85A

Force
#oem кодцена
2
F7009
LOCK NUT, #10 - 24
3
F1009
HEX BOLT, 3/8 - 16 X 2-3/4
4
F8038
PLAIN WASHER
5
F1873
HEX BOLT, 3/8 - 16 X 3
6
F1346
HEX NUT, 3/8 - 16
7
F8095
PLAIN WASHER
8
F1864
HEX HD SCREW, 1/4 - 20 X 3/4
9
F85210
Шпилька
10
F8563
Палец
11
F184122-1
PARTING LINE SEAL
12
F85859
STUD, FORWARD
13
F1504
FILL HD SCREW, 1/4 - 20 X 1-1/4
14
F1872
HEX BOLT, 3/8 - 16 X 1-3/4
15
F1199
HEX CAP SCREW, 1/4 - 20 X 1
16
F1804
STOP NUT
17
F85502
THROTTLE LINK
18
8177471
BALL JOINT W/STUD
19
817968A2
TOWERSHAFT
20
F1829
FILL HD SCREW, 10 - 24 X 7/8
21
F1504
FILL HD SCREW, 1/4 - 20 X 1-1/4
22
F1341
HEX NUT, 1/4 - 20
23
F1556
FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/8
24
FK405020
SWIVEL W/PIVOT SCREW AND NUT
NS
F405457
SCREW-Pivot
NS
F7008
Гайка
25
F1727
PLASTIC RIVET
26
F499036
TOWERSHAFT CONTROL ROD END
27
F499026
SWIVEL
28
F84314-2
Колено
29
F85445
ROD, SPARK CONTROL
30
F2015
HEX NUT, 1/4 - 28
31
F2042
PLAIN WASHER
32
F499035
ROD END, CONTROL ROD TO TRIGGER
33
F7004
STOP NUT, 3/18 - 16
34
F85748-2
GASKET, CYLINDER DRAIN REED PLATE
35
F93811
Водозаборная решетка
36
F2A404757
CYLINDER DRAIN REED PLATE
37
F18160-2
REED
38
F93920
REED STOP
39
F8003
PLAIN WASHER
40
F1286
PAN HD SCREW, 4 - 40 X 3/16
41
F85472-2
GASKET, CYLINDER DRAIN COVER
42
817787A1
CYLINDER DRAIN COVER W/PLUG AND LITERATURE
43
F1532
HEX HD SCREW, 1/4 - 20 X 1
44
F404801
Фитинг
45
F433253
Шланг
46
F1922
HEX HD SCREW, 1/4 - 20 X 5/8
47
FA411222
TRANSFER PORT COVER W/PLUGS AND LITERATURE
48
F40223
GASKET, TRANSFER PORT COVER
49
F1513
HEX NUT 10-32
50
FS85872-1
BRACKET, REMOTE CABLE
51
F98273
ROD END CONNECTOR STUD
52
F1864
HEX HD SCREW, 1/4 - 20 X 3/4
53
F85279-2
CYLINDER EXHAUST GASKET, UPPER
54
F369887
Винт
55
F369610
Подшипник
56
F1885
HEX BOLT, 5/16 - 18 X 4-1/4
57
F480107-1
CAM, STARTER INTERLOCK
58
F2089
SLOTTED PAN HD MACHINE SCREW, 10 - 24 X 5/16
59
F2108
STOP, NUT 5/16 - 18
60
F85610
Подшипник
61
F1832
STOP NUT, 1/4 - 20
62
FA480876
GEAR SHIFT ARM
63
F369977-1
INTERLOCK ARM
64
F1869
HEX BOLT, 3/8 - 16 X 1-1/4
65
F1703
SPRING LOCKWASHER
66
F40689-1
BEARING, TOWERSHAFT
67
817788A3
SPACER PLATE
68
F2090
Заглушка
69
FG1020-1
Комплет прокладок
_
F40223
TRANSFER PORT COVER GASKET
_
F84278
CRANKSHAFT BRG. SEAL CAGE SEAL
_
F84504
THERMOSTAT GROMMET
_
F184122-1
CRANKCASE SEAL
_
F85154-1
EXHAUST PORT PLATE GASKET
_
F85159-1
MANIFOLD GASKET
_
F85168-1
CARBURETOR ADAPTER FLANGE GASKET
_
F85279-2
CYLINDER, EXHAUST - UPPER GASKET
_
F85472-2
CYLINDER DRAIN COVER GASKET
_
F85748-2
CYLINDER DRAIN REED PLATE GASKET
_
F85762
BY PASS VALVE GASKET
_
F85906
CARBURETOR GASKET
_
F369529-1
Прокладка головки блока цилиндров
_
F476067
THERMOSTAT COVER GASKET
_
F481836
INTAKE GASKET
70
8180071
SPARK PLUG
71
F1987
PLAIN WASHER
72
F1883
HEX BOLT, 5/16 - 18 X 2-3/8
73
F499995
CYLINDER HEAD COVER
74
817778A1
THERMOSWITCH
75
F8056
SPRING LOCKWASHER
76
F1647
HEX NUT, 10 - 32
77
F1110
FILL HD SCREW, 1/4 - 20 X 5/8
78
F476066-1
Крышка термостата
79
F84504
Уплотнитель резиновый
80
F528068
Термостат
81
F476067
GASKET, THERMOSTAT COVER
82
F480518
Головка цилиндра
83
F19109
Заглушка
84
F369529-1
Прокладка головки блока цилиндров
85
F85211
STUD, REAR
86
FC529398
DECAL, WIRING
87
F1699
HEX HD SCREW, 1/4 - 20 X 1-1/8
88
F2008
HEX BOLT, 1/4 - 20 X 7/8
89
F85152-4
EXHAUST PORT COVER
90
F85154-1
GASKET, EXHAUST PORT PLATE
91
F85151-1
EXHAUST PORT PLATE
92
F1950
HEX HD SCREW, 10 - 24 X 5/8
93
F438066
BY PASS VALVE COVER
94
F85762
GASKET, BY PASS VALVE
95
F404268
SPRING, BY PASS VALVE
96
F85916-1
BY PASS VALVE
97
817861A7
CYLINDER W/CRANKCASE COVER
97
817912A9
Силовой агрегат без навесного оборудования, коллекторов, маховика, поддона и головки блока цилиндров
98
F2008
HEX CAP SCREW, 1/4 - 20 X 7/8
99
F1708
HEX HD SCREW, 1/4 - 20 X 1-3/8
100
F2000
HEX CAP SCREW, 5-16 - 18 X 3/4
101
F8096
SPRING LOCKWASHER
102
FA607689
BEARING TOWERSHAFT LOWER
