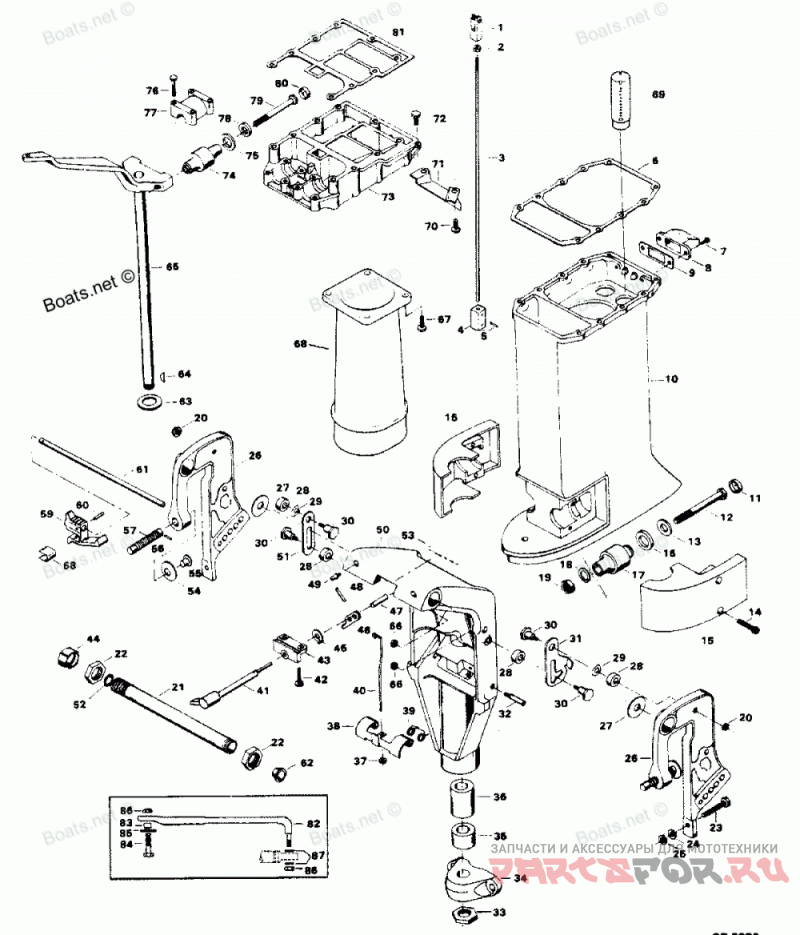

Motor Leg

Force H0606H84A

Force
#oem кодцена
1
F474704
COUPLER, SHIFT ROD
2
F1341
HEX NUT, 1/4 - 20
3
F522615
ROD, GEAR SHIFT - UPPER
4
F522704
COUPLING, GEAR SHIFT ROD
5
F8547
Пружинный Штифт
6
F522453
LEG EXHAUST GASKET
7
F1705
HEX CAP SCREW, 1/4 - 20 X 3/4
8
F474832-1
IDLE RELIEF COVER
9
F474833
GASKET, IDLE RELIEF COVER
10
F522133
MOTOR LEG
11
F474539
Амортизатор ударов
12
F2069
HEX CAP SCREW, 7/16 - 14 X 4
13
F474359
Шайба
14
F1257
HEX SOCKET HD CAP SCREW, S.S., 5/16 - 18 X 1 1/4
15
F522707
SHOCK MOUNT COVER, LOWER
16
F474847
Шайба
17
F474346-2
SHOCK MOUNT LOWER
18
F8067
SPRING LOCKWASHER
19
F2065
HEX NUT, 7/16 - 14
20
F7007
STOP NUT, 5/16 - 18
21
F522125-1
TUBE, STEERING SUPPORT
22
F1600
LOCK NUT
23
F1593
HEX HD SCREW, S.S., 3/8 - 16 X 3
24
F1904
PLAIN WASHER
25
F1346
HEX NUT, 3/8 - 16
26
F522032
STERN BRACKET - STARBOARD
-
F522532
STERN BRACKET - PORT
27
F522286
STERN BRACKET FRICTION WASHER
28
F269929
SPACER, TILT STOP 608 H4C ONLY
29
F1666
BOWED SPRING WASHER 608 H4C ONLY
30
F366350-1
TILT STOP PIVOT 608 H4C ONLY
31
F366426
TILT STOP - PORT 608 H4C ONLY
32
F366886
PIN 608 H4C ONLY
33
F84280
KING PIN NUT
34
F474607
KING PIN YOKE
35
F474990
Проставка
36
F191169-1
SWIVEL BRACKET BEARING
37
F1669
LOCK NUT 608 H4C ONLY
38
F366349
REVERSE LOCK 604 H4C ONLY
39
F366300
REVERSE LOCK SPRING 608 H4C ONLY
40
F474510
LINK 608 H4C ONLY
41
FA522827
HANDLE AND SHAFT 608 H4C ONLY
42
F1733
PAN HD SCREW, 10 - 24 X 9/16
43
F522884
Подшипник
44
F9018
Крышка
45
F522741
Стопорное кольцо
46
F366364
ARM, REVERSE LOCK 608 H4C ONLY
47
F483884
BEARING 608 H4C ONLY
48
F1836
SPRING PIN 608 H4C ONLY
49
F213274
Масленка
50
FA522072
SWIVEL BRACKET
51
F366433
TILT STOP, STARBOARD
52
F316599
SEAL, PIVOT TUBE
53
F529390-1
DECAL, REVERSE LOCK - USA 608 H4C ONLY
54
F24074
CLAMP SCREW FOOT
55
F353480
Шпилька
56
F8538
Пружинный Штифт
57
F474073-1
CLAMP SCREW
58
F286461
SPRING, LOCK BAR HANDLE 608 H4C ONLY
59
F433114
HANDLE, LOCK BAR 608 H4C ONLY
60
F1744
SPRING PIN 608 H4C ONLY
61
FA433113
STERN BRACKET LOCK BAR
62
F9052
Заглушка
63
F89011
SWIVEL BRACKET WASHER
64
F458498
Шпонка
65
FA522019
KING PIN ASSEMBLY
66
F7007
LOCK NUT, 5/16 - 18 608 H4C ONLY
67
F1864
HEX CAP SCREW, 1/4 - 20 X 3/4
68
F522660
LEG EXHAUST TUBE
69
F522779
BAFFLE, IDLE RELIEF
70
F1689
HEX CAP SCREW, 1/4 - 20 X 1/2
71
F474106-3
DEFLECTOR, WATER DISCHARGE
72
F1902
HEX CAP SCREW, 5/16 - 18 X 3/4
73
F522680
SPACER PLATE
74
F474965-1
SHOCK MOUNT UPPER
75
F474849
Шайба
76
F1581
HEX CAP SCREW, 1/4 - 20 X 1 1/4
77
F474946
SHOCK MOUNT COVER UPPER
78
F474355
Шайба
79
F1430
HEX CAP SCREW, 3/8 - 24 X 4
80
F474942
Амортизатор ударов
81
F522279
CYLINDER EXHAUST GASKET
82
F522881
LINK STEERING
83
F522359
SPACER STEERING LINK
84
F1469
SCREW 3/8 - 24 X 1-1/4
85
F2014
PLAIN WASHER, 3/8
86
F2093
STOP NUT, 3/8 - 24
87
F8038
PLAIN WASHER
