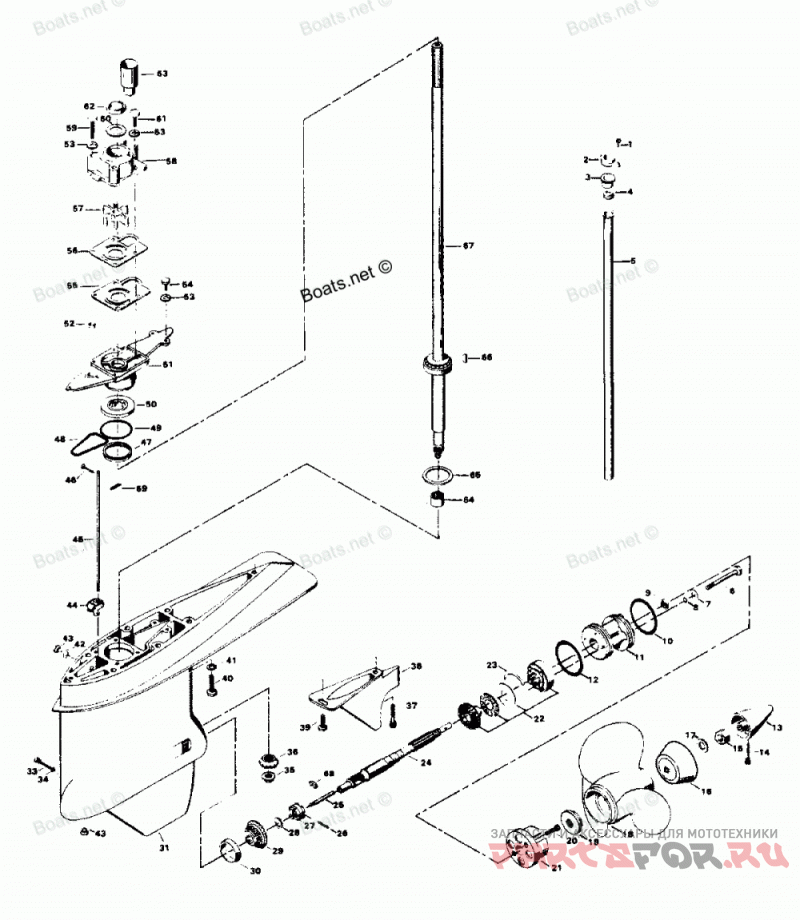

Gear Housing для лодочных моторов Force H0606H84A (1984)

Москва и регионы России

Gear Housing

Force H0606H84A

Gear Housing

#

oem код

название

цена

1

HEX HD SCREW, 10 - 24 X 9/16

HEX HD SCREW, 10 - 24 X 9/16

2

WATER LINE BRACKET

WATER LINE BRACKET

3

WATER LINE BRACKET GASKET

WATER LINE BRACKET GASKET

4

Уплотнение

Уплотнение

5

INLET WATER LINE

INLET WATER LINE

6

HEX CAP SCREW, 5/16 - 18 X 3-1/2

HEX CAP SCREW, 5/16 - 18 X 3-1/2

7

PLAIN WASHER

PLAIN WASHER

8

Уплотнение

Уплотнение

9

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

10

SEAL, O-RING

SEAL, O-RING

11

SPOOL, PROP SHAFT BEARING W/ BEARING

SPOOL, PROP SHAFT BEARING W/ BEARING

12

SEAL, O-RING

SEAL, O-RING

13

PROPELLER NUT

PROPELLER NUT

14

Штифт

Штифт

15

STOP NUT

STOP NUT

16

WASHER (ACCESSORY ITEM)

WASHER (ACCESSORY ITEM)

17

PLAIN WASHER

PLAIN WASHER

18

PROPELLER (ACCESSORY ITEM)

PROPELLER (ACCESSORY ITEM)

19

SPACER, PROPELLER

SPACER, PROPELLER

20

FILL HD SCREW, 1/4 - 20 X 3/4

FILL HD SCREW, 1/4 - 20 X 3/4

21

ANTI-CORROSION ANODE

ANTI-CORROSION ANODE

22

BEVEL GEAR REAR W/ BEARING CAGE

BEVEL GEAR REAR W/ BEARING CAGE

23

RETAINING RING, BEARING CAGE

RETAINING RING, BEARING CAGE

24

PROPELLER SHAFT ASSEMBLY

PROPELLER SHAFT ASSEMBLY

25

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

26

Пружинный Штифт

Пружинный Штифт

27

Муфта сцепления

Муфта сцепления

28

SPACER, BEVEL GEAR FRONT, SIZE .056

SPACER, BEVEL GEAR FRONT, SIZE .056

-

SPACER, BEVEL GEAR FRONT, SIZE .059

SPACER, BEVEL GEAR FRONT, SIZE .059

-

SPACER, BEVEL GEAR FRONT, SIZE .062

SPACER, BEVEL GEAR FRONT, SIZE .062

-

SPACER, BEVEL GEAR FRONT, SIZE .065

SPACER, BEVEL GEAR FRONT, SIZE .065

-

SPACER, BEVEL GEAR FRONT, SIZE .068

SPACER, BEVEL GEAR FRONT, SIZE .068

-

SPACER, BEVEL GEAR FRONT, SIZE .071

SPACER, BEVEL GEAR FRONT, SIZE .071

-

SPACER, BEVEL GEAR FRONT, SIZE .074

SPACER, BEVEL GEAR FRONT, SIZE .074

-

SPACER, BEVEL GEAR FRONT, SIZE .077

SPACER, BEVEL GEAR FRONT, SIZE .077

-

SPACER, BEVEL GEAR FRONT, SIZE .080

SPACER, BEVEL GEAR FRONT, SIZE .080

-

SPACER, BEVEL GEAR FRONT, SIZE .083

SPACER, BEVEL GEAR FRONT, SIZE .083

-

SPACER, BEVEL GEAR FRONT, SIZE .086

SPACER, BEVEL GEAR FRONT, SIZE .086

-

SPACER, BEVEL GEAR FRONT, SIZE .053

SPACER, BEVEL GEAR FRONT, SIZE .053

-

SPACER, BEVEL GEAR FRONT, SIZE .050

SPACER, BEVEL GEAR FRONT, SIZE .050

29

BEVEL GEAR FRONT W/ BEARING AND SHIMS

BEVEL GEAR FRONT W/ BEARING AND SHIMS

30

BEARING CUP

BEARING CUP

31

GEAR HOUSING

GEAR HOUSING

-

GEAR HOUSING COMPLETE

GEAR HOUSING COMPLETE

33

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

34

NYLTITE WASHER

NYLTITE WASHER

35

NUT, BEVEL PINION RETAINING

NUT, BEVEL PINION RETAINING

36

BEVEL PINION GEAR

BEVEL PINION GEAR

37

HEX SOCKET HD CAP SCREW, 1/4 - 20 X 3/4

HEX SOCKET HD CAP SCREW, 1/4 - 20 X 3/4

38

SNOUT

SNOUT

39

RETAINER, SNOUT

RETAINER, SNOUT

40

HEX CAP SCREW, 5/16 - 18 X 2-1/4

HEX CAP SCREW, 5/16 - 18 X 2-1/4

41

SPRING LOCKWASHER

SPRING LOCKWASHER

42

WASHER, GEAR HOUSING PLUG

WASHER, GEAR HOUSING PLUG

43

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

44

GEAR SHIFT ARM ASSY.

GEAR SHIFT ARM ASSY.

45

GEAR SHIFT ROD LOWER

GEAR SHIFT ROD LOWER

46

PIN, GEAR SHIFT ROD LOWER

PIN, GEAR SHIFT ROD LOWER

47

Кольцо уплотнительное

Кольцо уплотнительное

48

SEAL, GEAR HOUSING COVER

SEAL, GEAR HOUSING COVER

49

SEAL, DRIVESHAFT BEARING CAGE

SEAL, DRIVESHAFT BEARING CAGE

50

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

51

GEAR HOUSING COVER

GEAR HOUSING COVER

52

SEAL, SHIFT ROD LOWER

SEAL, SHIFT ROD LOWER

53

SPRING, LOCKWASHER

SPRING, LOCKWASHER

54

HEX CAP SCREW, 1/4 - 20 X 3/4

HEX CAP SCREW, 1/4 - 20 X 3/4

55

Прокладка водяной помпы

Прокладка водяной помпы

56

WATER PUMP BACK PLATE

WATER PUMP BACK PLATE

57

WATER PUMP IMPELLER

WATER PUMP IMPELLER

58

WATER PUMP BODY

WATER PUMP BODY

59

HEX CAP SCREW, 1/4 - 20 X 1-7/8

HEX CAP SCREW, 1/4 - 20 X 1-7/8

60

DISC, WATER PUMP

DISC, WATER PUMP

61

HEX CAP SCREW, 1/4 - 20 X 1-3/8

HEX CAP SCREW, 1/4 - 20 X 1-3/8

62

SEAL, DRIVESHAFT - WATER PUMP

SEAL, DRIVESHAFT - WATER PUMP

63

SEAL, INLET WATER LINE LOWER

SEAL, INLET WATER LINE LOWER

64

BEARING, DRIVESHAFT LOWER

BEARING, DRIVESHAFT LOWER

65

SHIM, DRIVESHAFT BEARING - UPPER, SIZE .003

SHIM, DRIVESHAFT BEARING - UPPER, SIZE .003

-

SHIM, DRIVESHAFT BEARING - UPPER, SIZE .005

SHIM, DRIVESHAFT BEARING - UPPER, SIZE .005

-

SHIM, DRIVESHAFT BEARING - UPPER, SIZE .007

SHIM, DRIVESHAFT BEARING - UPPER, SIZE .007

-

SHIM, DRIVESHAFT BEARING - UPPER, SIZE .010

SHIM, DRIVESHAFT BEARING - UPPER, SIZE .010

66

Шпонка

Шпонка

67

DRIVESHAFT

DRIVESHAFT

68

YOKE, GEARSHIFT ARM

YOKE, GEARSHIFT ARM

69

Шплинт

Шплинт

WATER PUMP KIT.

WATER PUMP KIT.

SEAL KIT, GEAR HOUSING.

SEAL KIT, GEAR HOUSING.
