Power Head для лодочных моторов Force H0357S84A (1984)

Москва и регионы России

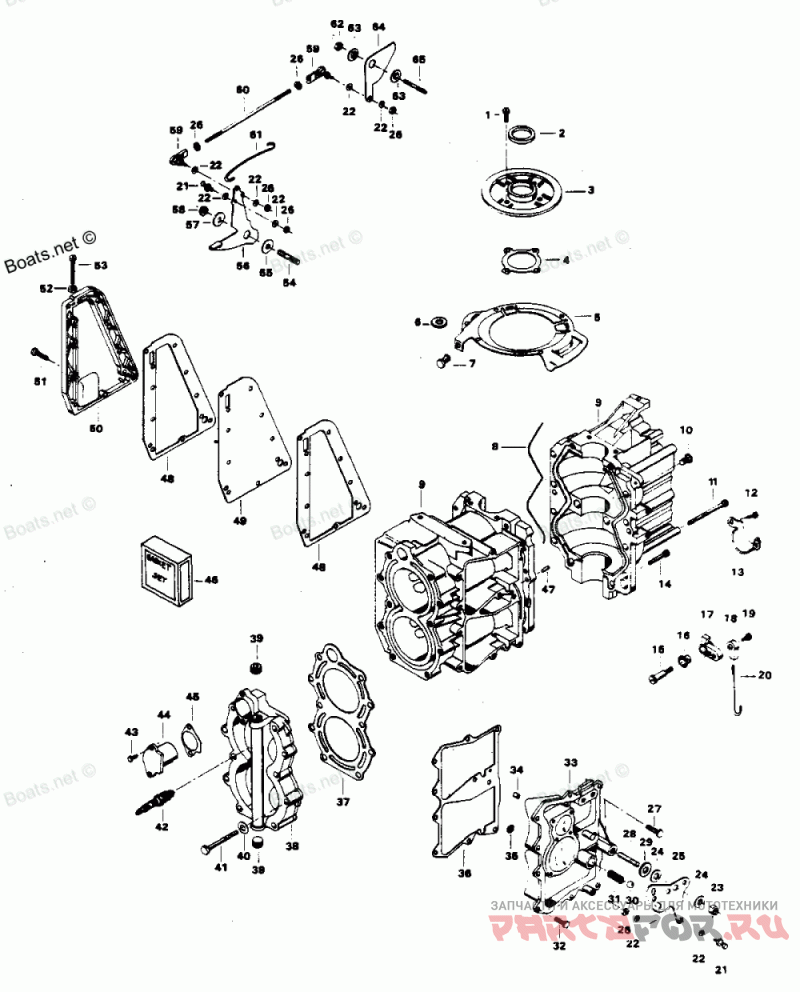

Power Head

Force H0357S84A

Power Head

#

oem код

название

цена

1

FILL HD SCREW, 1/4 - 20 X 3/4

FILL HD SCREW, 1/4 - 20 X 3/4

2

SEAL, CRANKSHAFT UPPER MAIN

SEAL, CRANKSHAFT UPPER MAIN

3

CRANKSHAFT BEARING CAGE

CRANKSHAFT BEARING CAGE

4

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

5

MAGNETO STATOR RING

MAGNETO STATOR RING

6

PLAIN WASHER

PLAIN WASHER

7

PLASTI-RIVET

PLASTI-RIVET

8

SEAL, CRANKCASE PARTING LINE

SEAL, CRANKCASE PARTING LINE

9

CYLINDER W/CRANKCASE COVER

CYLINDER W/CRANKCASE COVER

-

SHORT BLOCK FOR ALTERNATOR MODELS.

SHORT BLOCK FOR ALTERNATOR MODELS.

10

HEX HD SCREW, 1/4 - 20 X 3/4

HEX HD SCREW, 1/4 - 20 X 3/4

11

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 2-3/4

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 2-3/4

12

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

13

CLAMP, SOLENOID FOR ELECTRIC START

CLAMP, SOLENOID FOR ELECTRIC START

14

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1-1/4

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1-1/4

15

SWIVEL, SHIFT INTERLOCK LEVER

SWIVEL, SHIFT INTERLOCK LEVER

16

Подшипник

Подшипник

17

LEVER, SHIFT INTERLOCK

LEVER, SHIFT INTERLOCK

18

BEARING, SHIFT INTERLOCK ROD

BEARING, SHIFT INTERLOCK ROD

19

SWIVEL, SHIFT INTERLOCK BEARING

SWIVEL, SHIFT INTERLOCK BEARING

20

ROD, SHIFT INTERLOCK

ROD, SHIFT INTERLOCK

21

ROD END CONNECTOR STUD

ROD END CONNECTOR STUD

22

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

23

LOCK NUT, 3/8 - 16

LOCK NUT, 3/8 - 16

24

BEARING, SHIFT LEVER

BEARING, SHIFT LEVER

25

LEVER, GEAR SHIFT

LEVER, GEAR SHIFT

26

HEX NUT, 10 - 32

HEX NUT, 10 - 32

27

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

28

STUD, GEAR SHIFT LEVER

STUD, GEAR SHIFT LEVER

29

PLAIN WASHER

PLAIN WASHER

30

BALL, SHIFT LEVER DETENT

BALL, SHIFT LEVER DETENT

31

SPRING, SHIFT DETENT

SPRING, SHIFT DETENT

32

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

33

TRANSFER PORT COVER

TRANSFER PORT COVER

34

Клапан

Клапан

35

SCREEN, CYLINDER DRAIN

SCREEN, CYLINDER DRAIN

36

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

37

Прокладка

Прокладка

38

Головка цилиндра

Головка цилиндра

39

PLUG, CYLINDER HEAD

PLUG, CYLINDER HEAD

40

PLAIN WASHER (ELECTRIC START)

PLAIN WASHER (ELECTRIC START)

41

SCREW, CYLINDER HEAD

SCREW, CYLINDER HEAD

42

SPARK PLUG (L 82)

SPARK PLUG (L 82)

-

SPARK PLUG (CHAMPION QL-77-J4) FOR CANADA

SPARK PLUG (CHAMPION QL-77-J4) FOR CANADA

43

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

44

Крышка термостата

Крышка термостата

45

GASKET, THERMOSTAT COVER

GASKET, THERMOSTAT COVER

46

Комплет прокладок

Комплет прокладок

-

GASKET, FUEL PUMP VALVE

GASKET, FUEL PUMP VALVE

-

GASKET, CARBURETOR ADAPTER

GASKET, CARBURETOR ADAPTER

-

GASKET, DEFLECTOR PLATE

GASKET, DEFLECTOR PLATE

-

GASKET, FUEL PUMP BOWL

GASKET, FUEL PUMP BOWL

-

Прокладка

Прокладка

-

GASKET, THERMOSTAT COVER

GASKET, THERMOSTAT COVER

-

GASKET, EXHAUST PORT PLATE

GASKET, EXHAUST PORT PLATE

-

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

-

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

-

GASKET, CYLINDER EXHAUST

GASKET, CYLINDER EXHAUST

-

GASKET, LEG EXHAUST

GASKET, LEG EXHAUST

-

Прокладка

Прокладка

47

Палец

Палец

48

GASKET, EXHAUST PORT PLATE

GASKET, EXHAUST PORT PLATE

49

EXHAUST PORT PLATE

EXHAUST PORT PLATE

50

EXHAUST PORT COVER

EXHAUST PORT COVER

51

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

52

HEX NUT

HEX NUT

53

FILL HD SCREW, 1/4 - 20 X 1-3/4

FILL HD SCREW, 1/4 - 20 X 1-3/4

54

STUD, MAGNETO CONTROL LEVER

STUD, MAGNETO CONTROL LEVER

55

Подшипник

Подшипник

56

MAGNETO CONTROL LEVER

MAGNETO CONTROL LEVER

57

Шайба

Шайба

58

STOP NUT

STOP NUT

59

JOINT, BALL ASSEMBLY

JOINT, BALL ASSEMBLY

60

ROD, THROTTLE CAM

ROD, THROTTLE CAM

61

LINK, MAGNETO STATOR

LINK, MAGNETO STATOR

62

LOCK NUT

LOCK NUT

63

BEARING, THROTTLE CAM

BEARING, THROTTLE CAM

64

THROTTLE CAM

THROTTLE CAM

65

STUD, THROTTLE CAM

STUD, THROTTLE CAM
