Топливная система для лодочных моторов Force H0152H84K (1984)

Москва и регионы России

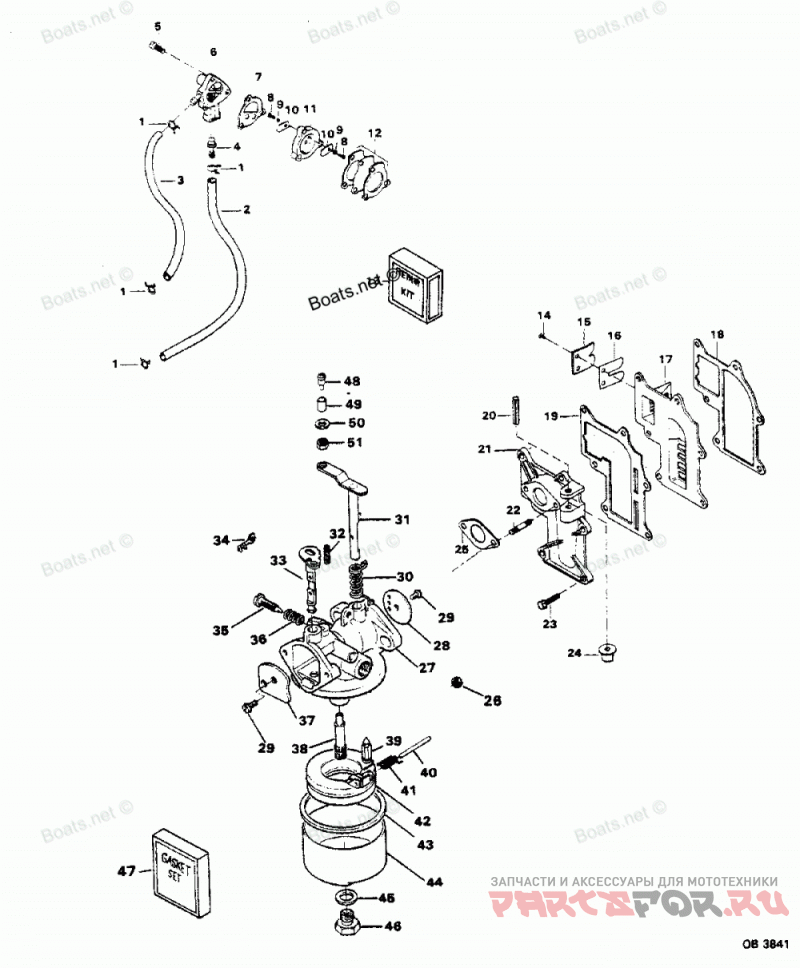

Топливная система

Force H0152H84K

Топливная система

#

oem код

название

цена

1

Зажим

Зажим

2

FUEL LINE (152H3J, 152B3J)

FUEL LINE (152H3J, 152B3J)

3

Трубопровод

Трубопровод

4

FUEL PUMP FILTER (152H3J, 152B3J)

FUEL PUMP FILTER (152H3J, 152B3J)

5

FILL HD SCREW, 10 - 24 X 1-1/16 (152H3J, 152B3J)

FILL HD SCREW, 10 - 24 X 1-1/16 (152H3J, 152B3J)

6

FUEL PUMP COVER (152H3J, 152B3J)

FUEL PUMP COVER (152H3J, 152B3J)

7

GASKET, FUEL PUMP (152H3J, 152B3J)

GASKET, FUEL PUMP (152H3J, 152B3J)

8

PAN HD SCREW, 4 - 40 X 3/16 (152H3J, 152B3J)

PAN HD SCREW, 4 - 40 X 3/16 (152H3J, 152B3J)

9

PLAIN WASHER (152H3J, 152B3J)

PLAIN WASHER (152H3J, 152B3J)

10

REED FUEL PUMP (152H3J, 152B3J)

REED FUEL PUMP (152H3J, 152B3J)

11

FUEL PUMP REED PLATE

FUEL PUMP REED PLATE

12

FUEL PUMP DIAPHRAGM W/GASKETS (152H3J, 152B3J)

FUEL PUMP DIAPHRAGM W/GASKETS (152H3J, 152B3J)

13

REPAIR PARTS KIT.

REPAIR PARTS KIT.

14

RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

15

REED STOP

REED STOP

16

REED

REED

17

REED PLATE

REED PLATE

18

GASKET, REED PLATE

GASKET, REED PLATE

19

Прокладка

Прокладка

20

SPRING PIN (152H3J, 152B3J)

SPRING PIN (152H3J, 152B3J)

21

Коллектор

Коллектор

22

STUD, CARBURETOR

STUD, CARBURETOR

23

HEX HD SCREW, 1/4 - 20 X 7/8

HEX HD SCREW, 1/4 - 20 X 7/8

24

PULLEY, STARTER ROPE (152H3J, 152B3J)

PULLEY, STARTER ROPE (152H3J, 152B3J)

25

CARBURETOR GASKET

CARBURETOR GASKET

26

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

27

CARBURETOR COMPLETE (LMB-229)

CARBURETOR COMPLETE (LMB-229)

28

Клапан

Клапан

29

SCREW, CHOKE AND THROTTLE VALVES

SCREW, CHOKE AND THROTTLE VALVES

30

SPRING, THROTTLE RETURN

SPRING, THROTTLE RETURN

31

SHAFT ASSEMBLY, THROTTLE

SHAFT ASSEMBLY, THROTTLE

32

SPRING, CHOKE STOP

SPRING, CHOKE STOP

33

SHAFT ASSEMBLY, CHOKE

SHAFT ASSEMBLY, CHOKE

34

RETAINER, CHOKE RED

RETAINER, CHOKE RED

35

NEEDLE, IDLE

NEEDLE, IDLE

36

SPRING, IDLE NEEDLE

SPRING, IDLE NEEDLE

37

VALVE, CHOKE

VALVE, CHOKE

38

Наконечник

Наконечник

39

KIT, VALVE SEAT

KIT, VALVE SEAT

40

SHAFT, FLOAT ASSEMBLY

SHAFT, FLOAT ASSEMBLY

41

SPRING, FLOAT SUPPORT

SPRING, FLOAT SUPPORT

42

FLOAT ASSEMBLY

FLOAT ASSEMBLY

43

GASKET, BODY TO BOWL

GASKET, BODY TO BOWL

44

BOWL, FUEL

BOWL, FUEL

45

GASKET, BOWL RETAINER

GASKET, BOWL RETAINER

46

JET ASSEMBLY - MAIN FUEL (.0625)

JET ASSEMBLY - MAIN FUEL (.0625)

47

GASKET KIT, CARBURETOR

GASKET KIT, CARBURETOR

-

PLUG KIT (NOT SHOWN)

PLUG KIT (NOT SHOWN)

48

SHAFT, THROTTLE CAM ROLLER

SHAFT, THROTTLE CAM ROLLER

49

ROLLER, THROTTLE CAM

ROLLER, THROTTLE CAM

50

PLAIN WASHER

PLAIN WASHER

51

LOCK NUT, 8 - 32

LOCK NUT, 8 - 32
