Топливная система для лодочных моторов Force H0092H84L (1984)

Москва и регионы России

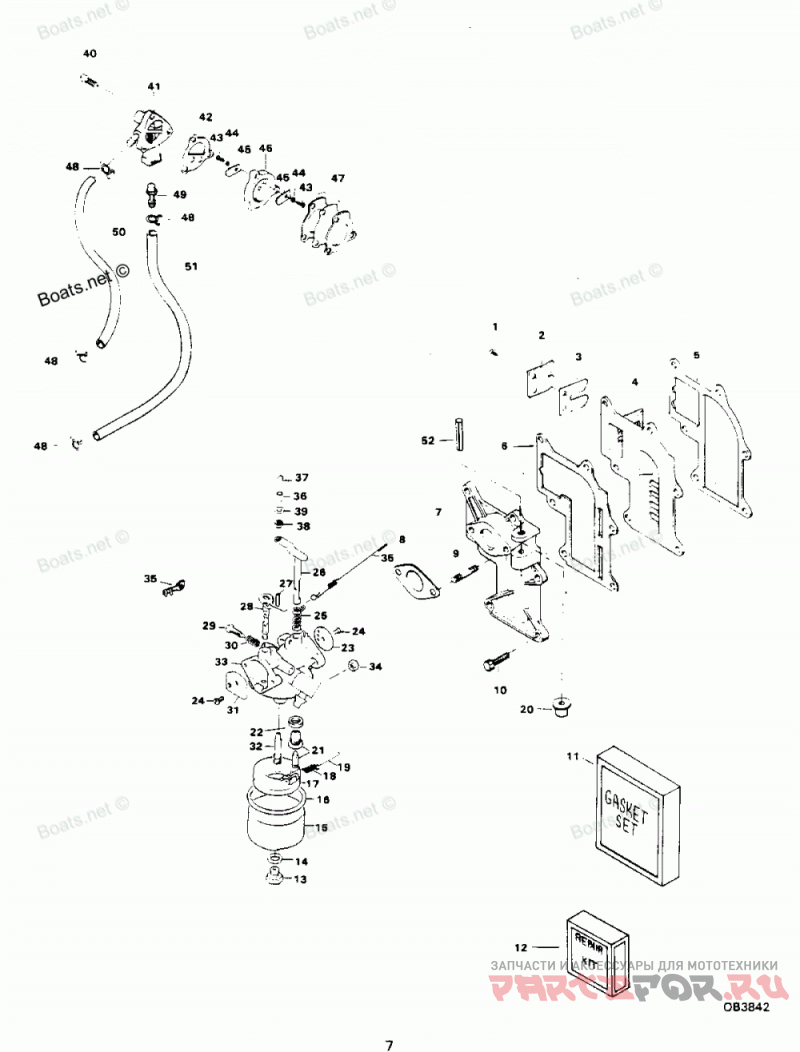

Топливная система

Force H0092H84L

Топливная система

#

oem код

название

цена

1

RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

2

REED STOP

REED STOP

3

REED

REED

4

REED PLATE

REED PLATE

5

GASKET, REED PLATE

GASKET, REED PLATE

6

Прокладка

Прокладка

7

Коллектор

Коллектор

8

GASKET, CARBURETOR

GASKET, CARBURETOR

9

STUD, CARBURETOR

STUD, CARBURETOR

10

HEX HD SCREW, 1/4 - 20 X 7/8

HEX HD SCREW, 1/4 - 20 X 7/8

11

Комплет прокладок

Комплет прокладок

12

REPAIR KIT

REPAIR KIT

13

JET ASSY., MAIN FUEL (.046)

JET ASSY., MAIN FUEL (.046)

14

GASKET, BOWL RETAINER

GASKET, BOWL RETAINER

15

BOWL, FUEL

BOWL, FUEL

16

GASKET, BOWL

GASKET, BOWL

17

FLOAT ASSY.

FLOAT ASSY.

18

SPRING, FLOAT SUPPORT

SPRING, FLOAT SUPPORT

19

SHAFT, FLOAT

SHAFT, FLOAT

20

PULLEY, STARTER ROPE

PULLEY, STARTER ROPE

21

KIT, VALVE SEAT ASSEMBLY

KIT, VALVE SEAT ASSEMBLY

-

KIT, PLUG (NOT SHOWN)

KIT, PLUG (NOT SHOWN)

22

Прокладка уплотнительная клапана

Прокладка уплотнительная клапана

23

Клапан

Клапан

24

SCREW, CHOKE AND THROTTLE VALVE

SCREW, CHOKE AND THROTTLE VALVE

25

SPRING, THROTTLE RETURN

SPRING, THROTTLE RETURN

26

SHAFT ASSY., THROTTLE

SHAFT ASSY., THROTTLE

27

SPRING, CHOKE STOP

SPRING, CHOKE STOP

28

SHAFT ASSY., CHOKE

SHAFT ASSY., CHOKE

29

NEEDLE, IDLE

NEEDLE, IDLE

30

SPRING, IDLE NEEDLE

SPRING, IDLE NEEDLE

31

VALVE, CHOKE

VALVE, CHOKE

32

Наконечник

Наконечник

33

CARBURETOR COMPLETE (LMB-228)

CARBURETOR COMPLETE (LMB-228)

34

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

35

RETAINER, CHOKE ROD

RETAINER, CHOKE ROD

36

ROLLER, THROTTLE CAM

ROLLER, THROTTLE CAM

37

SHAFT, THROTTLE CAM ROLLER

SHAFT, THROTTLE CAM ROLLER

38

LOCK NUT, 8 - 32

LOCK NUT, 8 - 32

39

PLAIN WASHER (THROTTLE ROLLER SHAFT)

PLAIN WASHER (THROTTLE ROLLER SHAFT)

40

FILL HD SCREW, 10 - 24 X 1 - 1/16

FILL HD SCREW, 10 - 24 X 1 - 1/16

41

FUEL PUMP COVER

FUEL PUMP COVER

42

Прокладка

Прокладка

43

PAN HD SCREW, 4 - 40 X 3/16

PAN HD SCREW, 4 - 40 X 3/16

44

PLAIN WASHER

PLAIN WASHER

45

REED FUEL PUMP

REED FUEL PUMP

46

FUEL PUMP REED PLATE

FUEL PUMP REED PLATE

47

FUEL PUMP DIAPHRAGM W/GASKETS

FUEL PUMP DIAPHRAGM W/GASKETS

48

Зажим

Зажим

49

FUEL PUMP FILTER

FUEL PUMP FILTER

50

Трубопровод

Трубопровод

51

FUEL LINE (FUEL PUMP TO BUSHING)

FUEL LINE (FUEL PUMP TO BUSHING)

52

Пружинный Штифт

Пружинный Штифт
