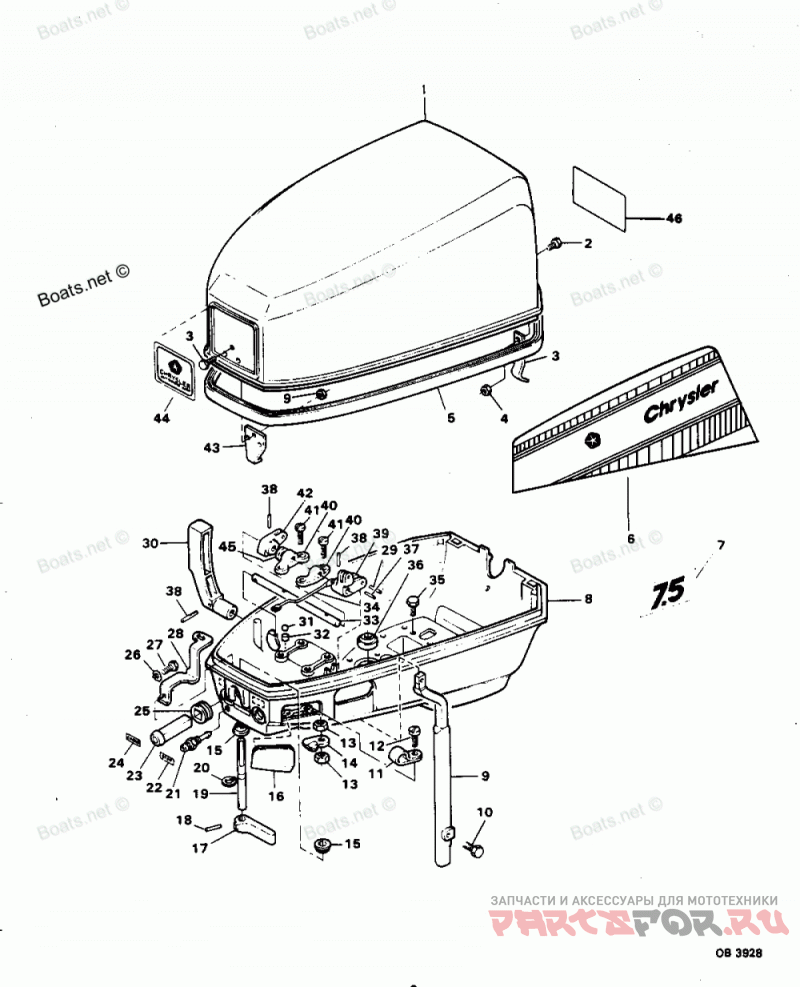

Engine Cover And Support Plate

Force H0072C84G

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER

ENGINE COVER

-

ENGINE COVER COMPLETE.

ENGINE COVER COMPLETE.

2

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

3

RETAINER ENGINE COVER

RETAINER ENGINE COVER

4

ELASTIC STOP NUT, 10 - 24

ELASTIC STOP NUT, 10 - 24

5

ENGINE COVER PACKING

ENGINE COVER PACKING

6

DECAL ENGINE COVER PORT

DECAL ENGINE COVER PORT

-

DECAL ENGINE COVER STARBOARD

DECAL ENGINE COVER STARBOARD

7

DECAL, NUMERAL 7.5

DECAL, NUMERAL 7.5

8

SUPPORT PLATE W/EYELET

SUPPORT PLATE W/EYELET

9

ROD GEAR SHIFT UPPER

ROD GEAR SHIFT UPPER

10

HEX HD SCREW, 10 - 24 X 5/8

HEX HD SCREW, 10 - 24 X 5/8

11

CLAMP LEAD WIRE

CLAMP LEAD WIRE

12

SLOTTED FILL HD SCREW, 1/4 - 20 X 1/2

SLOTTED FILL HD SCREW, 1/4 - 20 X 1/2

13

NUT, 5/16 - 18

NUT, 5/16 - 18

14

CAM COVER LATCH

CAM COVER LATCH

15

BEARING (NYLINER)

BEARING (NYLINER)

16

GROMMET REMOTE THROTTLE CABLE

GROMMET REMOTE THROTTLE CABLE

17

HANDLE LATCH

HANDLE LATCH

18

SPRING PIN, 1/8 X 5/8

SPRING PIN, 1/8 X 5/8

19

SHAFT COVER LATCH

SHAFT COVER LATCH

20

Прокладка

Прокладка

21

BUSHING FUEL LINE

BUSHING FUEL LINE

22

DECAL STOP - USA

DECAL STOP - USA

-

DECAL STOP - CANADA

DECAL STOP - CANADA

23

CHOKE KNOB

CHOKE KNOB

24

DECAL CHOKE - USA

DECAL CHOKE - USA

-

DECAL CHOKE - CANADA

DECAL CHOKE - CANADA

25

GROMMET, CHOKE ROD

GROMMET, CHOKE ROD

26

LOCKWASHER, #10

LOCKWASHER, #10

27

HEX HD SCREW, 10 - 24 X 3/8

HEX HD SCREW, 10 - 24 X 3/8

28

LINK CHOKE KNOB

LINK CHOKE KNOB

29

SPRING PIN, 1/8 X 13/16

SPRING PIN, 1/8 X 13/16

30

Вал переключения скоростей

Вал переключения скоростей

31

BALL CHECK

BALL CHECK

32

PAD SHIFT DETENT

PAD SHIFT DETENT

33

SHAFT GEAR SHIFT LEVER

SHAFT GEAR SHIFT LEVER

34

LINK STARTER INTERLOCK

LINK STARTER INTERLOCK

35

HEX HD SCREW, 1/4 - 20 X 1/2

HEX HD SCREW, 1/4 - 20 X 1/2

36

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

37

SPRING PIN, 3/32 X 1/2

SPRING PIN, 3/32 X 1/2

38

SPRING PIN, 1/8 X 5/8

SPRING PIN, 1/8 X 5/8

39

LEVER GEAR SHIFT

LEVER GEAR SHIFT

40

BEARING, SHIFT LEVER SHAFT

BEARING, SHIFT LEVER SHAFT

41

FILL HD SCREW, 1/4 - 20 X 1/2

FILL HD SCREW, 1/4 - 20 X 1/2

42

LEVER SHIFT INTERLOCK

LEVER SHIFT INTERLOCK

43

BRACKET COVER LATCH

BRACKET COVER LATCH

44

DECAL ENGINE COVER FRONT

DECAL ENGINE COVER FRONT

45

WASHER BOWED SPRING

WASHER BOWED SPRING

46

DECAL, ENGINE COVER REAR

DECAL, ENGINE COVER REAR
