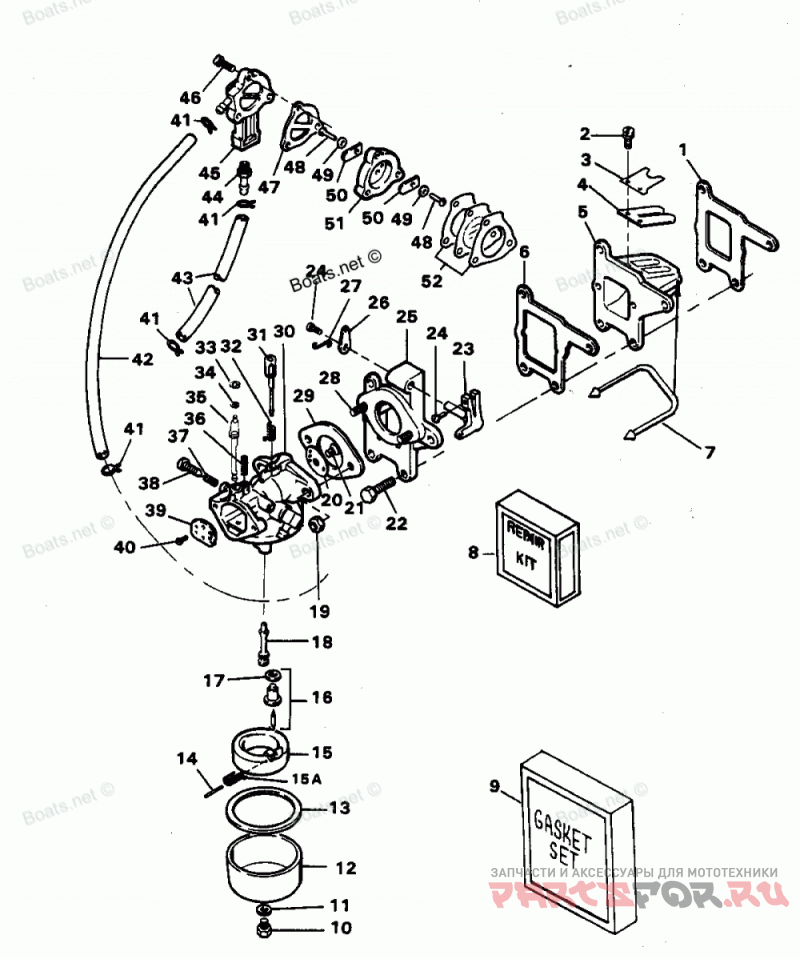

Топливная система

Force H0071H84E

Force
#oem кодцена
1
F525159
GASKET, REED PLATE
2
F1755
RD HD SCREW & SPRING LOCKWASHER ASSEMBLY, 6 - 32 X 5/16
3
F526161
REED STOP
4
F31160-1
REED
5
F2A525158
PLATE REED
6
F525168
GASKET MANIFOLD
7
F525984
SEAL, REED PLATE
8
F10083
REPAIR KIT.
9
FK10069
GASKET KIT.
10
F10089
JET ASSEMBLY, STD. .041 SEA LEVEL - 3000 FT.
-
F10097
JET ASSEMBLY, OPT. .040 3000 - 5000 FT.
-
F10096
JET ASSEMBLY, OPT. .039 5100 - 7000 FT.
-
F10093
JET ASSEMBLY, OPT. .038 7000 FT. & UP
11
F10090
GASKET FUEL BOWL RETAINER
12
F10058
FUEL BOWL
13
F10068
GASKET BODY TO BOWL
14
F10064
SHAFT - FLOAT
15
F10063
Поплавок
15A
F10084
FLOAT SUPPORT SPRING
16
F10101
KIT - VALVE, SEAT, SPRING & GASKET
17
F10066
GASKET VALVE SEAT
18
F10088
Наконечник
19
F1490
NUT, 1/4 - 20
20
F10091
VALVE THROTTLE
21
F10071
SCREW, THROTTLE VALVE
22
F1532
HEX HD SCREW, 1/4 - 20 X 1
23
F525316-1
FOLLOWER THROTTLE CAM
24
F1772
HEX HD SCREW, 8 - 32 X 1/2
25
FA525167
Коллектор
26
F525081-1
LEVER THROTTLE
27
F525193
LINK THROTTLE
28
F2788004
STUD CARBURETOR
29
F18906
GASKET CARBURETOR
30
817966A4
CARBURETOR
31
F10081
SHAFT ASSEMBLY - THROTTLE
32
F10085
SPRING THROTTLE RETURN
33
F90807
Стопорное кольцо
34
F2042
Шайба
35
F10061
CHOKE SHAFT ASSEMBLY
36
F10072
SPRING CHOKE STOP
37
F10073
SPRING IDLE NEEDLE
38
F10077
NEEDLE - IDLE
39
F10062
CHOKE VALVE ASSEMBLY
40
F10070
SCREW ASSEMBLY - CHOKE VALVE
41
F2706772
CLAMP HOSE
42
FA84253
Шланг
43
FA84253
Шланг
44
F901811
FILTER FUEL PUMP
45
F901746-2
COVER FUEL PUMP
46
F1069
FILL HD SCREW, 10 - 24 X 1 1/16
47
F24748-2
GASKET FUEL PUMP
48
F1286
PAN HD SCREW, #4 - 40 X 3/16
49
F8003
PLAIN WASHER
50
F18160-2
REED FUEL PUMP
51
F2A24757
PLATE FUEL PUMP REED
52
818043A1
DIAPHRAGM, FUEL PUMP W/GASKETS
53
F10116
BODY CHANNEL PLUG KIT (NOT SHOWN)
