Gear Housing для лодочных моторов Force H0042F84A (1984)

Москва и регионы России

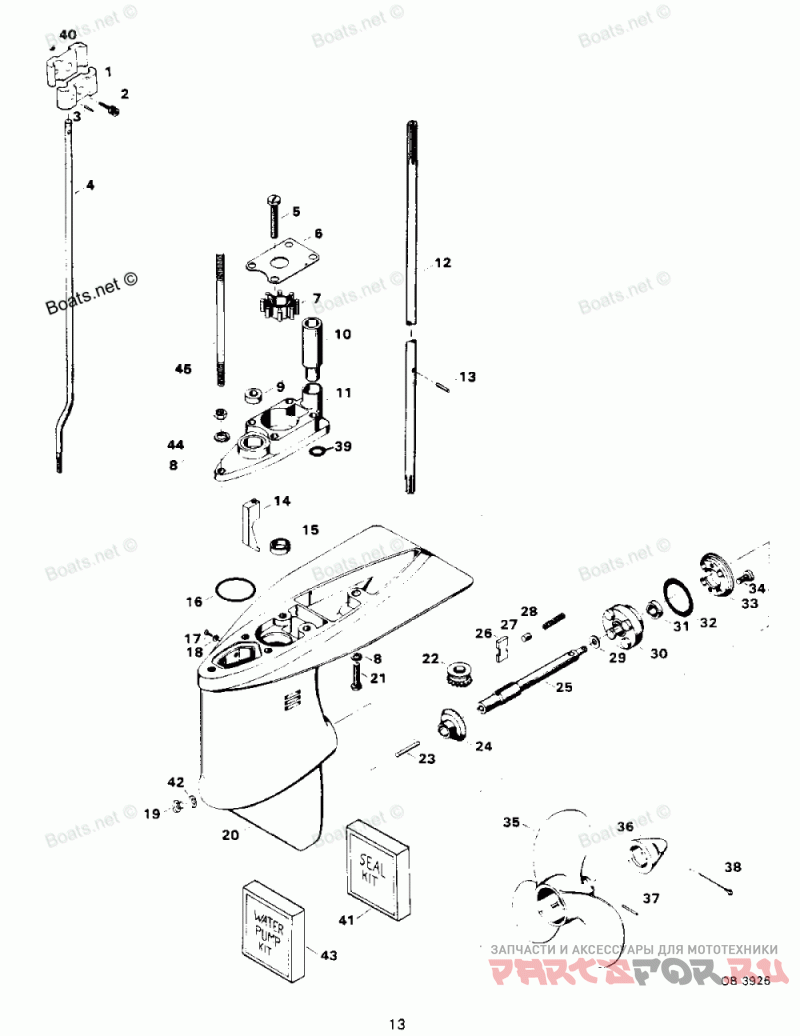

Gear Housing

Force H0042F84A

Gear Housing

#

oem код

название

цена

1

COUPLING, GEAR SHIFT ROD (2 PARTS MAKE 1 SET)

COUPLING, GEAR SHIFT ROD (2 PARTS MAKE 1 SET)

2

SOCKET HD SCREW W/LOCKWASHER, 10 - 24 X 5/8

SOCKET HD SCREW W/LOCKWASHER, 10 - 24 X 5/8

3

Пружинный Штифт

Пружинный Штифт

4

ROD, GEAR SHIFT LOWER

ROD, GEAR SHIFT LOWER

5

FILL HD SCREW, 1/4 - 20 X 1 1/4

FILL HD SCREW, 1/4 - 20 X 1 1/4

6

Пластина водяной помпы

Пластина водяной помпы

7

Импиллер

Импиллер

8

SPRING LOCKWASHER

SPRING LOCKWASHER

9

SEAL, SHIFT ROD

SEAL, SHIFT ROD

10

SEAL, WATERLINE

SEAL, WATERLINE

11

WATER PUMP BODY W/PLUG

WATER PUMP BODY W/PLUG

12

DRIVESHAFT - STANDARD LEG

DRIVESHAFT - STANDARD LEG

13

PIN, WATER PUMP IMPELLER DRIVE

PIN, WATER PUMP IMPELLER DRIVE

14

CAM, CLUTCH SHIFT

CAM, CLUTCH SHIFT

15

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

16

Уплотнение

Уплотнение

17

FILL HD SCREW, 10 - 24 X 1/4

FILL HD SCREW, 10 - 24 X 1/4

18

Шайба

Шайба

19

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

20

GEAR HOUSING

GEAR HOUSING

-

GEAR HOUSING COMPLETE.

GEAR HOUSING COMPLETE.

21

HEX CAP SCREW, 1/4 - 20 X 1

HEX CAP SCREW, 1/4 - 20 X 1

22

BEVEL PINION GEAR

BEVEL PINION GEAR

23

CLUTCH SHIFT PIN

CLUTCH SHIFT PIN

24

BEVEL GEAR W/BEARING

BEVEL GEAR W/BEARING

25

Вал гребного винта

Вал гребного винта

26

Муфта сцепления

Муфта сцепления

27

PIN, CLUTCH GUIDE

PIN, CLUTCH GUIDE

28

Пружинка

Пружинка

29

Проставка

Проставка

30

BEARING CAGE

BEARING CAGE

31

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

32

SEAL, "O" RING

SEAL, "O" RING

33

RETAINER, PROPELLER SHAFT BEARING CAGE

RETAINER, PROPELLER SHAFT BEARING CAGE

34

FILL HD SCREW, 1/4 - 20 X 5/8

FILL HD SCREW, 1/4 - 20 X 5/8

35

PROPELLER

PROPELLER

36

PROPELLER NUT

PROPELLER NUT

37

PROPELLER PIN, PACK OF 3 AND

PROPELLER PIN, PACK OF 3 AND

38

Шплинт

Шплинт

39

PLUG, WATER PUMP

PLUG, WATER PUMP

40

LOCK NUT, 10 - 24

LOCK NUT, 10 - 24

41

GEAR HOUSING SEAL KIT.

GEAR HOUSING SEAL KIT.

42

Шайба

Шайба

43

WATER PUMP KIT.

WATER PUMP KIT.

-

WATERLINE SEAL

WATERLINE SEAL

-

BODY, WATER PUMP

BODY, WATER PUMP

-

PLATE, WATER PUMP TOP

PLATE, WATER PUMP TOP

-

Импеллер

Импеллер

-

Уплотнение

Уплотнение

-

FILL H.M.S. 1/4-20 X 1-1/4

FILL H.M.S. 1/4-20 X 1-1/4

44

HEX NUT

HEX NUT

45

Шпилька

Шпилька

-

DRIVESHAFT

DRIVESHAFT

-

EXTENSION, MOTOR LEG

EXTENSION, MOTOR LEG

-

WATER LINE

WATER LINE

-

ROD, GEAR SHIFT LOWER

ROD, GEAR SHIFT LOWER

-

STUD, GEAR HOUSING FRONT

STUD, GEAR HOUSING FRONT

-

HEX CAP SCREW, 1/4 - 20 X 6 (MOTOR LEG EXTENSION REAR)

HEX CAP SCREW, 1/4 - 20 X 6 (MOTOR LEG EXTENSION REAR)
