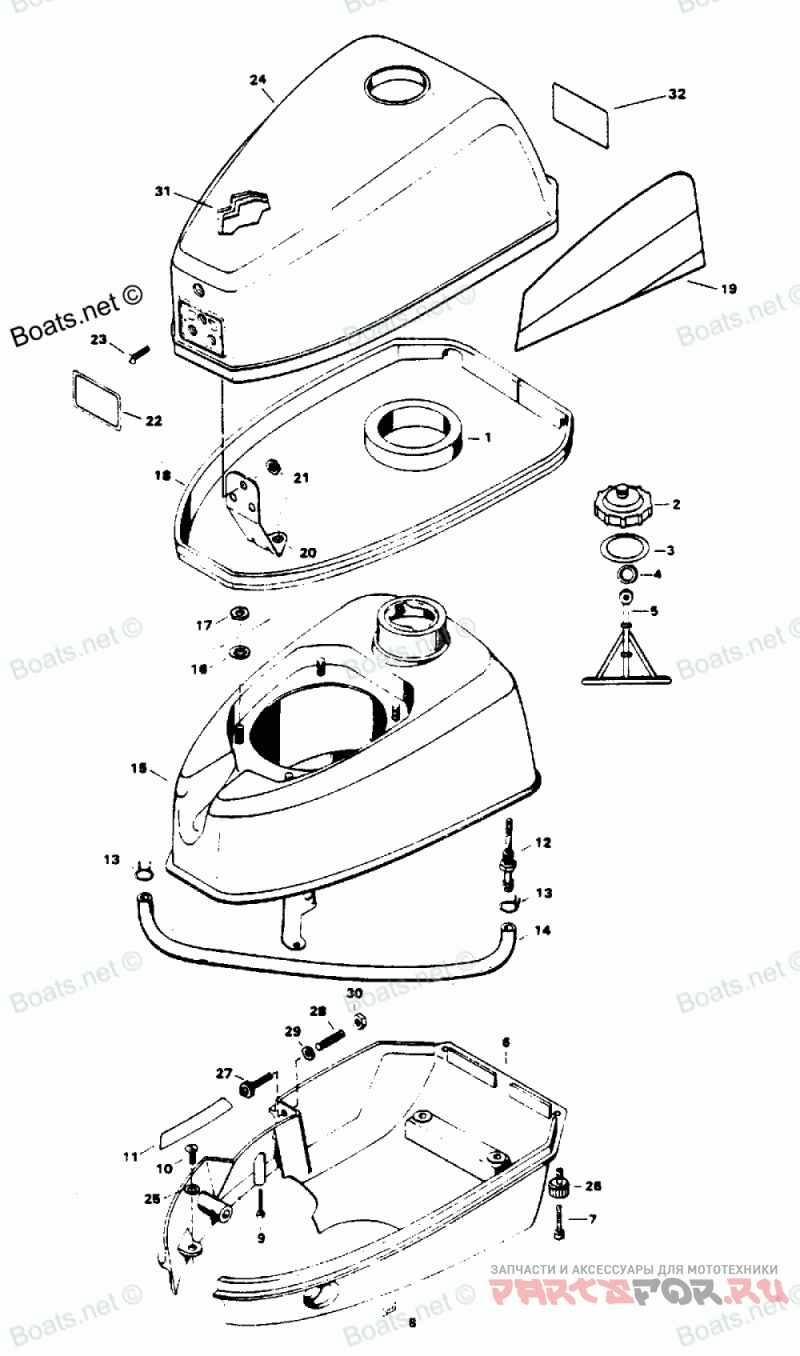

Engine Cover And Fuel Tank

Force H0042C84L

Force
#oem кодцена
1
F459186
COLLAR, FUEL TANK
2
F521251-3
GAS CAP COMPLETE.
3
F17980
FUEL CAP GASKET
4
F427249
Стопорное кольцо
5
F17938
Фиксатор
6
F535944
ENGINE COVER, BOTTOM
7
F1995
SLOTTED FILL HD SCREW, 10 24 X 1
8
F521894
DECAL, "OFF" (USA)
-
FC521894
DECAL, "OFF" (CANADA)
9
F1829
FILL HD M. SCREW, 10 - 24 x 7/8
10
F1035
SLOTTED FILL HD SCREW, 1/4
11
F521391-1
DECAL, SPEED RANGE USA
12
F521811
FITTING, GAS TANK
13
F2706772
Зажим
14
FA901754
Шланг
15
F521034-1
Топливный бак
16
F8061
INTERNAL TOOTH LOCKWASHER
18
FK525713
PACKING, TOP COVER TRIM
19
FA593397
DECAL, ENGINE COVER - PORT
-
A310397
DECAL, ENGINE COVER - PORT
-
FA593396
DECAL, ENGINE COVER - STARBOARD
-
A310396
DECAL, ENGINE COVER - STARBOARD
20
FA521778
RETAINER, ENGINE COVER FRONT
21
F7011
HEX NUT
22
FA620892
DECAL, ENGINE COVER - FRONT
23
F1979
PAN HD SCREW, 10 24 X 1/2
24
FS535712
ENGINE COVER TOP W/RETAINER & PACKING
-
F2C593712
ENGINE COVER COMPLETE.
-
F4C601712
ENGINE COVER COMPLETE.
25
F8008
PLAIN WASHER
26
F521284
KNOB, ENGINE COVER RETAINER
27
F521690-1
SCREW, THROTTLE LEVER ADJUSTMENT
28
F521199
SPRING, THROTTLE LEVER ADJUSTMENT
29
F2042
PLAIN WASHER, #10 NARROW
30
F1473
HEX NUT
31
F521984
BLANKET, SILENCER TOP
32
FA619528
DECAL, ENGINE COVER REAR (42H4L, 42C4L, 43H4L, 43C4L)
-
F312528
DECAL, ENGINE COVER REAR
