Gear Housing для лодочных моторов Force H0032H84G (1984)

Москва и регионы России

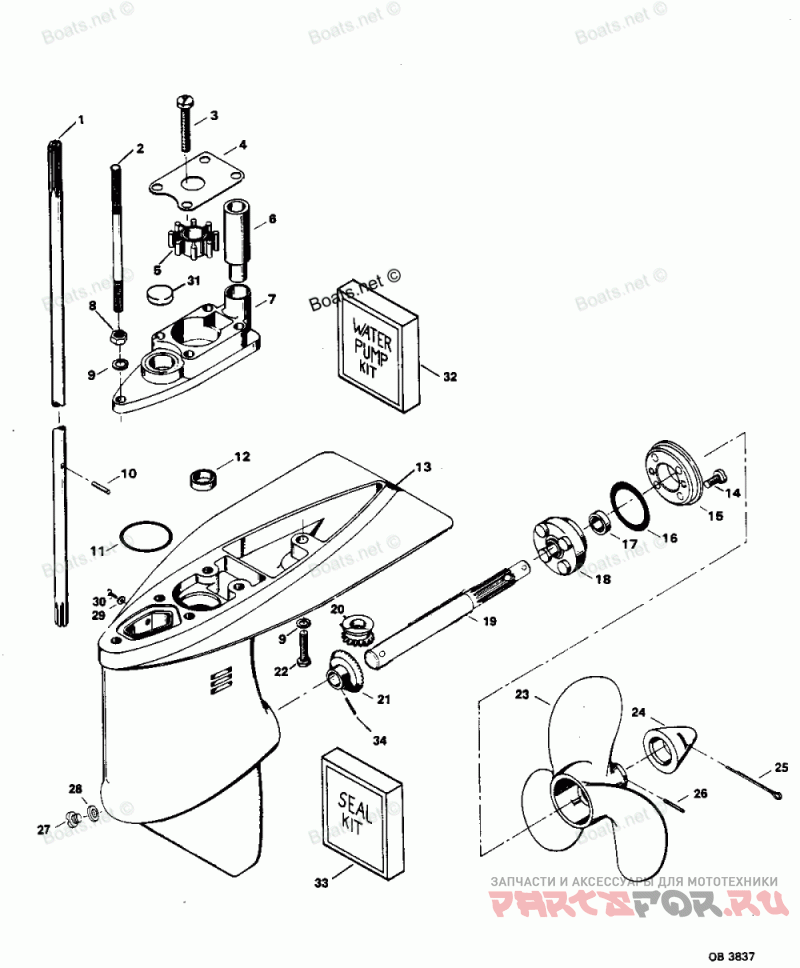

Gear Housing

Force H0032H84G

Gear Housing

#

oem код

название

цена

1

DRIVESHAFT

DRIVESHAFT

2

Шпилька

Шпилька

3

FILL HD SCREW, 1/4 - 20 X 1 1/4

FILL HD SCREW, 1/4 - 20 X 1 1/4

4

Пластина водяной помпы

Пластина водяной помпы

5

Импиллер

Импиллер

6

SEAL, WATERLINE

SEAL, WATERLINE

7

BODY, WATER PUMP

BODY, WATER PUMP

8

Гайка

Гайка

9

Стопорная шайба

Стопорная шайба

10

PIN, PUMP DRIVE

PIN, PUMP DRIVE

11

Уплотнение

Уплотнение

12

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

13

GEAR HOUSING ASSEMBLY

GEAR HOUSING ASSEMBLY

-

GEAR HOUSING ASSEMBLY COMPLETE.

GEAR HOUSING ASSEMBLY COMPLETE.

14

SCREW, 1/4 - 20 X 5/8

SCREW, 1/4 - 20 X 5/8

15

RETAINER, PROPELLER SHAFT BEARING CAGE

RETAINER, PROPELLER SHAFT BEARING CAGE

16

SEAL, O-RING

SEAL, O-RING

17

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

18

CAGE, BEARING

CAGE, BEARING

19

Вал

Вал

20

GEAR, BEVEL PINION

GEAR, BEVEL PINION

21

GEAR, BEVEL

GEAR, BEVEL

22

SCREW, 1/4 - 20 X 1

SCREW, 1/4 - 20 X 1

23

PROPELLER

PROPELLER

24

NUT, PROPELLER

NUT, PROPELLER

25

Шплинт

Шплинт

26

PIN, PROPELLER (PACK OF 3)

PIN, PROPELLER (PACK OF 3)

27

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

28

Шайба

Шайба

29

Шайба

Шайба

30

SCREW, 10 - 24 X 1/4

SCREW, 10 - 24 X 1/4

31

PLUG, WELCH

PLUG, WELCH

32

WATER PUMP KIT.

WATER PUMP KIT.

-

SEAL, WATERLINE

SEAL, WATERLINE

-

BODY, WATER PUMP

BODY, WATER PUMP

-

PLATE, PUMP, TOP

PLATE, PUMP, TOP

-

Импеллер

Импеллер

-

SCREW 1/4 - 20 X 1 1/4

SCREW 1/4 - 20 X 1 1/4

33

GEAR HOUSING SEAL KIT.

GEAR HOUSING SEAL KIT.

34

SPRING PIN 5/32 X 3/4

SPRING PIN 5/32 X 3/4
