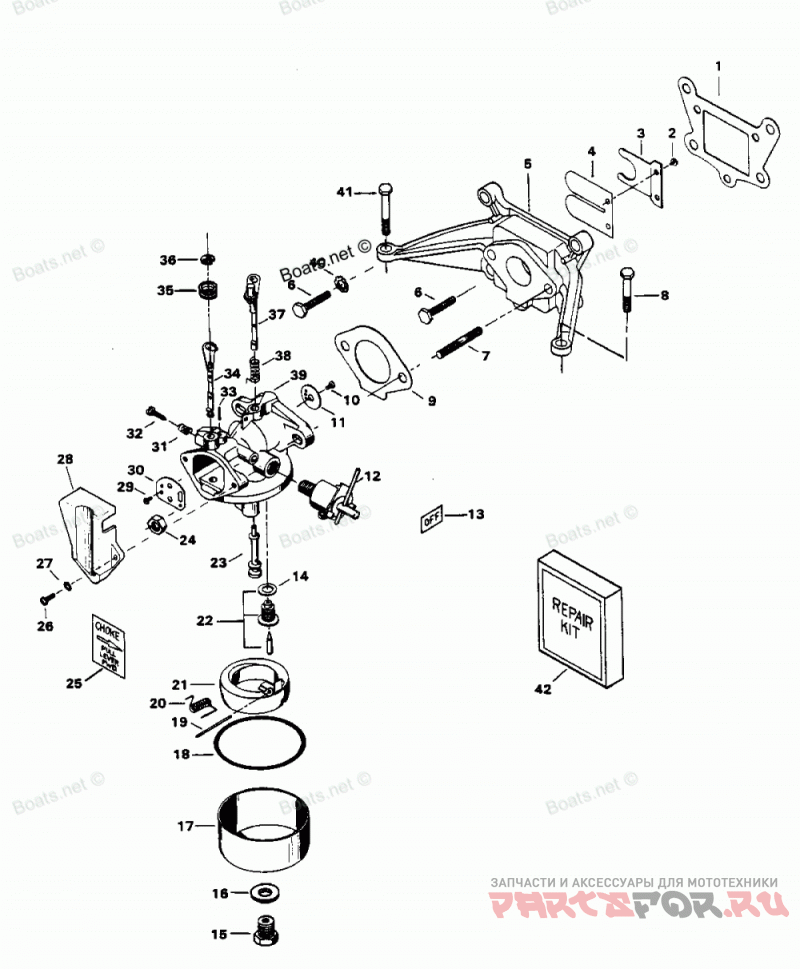

Carburetor & Reed Plate

Force H0032H84G

Force
#oem кодцена
1
F521168
GASKET, CARBURETOR ADAPTER
2
F1755
ROUND HD SCREW W/LOCKWASHER, 6 - 32 X 5/16
3
F424161
REED STOP
4
F31160-1
REED
5
F2A332167
CARBURETOR ADAPTER
6
F1532
HEX CAP SCREW, 1/4 - 20 X 1
7
F433209-1
STUD, CARBURETOR
9
F521906
GASKET, CARBURETOR
10
F10071
Винт
11
F10060
Клапан
12
F601489
VALVE, FUEL SHUT-OFF
13
F521894
DECAL "OFF"
14
F10066
Прокладка уплотнительная клапана
15
F10096
JET ASSEMBLY (.039) STD. SEA LEVEL - 3000 FT.
-
F10093
JET ASSEMBLY (.038) OPT. SEA LEVEL - 3000 FT. - 5000 FT.
-
F10086
JET ASSEMBLY (.037) OPT. SEA LEVEL - 5000 FT. - 7000 FT.
-
F10094
JET ASSEMBLY (.036) OPT. SEA LEVEL - 7000 FT. AND UP
16
F10090
GASKET, BOWL RETAINER
17
F10058
FUEL BOWL
18
F10068
GASKET, FUEL BOWL
19
F10064
FLOAT PIN
20
F10084
SPRING, FLOAT SUPPORT
21
F10063
Поплавок
22
F10100
VALVE, SEAT AND GASKET ASSEMBLY
23
F10065
Наконечник
24
F1490
HEX NUT, 1/4 - 20
25
F601248
DECAL (CHOKE)
26
F1064
FILL HD SCREW, 8 - 32 X 3/8
27
F8078
LOCKWASHER, INTERNAL TOOTH
28
F521708
CARBURETOR COVER
29
F10070
SCREW, CHOKE VALVE
30
F10062
CHOKE VALVE
31
F10073
SPRING, IDLE ADJUSTMENT NEEDLE
32
F10077
NEEDLE, IDLE
33
F10072
SPRING, CHOKE STOP
34
F10061
CHOKE SHAFT
35
F318504
GROMMET, CHOKE
36
F90807
RETAINER, CHOKE
37
F10059
Вал дросселя
38
F10075
SPRING, THROTTLE RETURN
39
F521061-6
CARBURETOR - COMPLETE
40
F8060
EXTERNAL TOOTH LOCKWASHER
42
F10098
REPAIR KIT.
-
F10069
GASKET SET.
-
F10116
BODY CHANNEL PLUG KIT (NOT SHOWN)
