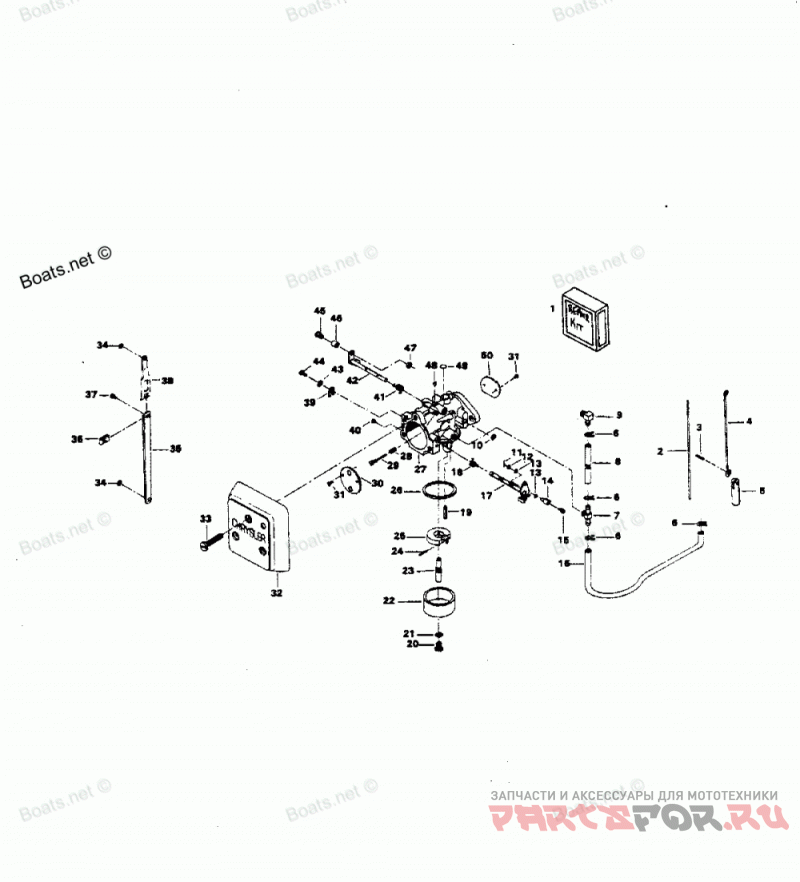

Карбюратор

Force H1408H83E

Force
#oem кодцена
1
FK10103
REPAIR PARTS KIT
2
F85509-1
LINK, CHOKE
3
F2033
GROOVE PIN
4
F440925
CHOKE ROD
5
F391926-1
Плунжер
6
F97772
Зажим
7
F85314-1
FUEL FITTING
8
F178754-1
Трубопровод
9
F84314-2
Колено
10
FO16620
Е-Кольцо
11
F1014
Шплинт
12
F8088
PLAIN WASHER
13
F184579
O-RING SEAL
14
F184033-1
SWIVEL, TOP CARBURETOR
15
F1059
FILL HD SCREW, 6 - 32 X 1/4
16
F434754
Трубопровод
17
FO16301
CHOKE SHAFT AND LEVER
18
FO17885
CHOKE SHAFT RETURN SPRING
19
FK10107
INLET NEEDLE AND SEAT
20
FO16132
FUEL BOWL RETAINING SCREW
21
F05323
FUEL BOWL RETAINING SCREW GASKET
-
F85033
SWIVEL, CHOKE ROD (BOTTOM CARBURETOR) (NOT SHOWN)
-
FK10023
GASKET SET (NOT SHOWN)
22
FO16130
FUEL BOWL
23
FO16133
MAIN NOZZLE
24
FO13944
FLOAT LEVER PIN
25
FO13554
Поплавок
26
FO15623
FUEL BOWL GASKET
27
F476061-4
CARBURETOR COMPLETE (TC-5E)
28
FO11103
IDLE MIXTURE SCREW SPRING
29
FO14166
IDLE MIXTURE SCREW
30
FO17719
CHOKE SHUTTER
31
FO15912
CHOKE AND THROTTLE SHUTTER SCREW
32
F511708
COVER, CARBURETOR
33
F1034
PAN HD SCREW, 1/4 - 20 X 1-3/8
34
F90807
Стопорное кольцо
35
FA178233
THROTTLE TIE BAR W/SWIVEL
36
F1693
TIE BAR RETAINER
37
F1064
FILL HD SCREW, 8 - 32 X 3/8
38
FA85193
TIE BAR END W/SWIVEL
39
FO9678
CLIP, CHOKE SHAFT
40
FO12947
MAIN FUEL JET STD. .096 SEA LEVEL - 1500 FT.
-
FO14191
MAIN FUEL JET OPT. .0937 1500 - 3000 FT.
-
FO14190
MAIN FUEL JET OPT. .092 3000 - 4500 FT.
-
FO15406
MAIN FUEL JET OPT. .090 4500 - 6000 FT.
-
FO13193
MAIN FUEL JET OPT. .088 6000 FT. AND UP.
41
FO16143
THROTTLE SHAFT RETURN SPRING
42
FO17884
THROTTLE SHAFT AND LEVER
43
FO992
Стопорная шайба
44
FO1974
Винт
45
F333316
THROTTLE ROLLER SHAFT
46
F92759
THROTTLE ROLLER
47
F1997
STOP NUT, 8 - 32
48
FO10588
BODY CHANNEL CUP PLUG
49
FO16128
BODY CHANNEL WELCH PLUG
50
FO16142
THROTTLE SHUTTER
