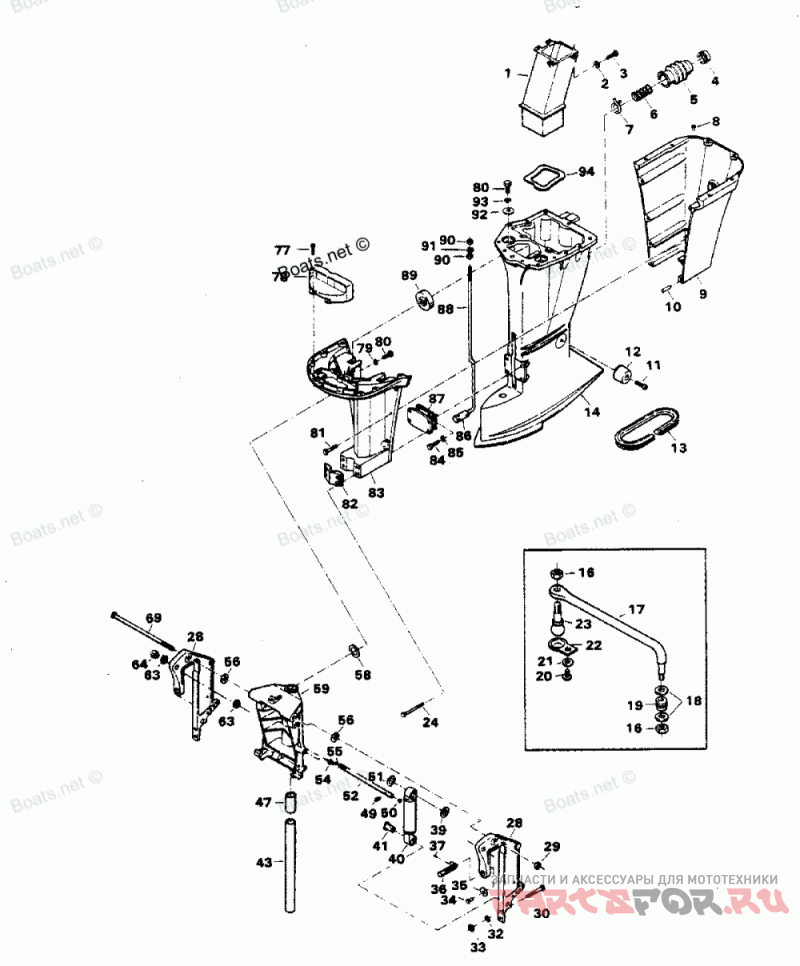

Motor Leg

Force H1058V83H

Force
#oem кодцена
1
F85660-1
EXHAUST TUBE
2
F8083
SPRING LOCKWASHER
3
F1864
HEX SLOT HD SCREW, 1/4 - 20 X 3/4
4
F85258
Вставка
5
F85130
BOOT IDLE EXHAUST
6
F85380
Пружина
7
F85772
Зажим
8
F1729
Заглушка
9
F178145-3
MOTOR LEG COVER, REAR
10
F1664
Пружинный Штифт
11
F438962
SHOCK MOUNT LOWER REAR
12
F1263
HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16
13
F178323
SEAL, MOTOR LEG
14
F523133-2
MOTOR LEG
16
F2093
STOP NUT
17
F523881-2
LINK STEERING
18
F8038
PLAIN WASHER
19
F523300-1
Пружина
20
F1280
PAN HD SCREW
21
F8080
HELICAL SPRING LOCKWASHER
22
F523930
RETAINER STUD
23
F523273
STUD STEERING BALL
24
F1696
HEX BOLT, 5/16 - 18 X 1-3/4
28
817958A6
STERN BRACKET
29
F7012
STOP NUT
30
F1593
HEX HD SCREW, 3/8 - 16 X 3
32
F1904
PLAIN WASHER
33
F1346
HEX NUT
34
F353480
Шпилька
35
F84074
CLAMP SCREW FOOT
36
F474073-1
CLAMP SCREW
37
F8538
Пружинный Штифт
39
F1710
PLAIN WASHER
40
FA178962
SHOCK ABSORBER W/BUSHING
41
F178362
Подшипник
43
FS85019
KINGPIN
47
F438169
Подшипник
49
F523274
Масленка
50
F9052
Заглушка
51
F1711
SPRING BOWED WASHER
52
F511125-2
TUBE, STEERING SUPPORT
54
F213274
Масленка
55
F316599
SEAL, STEERING SUPPORT TUBE
56
F84286-1
FRICTION WASHER
58
F84011
Шайба
59
817783A5
SWIVEL BRACKET
63
F523280
NUT, STEERING SUPPORT TUBE
64
F9018
Крышка
69
F85037-1
STERN BRACKET PIVOT BOLT
77
F1912
HEX HD SCREW, 10 - 24 X 1/2
78
F85779-1
BAFFLE, AIR INTAKE
79
F1703
SPRING LOCKWASHER
80
F1871
HEX HD SCREW, 3/8 - 16 X 3/4
81
F2030
HEX HD M. SCREW, 1/4 - 20 X 1-1/4
82
F85606
KINGPIN CAP
83
FA85135-4
LEG COVER FRONT
84
F1822
HEX BOLT, 5/16 - 18 X 7/8
85
F8096
SPRING LOCKWASHER
86
F85704
COUPLER, GEAR SHIFT ROD
87
F438346
SHOCK MOUNT LOWER
88
F85615
GEAR SHIFT ROD UPPER
89
F85965
SHOCK MOUNT UPPER
90
F2108
LOCK NUT
91
F1987
PLAIN WASHER
92
FA85355-1
Шайба
93
F2014
PLAIN WASHER
94
F439736
SEAL, EXHAUST TUBE
