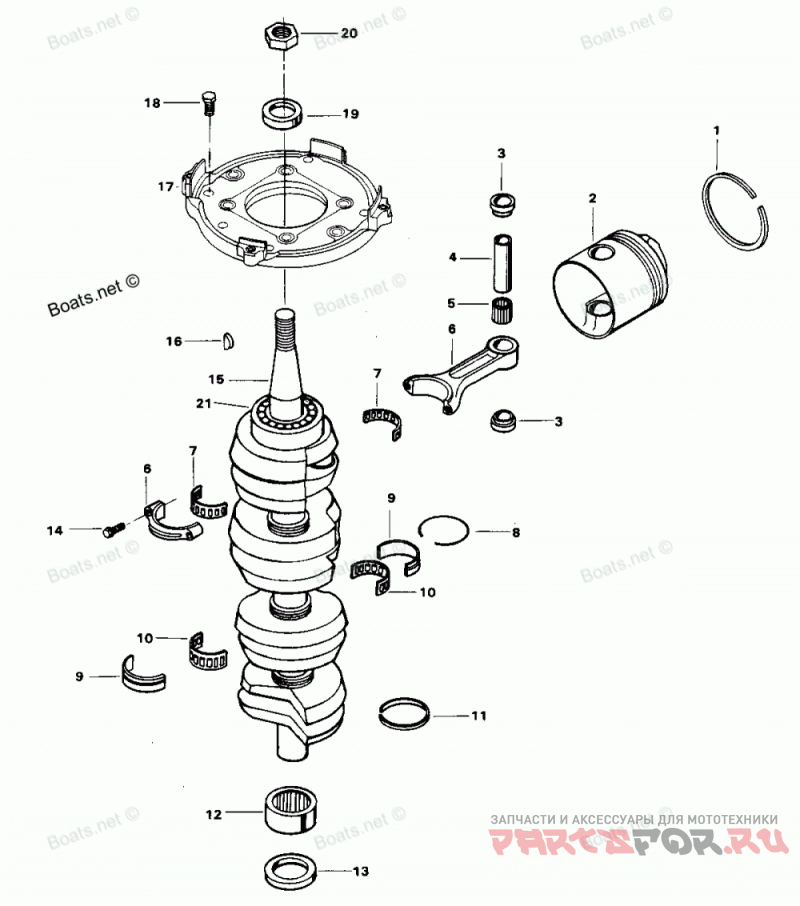

Crankshaft And Piston Group

Force H0906R83D

Force
#oem кодцена
1
FA335260
PISTON RING SET (2 PER SET) - STANDARD
-
FSA335260
PISTON RING (2 PER SET) .010 OVERSIZE
-
818110A1
PISTON RING (2 PER SET) .030 OVERSIZE
2
F372015-3
PISTON - STANDARD
-
817988A2
PISTON .010 OVERSIZE
-
818111A2
PISTON .030 OVERSIZE
3
F335215
SPACER, PISTON PIN (2 PER PISTON)
4
F85017
Палец поршневой
5
F335217-1
BEARING, PISTON PIN (26 PER SET)
6
818052A4
Шатун
7
FK85228-1
BEARING CAGE W/ROLLER
8
F85410
Стопорное кольцо
9
FA85655-1
CRANKSHAFT MAIN BEARING RACE W/SNAP RING
10
F85571
BEARING CAGE W/ROLLER
11
F316579
Прокладка
12
FA523014
CRANKSHAFT LOWER MAIN BEARING
13
F523146
SEAL, CRANKSHAFT LOWER
14
F85634-2
CONNECTING ROD SCREW
15
817735A4
Коленчатый вал
16
F85498
FLYWHEEL KEY
17
F2A615144
CRANKSHAFT BEARING CAGE
18
F2081
HEX SOC. HD. SCREW, 1/4 - 20 X 3/4
19
F523146
Уплотнение
20
F1968
FLYWHEEL NUT
21
F284659-2
BEARING, CRANKSHAFT UPPER MAIN
-
F2067
PLASTISOL CAP (NOT SHOWN) FOR EXPOSED THREADS OF CRANKSHAFT
