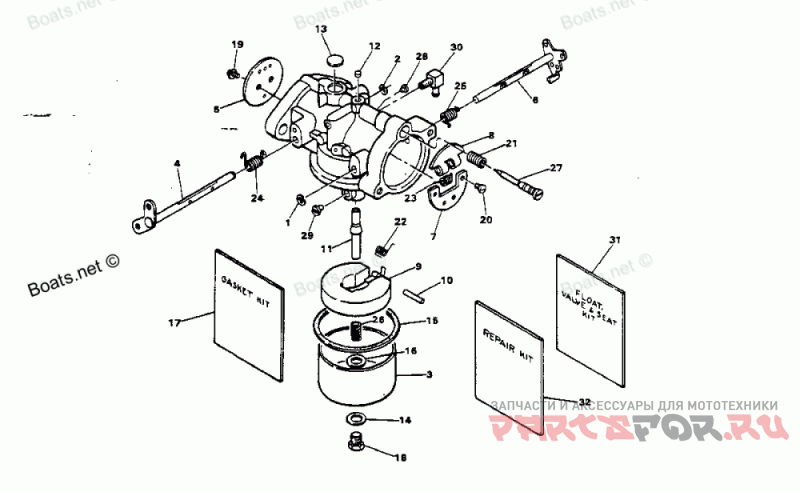

Карбюратор для лодочных моторов Force H0507R83E (1983)

Москва и регионы России

Карбюратор

Force H0507R83E

Карбюратор

#

oem код

название

цена

1

ELBOW, FUEL LINE CARBURETOR

ELBOW, FUEL LINE CARBURETOR

2

CHOKE SHAFT AND LEVER

CHOKE SHAFT AND LEVER

3

SEAL, CHOKE ARM SWIVEL

SEAL, CHOKE ARM SWIVEL

4

SWIVEL, CHOKE ROD

SWIVEL, CHOKE ROD

5

FILL HD SCREW, 6 - 32 X 1/4

FILL HD SCREW, 6 - 32 X 1/4

6

PLAIN WASHER

PLAIN WASHER

7

Шплинт

Шплинт

8

CHOKE SOLENOID ROD

CHOKE SOLENOID ROD

9

CHOKE SOLENOID PLUNGER

CHOKE SOLENOID PLUNGER

10

GROOVE PIN

GROOVE PIN

11

IDLE MIXTURE SCREW

IDLE MIXTURE SCREW

12

IDLE MIXTURE SCREW SPRING

IDLE MIXTURE SCREW SPRING

13

CHOKE RELIEF VALVE

CHOKE RELIEF VALVE

14

CHOKE SHAFT RETURN SPRING

CHOKE SHAFT RETURN SPRING

15

CHOKE SHUTTER RETAINING SCREW AND LOCKWASHER

CHOKE SHUTTER RETAINING SCREW AND LOCKWASHER

16

CHOKE SHUTTER

CHOKE SHUTTER

17

CHOKE RELIEF VALVE SPRING

CHOKE RELIEF VALVE SPRING

18

INLET SEAT GASKET

INLET SEAT GASKET

19

INLET NEEDLE, SEAT AND GASKET

INLET NEEDLE, SEAT AND GASKET

20

FLOAT LEVER PIN

FLOAT LEVER PIN

21

REPAIR PARTS KIT.

REPAIR PARTS KIT.

22

FUEL BOWL GASKET

FUEL BOWL GASKET

23

FUEL BOWL RETAINING SCREW GASKET

FUEL BOWL RETAINING SCREW GASKET

24

FUEL BOWL

FUEL BOWL

25

FUEL BOWL RETAINING SCREW

FUEL BOWL RETAINING SCREW

26

GASKET SET.

GASKET SET.

27

Поплавок

Поплавок

28

MAIN NOZZLE

MAIN NOZZLE

29

MAIN FUEL JET .084 - STD.

MAIN FUEL JET .084 - STD.

-

MAIN FUEL JET .082 - OPT. - 1250 - 3750 FT.

MAIN FUEL JET .082 - OPT. - 1250 - 3750 FT.

-

MAIN FUEL JET .080 - OPT. - 3750 - 6250 FT.

MAIN FUEL JET .080 - OPT. - 3750 - 6250 FT.

-

MAIN FUEL JET .078 - OPT. - 6280 - 8250 FT.

MAIN FUEL JET .078 - OPT. - 6280 - 8250 FT.

30

THROTTLE SHAFT RETURN SPRING

THROTTLE SHAFT RETURN SPRING

31

STOP NUT, 8 - 32

STOP NUT, 8 - 32

32

THROTTLE SHAFT AND LEVER

THROTTLE SHAFT AND LEVER

33

Ролик

Ролик

34

THROTTLE ROLLER SHAFT

THROTTLE ROLLER SHAFT

35

FLANGE GASKET

FLANGE GASKET

36

THROTTLE SHUTTER RETAINING SCREW AND LOCKWASHER

THROTTLE SHUTTER RETAINING SCREW AND LOCKWASHER

37

THROTTLE SHUTTER

THROTTLE SHUTTER

38

CARBURETOR - COMPLETE (WB16D)

CARBURETOR - COMPLETE (WB16D)

39

BODY CHANNEL WELCH PLUG

BODY CHANNEL WELCH PLUG

40

BODY CHANNEL CUP PLUG

BODY CHANNEL CUP PLUG

41

THROTTLE SHAFT POSITION RETAINING SCREW WASHER

THROTTLE SHAFT POSITION RETAINING SCREW WASHER

42

THROTTLE SHAFT POSITION RETAINING SCREW LOCKWASHER

THROTTLE SHAFT POSITION RETAINING SCREW LOCKWASHER

43

THROTTLE SHAFT POSITION RETAINING SCREW

THROTTLE SHAFT POSITION RETAINING SCREW
