Engine Cover And Support Plate 503h3a, 503b3a для лодочных моторов Force H0507H83D (1983)

Москва и регионы России

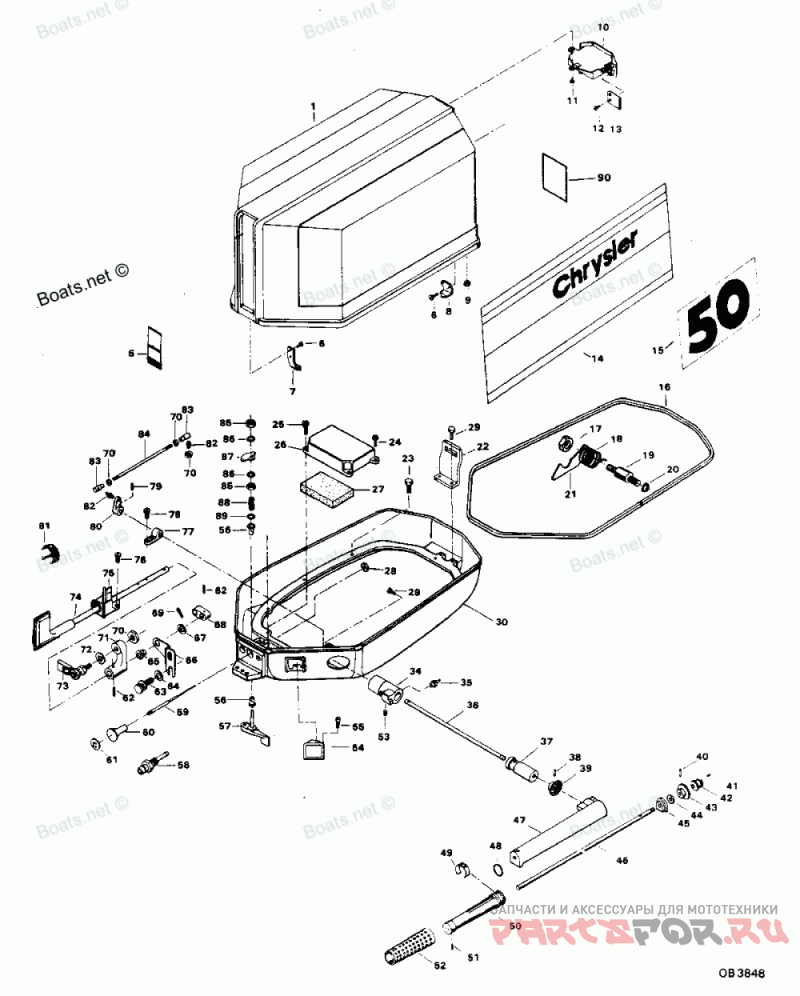

Engine Cover And Support Plate 503h3a, 503b3a

Force H0507H83D

Engine Cover And Support Plate 503h3a, 503b3a

#

oem код

название

цена

1

ENGINE COVER

ENGINE COVER

-

ENGINE COVER COMPLETE

ENGINE COVER COMPLETE

5

DECAL, ENGINE COVER FRONT

DECAL, ENGINE COVER FRONT

6

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

7

ENGINE COVER RETAINER, FORWARD

ENGINE COVER RETAINER, FORWARD

8

ENGINE COVER RETAINER

ENGINE COVER RETAINER

9

HEX NUT, 10 - 24

HEX NUT, 10 - 24

10

Ручка наклона

Ручка наклона

11

PAN HD SCREW, 10 X 3/8

PAN HD SCREW, 10 X 3/8

12

PAN HD SELF - TAPPING SCREW, 10 - 7/16

PAN HD SELF - TAPPING SCREW, 10 - 7/16

13

RETAINER, TILT HANDLE

RETAINER, TILT HANDLE

14

DECAL, ENGINE COVER - PORT

DECAL, ENGINE COVER - PORT

-

DECAL, ENGINE COVER - STARBOARD

DECAL, ENGINE COVER - STARBOARD

15

DECAL, NUMERAL

DECAL, NUMERAL

16

SUPPORT PLATE PACKING

SUPPORT PLATE PACKING

17

HEX NUT, 5/16 - 18

HEX NUT, 5/16 - 18

18

SPRING SHIFT DETENT

SPRING SHIFT DETENT

19

SWIVEL SHIFT DETENT

SWIVEL SHIFT DETENT

20

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

21

DETENT, SHIFT ARM

DETENT, SHIFT ARM

22

BRACKET, RETAINER REAR

BRACKET, RETAINER REAR

23

HEX CAP SCREW, 1/4 - 20 X 3/4

HEX CAP SCREW, 1/4 - 20 X 3/4

24

HEX HD SCREW, 1/4 - 20 X 3/4

HEX HD SCREW, 1/4 - 20 X 3/4

25

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

26

BAFFLE, AIR INTAKE ASSEMBLY

BAFFLE, AIR INTAKE ASSEMBLY

27

INTAKE SILENCER

INTAKE SILENCER

28

HEX NUT, 3/8 - 24

HEX NUT, 3/8 - 24

29

HEX CAP SCREW, 1/4 - 20 X 3/4

HEX CAP SCREW, 1/4 - 20 X 3/4

30

Опорная Плита

Опорная Плита

34

STEERING HANDLE ADAPTER

STEERING HANDLE ADAPTER

35

Масленка

Масленка

36

MAGNETO CONTROL SHAFT

MAGNETO CONTROL SHAFT

37

PIVOT TUBE

PIVOT TUBE

38

Пружинный Штифт

Пружинный Штифт

39

STEERING HANDLE GEAR

STEERING HANDLE GEAR

40

Пружинный Штифт

Пружинный Штифт

41

SLOTTED OVAL HD SET SCREW 1/4 - 28 X 3/8

SLOTTED OVAL HD SET SCREW 1/4 - 28 X 3/8

42

STEERING HANDLE CONTROL SHAFT BEARING

STEERING HANDLE CONTROL SHAFT BEARING

43

STEERING HANDLE GEAR

STEERING HANDLE GEAR

44

PLAIN WASHER

PLAIN WASHER

45

STEERING HANDLE CONTROL SHAFT THRUST BEARING

STEERING HANDLE CONTROL SHAFT THRUST BEARING

46

SHAFT, STEERING HANDLE

SHAFT, STEERING HANDLE

47

STEERING HANDLE

STEERING HANDLE

48

DAMPENER

DAMPENER

49

STEERING HANDLE INDICATOR

STEERING HANDLE INDICATOR

50

STEERING HANDLE GRIP

STEERING HANDLE GRIP

51

Пружинный Штифт

Пружинный Штифт

52

SLEEVE, STEERING HANDLE

SLEEVE, STEERING HANDLE

53

STEERING HANDLE FRICTION SCREW W/SPRING AND BUTTON

STEERING HANDLE FRICTION SCREW W/SPRING AND BUTTON

54

BUSHING, ELEC. CABLE ENTRY

BUSHING, ELEC. CABLE ENTRY

55

PAN HD SCREW, 10 - 24 X 9/16

PAN HD SCREW, 10 - 24 X 9/16

56

BEARING, LATCH SHAFT

BEARING, LATCH SHAFT

57

LATCH SHAFT W/HANDLE

LATCH SHAFT W/HANDLE

58

Втулка

Втулка

59

Кабель Дросселя

Кабель Дросселя

60

CHOKE KNOB

CHOKE KNOB

61

INSERT, CHOKE KNOB

INSERT, CHOKE KNOB

62

Пружинный Штифт

Пружинный Штифт

63

HEX HD SCREW W/LOCKWASHER, 1/4 - 20 X 7/8

HEX HD SCREW W/LOCKWASHER, 1/4 - 20 X 7/8

64

PLAIN WASHER

PLAIN WASHER

65

Подшипник

Подшипник

66

BRACKET, SHIFT ROD

BRACKET, SHIFT ROD

67

PLAIN WASHER

PLAIN WASHER

68

ARM, GEAR SHIFT LEVER

ARM, GEAR SHIFT LEVER

69

Шплинт

Шплинт

70

HEX NUT, 10 - 32

HEX NUT, 10 - 32

71

INTERLOCK LEVER ARM

INTERLOCK LEVER ARM

72

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

-

BRACKET, CHOKE CABLE (NOT SHOWN)

BRACKET, CHOKE CABLE (NOT SHOWN)

73

BALL JOINT W/BEARING

BALL JOINT W/BEARING

74

GEAR SHIFT ROD

GEAR SHIFT ROD

75

BUSHING, GEAR SHIFT ROD

BUSHING, GEAR SHIFT ROD

76

PAN HD SCREW, 10 - 24 X 9/16

PAN HD SCREW, 10 - 24 X 9/16

77

Подшипник

Подшипник

78

FILL HD SCREW, 10 - 24 X 5/8

FILL HD SCREW, 10 - 24 X 5/8

79

Пружинный Штифт

Пружинный Штифт

80

MAGNETO CONTROL ARM

MAGNETO CONTROL ARM

81

GEAR SHIFT INDICATOR

GEAR SHIFT INDICATOR

82

ROD END CONNECTOR STUD

ROD END CONNECTOR STUD

83

ROD END CONNECTOR, MAGNETO CONTROL

ROD END CONNECTOR, MAGNETO CONTROL

84

MAGNETO CONTROL ROD

MAGNETO CONTROL ROD

85

HEX NUT, 5/16 - 18

HEX NUT, 5/16 - 18

86

SPRING LOCKWASHER

SPRING LOCKWASHER

87

LATCH CAM

LATCH CAM

88

Пружина

Пружина

89

PLAIN WASHER

PLAIN WASHER

90

DECAL, ENGINE COVER REAR

DECAL, ENGINE COVER REAR
