Engine Cover And Support Plate для лодочных моторов Force H0252B83G (1983)

Москва и регионы России

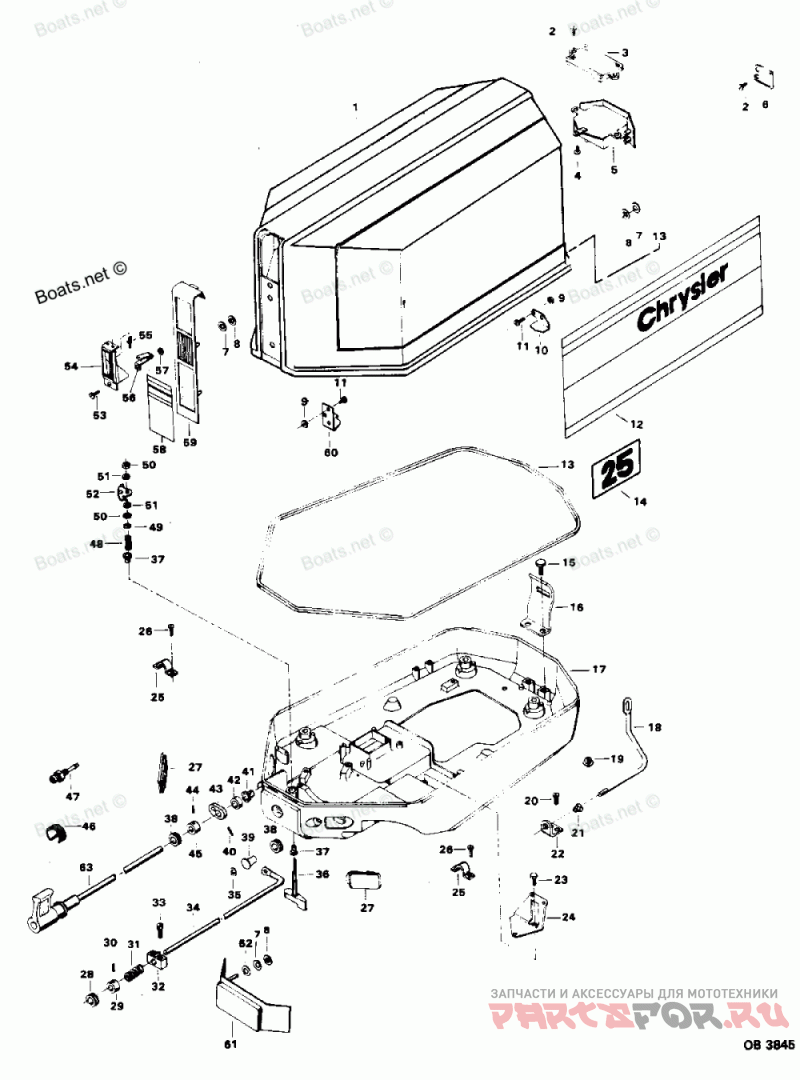

Engine Cover And Support Plate

Force H0252B83G

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER

ENGINE COVER

-

ENGINE COVER - COMPLETE

ENGINE COVER - COMPLETE

2

PAN HD SCREW, 10 X 7/16

PAN HD SCREW, 10 X 7/16

3

BAFFLE, TILT HANDLE

BAFFLE, TILT HANDLE

4

PAN HD SCREW, 10 X 5/8

PAN HD SCREW, 10 X 5/8

5

Ручка наклона

Ручка наклона

6

RETAINER, TILT HANDLE

RETAINER, TILT HANDLE

7

Уплотнение

Уплотнение

8

Застежка

Застежка

9

HEX NUT

HEX NUT

10

RETAINER, ENGINE COVER - REAR

RETAINER, ENGINE COVER - REAR

11

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

12

DECAL, ENGINE COVER - PORT

DECAL, ENGINE COVER - PORT

-

DECAL, ENGINE COVER - STARBOARD

DECAL, ENGINE COVER - STARBOARD

13

PACKING, ENGINE COVER

PACKING, ENGINE COVER

14

DECAL NUMERAL 25

DECAL NUMERAL 25

15

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

16

BRACKET, RETAINER - REAR

BRACKET, RETAINER - REAR

17

Опорная Плита

Опорная Плита

18

CHOKE ROD (252H3G, 252B3G)

CHOKE ROD (252H3G, 252B3G)

19

PLASTIC-PLUG

PLASTIC-PLUG

20

PAN HD SCREW, 10 - 24 X 3/8 (252H3G, 252B3G)

PAN HD SCREW, 10 - 24 X 3/8 (252H3G, 252B3G)

21

BEARING, CHOKE ROD (252H3G, 252B3G)

BEARING, CHOKE ROD (252H3G, 252B3G)

22

BRACKET, CHOKE ROD BEARING (252H3G, 252B3G)

BRACKET, CHOKE ROD BEARING (252H3G, 252B3G)

23

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

24

BRACKET, REMOTE THROTTLE CABLE

BRACKET, REMOTE THROTTLE CABLE

25

CLAMP, REMOTE CABLE

CLAMP, REMOTE CABLE

26

SLOTTED FILL HD SCREW

SLOTTED FILL HD SCREW

27

GROMMET, REMOTE THROTTLE CABLE (252H3G, 252B3G)

GROMMET, REMOTE THROTTLE CABLE (252H3G, 252B3G)

-

GROMMET, REMOTE THROTTLE CABLE (257H3D, 257B3D)

GROMMET, REMOTE THROTTLE CABLE (257H3D, 257B3D)

28

GROMMET, MAGNETO CONTROL SHAFT (252H3G, 252B3G)

GROMMET, MAGNETO CONTROL SHAFT (252H3G, 252B3G)

29

RETAINER, MAGNETO CONTROL SHAFT

RETAINER, MAGNETO CONTROL SHAFT

30

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

31

SPRING, MAGNETO CONTROL SHAFT (252H3G, 252B3G)

SPRING, MAGNETO CONTROL SHAFT (252H3G, 252B3G)

32

BEARING, MAGNETO CONTROL SHAFT (252H3G, 252B3G)

BEARING, MAGNETO CONTROL SHAFT (252H3G, 252B3G)

33

FILL HD SCREW, 10 - 24 X 7/8 (252H3G, 252B3G)

FILL HD SCREW, 10 - 24 X 7/8 (252H3G, 252B3G)

34

MAGNETO CONTROL SHAFT

MAGNETO CONTROL SHAFT

35

INSERT, CHOKE KNOB (252H3G, 252B3G)

INSERT, CHOKE KNOB (252H3G, 252B3G)

36

COVER LATCH HANDLE W/SHAFT

COVER LATCH HANDLE W/SHAFT

37

BEARING, LATCH SHAFT

BEARING, LATCH SHAFT

38

GROMMET, GEAR SHIFT CHOKE ROD (252H3G, 252B3G)

GROMMET, GEAR SHIFT CHOKE ROD (252H3G, 252B3G)

-

GROMMET, SUPPORT PLATE (257H3D, 257B3D)

GROMMET, SUPPORT PLATE (257H3D, 257B3D)

39

CHOKE KNOB (252H3G, 252B3G)

CHOKE KNOB (252H3G, 252B3G)

40

SPRING PIN (252H3G, 252B3G)

SPRING PIN (252H3G, 252B3G)

41

BEARING (252H3G, 252B3G)

BEARING (252H3G, 252B3G)

42

SPACER, GEAR SHIFT SHAFT (252H3G, 252B3G)

SPACER, GEAR SHIFT SHAFT (252H3G, 252B3G)

43

LEVER, GEAR SHIFT CONTROL (252H3G, 252B3G)

LEVER, GEAR SHIFT CONTROL (252H3G, 252B3G)

44

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

45

RETAINER, GEAR SHIFT SHAFT

RETAINER, GEAR SHIFT SHAFT

46

INDICATOR, GEAR SHIFT (252H3G, 252B3G)

INDICATOR, GEAR SHIFT (252H3G, 252B3G)

47

BUSHING, FUEL LINE

BUSHING, FUEL LINE

48

SPRING, LATCH SHAFT

SPRING, LATCH SHAFT

49

Стопорное кольцо

Стопорное кольцо

50

HEX JAM NUT, 5/16 - 18

HEX JAM NUT, 5/16 - 18

51

SPRING LOCKWASHER

SPRING LOCKWASHER

52

CAM, ENGINE COVER LATCH

CAM, ENGINE COVER LATCH

53

PAN HD SCREW, 10 - 24 X 3/8 (252H3G, 252B3G)

PAN HD SCREW, 10 - 24 X 3/8 (252H3G, 252B3G)

54

TRIM, STARTER HANDLE GUIDE (252H3G, 252B3G)

TRIM, STARTER HANDLE GUIDE (252H3G, 252B3G)

55

PLASTIC RIVET (252H3G, 252B3G)

PLASTIC RIVET (252H3G, 252B3G)

56

CLIP, STARTER GUIDE (252H3G, 252B3G)

CLIP, STARTER GUIDE (252H3G, 252B3G)

57

HEX NUT, 10 - 24 (252H3G, 252B3G)

HEX NUT, 10 - 24 (252H3G, 252B3G)

58

DECAL ENGINE COVER - FRONT

DECAL ENGINE COVER - FRONT

59

PLATE, FRONT (252H3G, 252B3G)

PLATE, FRONT (252H3G, 252B3G)

-

PLATE, FRONT (257H3D, 257B3D)

PLATE, FRONT (257H3D, 257B3D)

60

RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS

RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS

61

COVER, SUPPORT PLATE (ALT. START)

COVER, SUPPORT PLATE (ALT. START)

62

PLAIN WASHER

PLAIN WASHER

63

KNOB, GEAR SHIFT

KNOB, GEAR SHIFT
