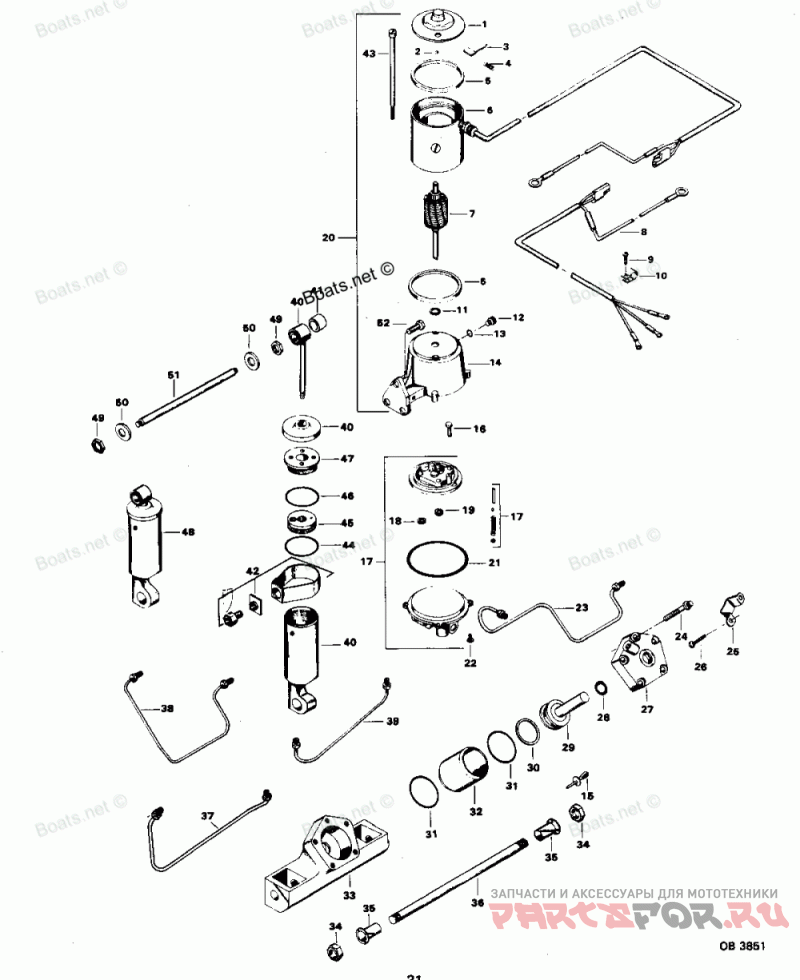

Power Trim Unit 858h2f 858b2f 858h3g

Force H0858H82F

Force
#oem кодцена
1
F17543
HEAD ASSEMBLY, COMMUTATOR END
2
F17539
Шарик
3
F17504
Щеточный комплект
4
F17500
Пружинка
5
F17557
Прокладка
6
F17556
FIELD AND FRAME ASSEMBLY
7
F17555
ARMATURE
8
F500843
Провод
9
F1741
THREAD FORMING SCREW, 8 X 3/4
10
F178446
Зажим
11
F17508
Упорная шайба
12
F17518
FILTER CAP
13
F17510
Уплотнительное кольцо
14
F17505
RESERVOIR AND BRACKET W/SEAL
15
F1966
PLUG, SWIVEL BRACKET
16
F1203
HEX CAP SCREW, 1/4 - 20 X 7/8
17
F17564
VALVE BODY AND PUMP
18
F17566
IDLE GEAR
19
F17565
DRIVE GEAR
20
F17563
MOTOR AND RESERVOIR
21
F17522
Уплотнительное кольцо
22
F1310
ROUND HD SCREW, 10 - 24 X 5/8
23
F449254
HYDRAULIC LINE, TRIM CYLINDER, UPPER
24
F1959
FERRY HD CAP SCREW, 1/4 - 20 X 1-3/4, STAINLESS STEEL
25
F449354
THRUST BRACKET
26
F1734
FILL HD MOUNTING SCREW AND LOCKWASHER, 1/4 - 20 X 1/2
27
FA449149
COVER W/SEALS AND RETAINER
28
F449342
SEAL, PISTON SHAFT
29
FA449015
Поршень
30
F449278
PISTON SEAL
31
F40278
SEAL, CYLINDER
32
F449010
Цилиндр
33
F449545-2
CYLINDER HOUSING
34
F1963
ELASTIC STOP NUT, 5/8 - 18
35
F178362
Подшипник
36
F449632
Вал
37
F449253-1
HYDRAULIC LINE, TRIM CYLINDER, LOWER
38
F449754-1
HYDRAULIC LINE, LIFT CYLINDER, LOWER
39
F449758
HYDRAULIC LINE, LIFT CYLINDER, UPPER
40
FA17559
LIFT CYLINDER COMPLETE
41
F178344
BUSHING, SHOCK ABSORBER UPPER
42
F17577
ADAPTER FITTING PACKAGE
43
F17558
THRU-BOLT PACKAGE
-
F1877
TY-RAP (NOT SHOWN)
44
FA17561-1
Уплотнительное кольцо
45
F17562-1
PISTON ASSEMBLY
46
F17528
Уплотнительное кольцо
47
F17560
HEAD ASSEMBLY
48
FA178962
Амортизатор
49
F1931
STOP NUT, 1/2 - 20, STAINLESS STEEL
50
F1960
PLAIN WASHER
51
F449889
SHAFT, UPPER
52
F1822
HEX CAP SCREW, 5/16 - 18 X 7/8, STAINLESS STEEL
