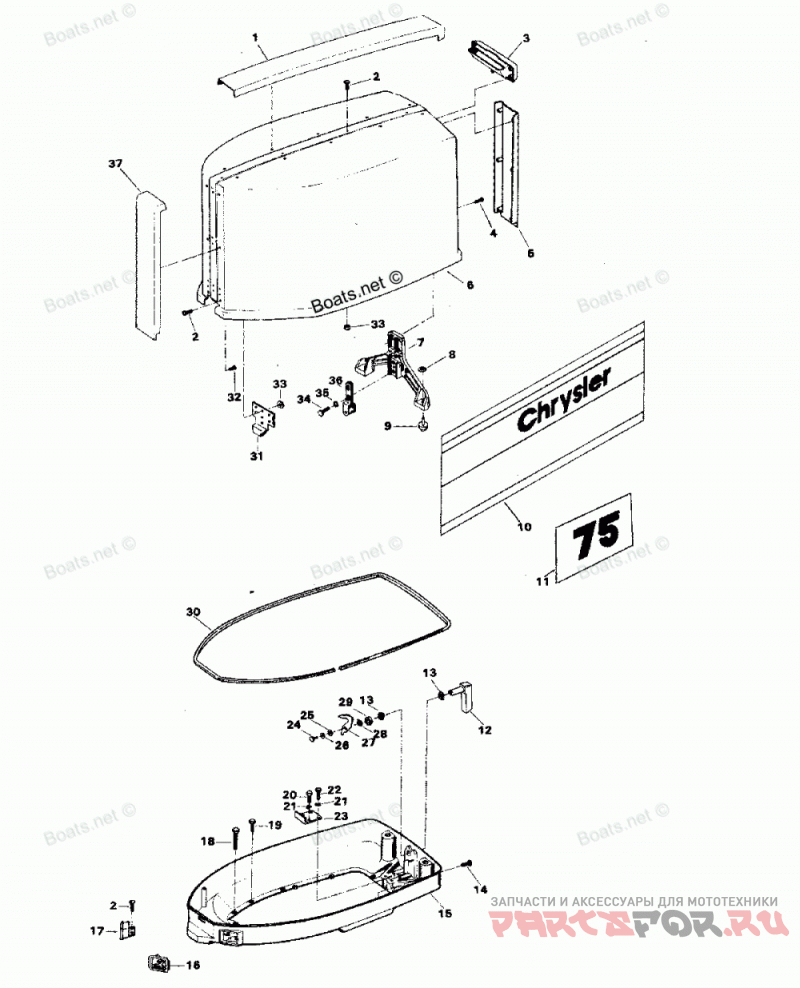

Engine Cover And Support Plate

Force H0758H82H

Engine Cover And Support Plate

#

oem код

название

цена

1

TRIM, TOP

TRIM, TOP

2

SCREW, PAN HD, 10 - 24 X 9/16

SCREW, PAN HD, 10 - 24 X 9/16

3

Ручка

Ручка

4

SCREW, PAN HD W/SPRING LOCKWASHER, 1/4 - 20 X 5/8

SCREW, PAN HD W/SPRING LOCKWASHER, 1/4 - 20 X 5/8

5

TRIM, REAR

TRIM, REAR

6

COVER, ENGINE

COVER, ENGINE

-

COVER, ENGINE - COMPLETE

COVER, ENGINE - COMPLETE

7

BRACKET, ENGINE COVER LATCH

BRACKET, ENGINE COVER LATCH

8

Застежка

Застежка

9

GUIDE, ENGINE COVER

GUIDE, ENGINE COVER

10

DECAL, ENGINE COVER - PORT
W/LITERATURE

DECAL, ENGINE COVER - PORT
W/LITERATURE

-

DECAL, ENGINE COVER - STARBOARD
W/LITERATURE

DECAL, ENGINE COVER - STARBOARD
W/LITERATURE

11

DECAL, NUMERAL

DECAL, NUMERAL

12

LATCH HANDLE, ENGINE COVER W/SHAFT

LATCH HANDLE, ENGINE COVER W/SHAFT

13

BEARING, LATCH SHAFT

BEARING, LATCH SHAFT

14

HEX CAP SCREW, 1/4 - 20 X 3/4

HEX CAP SCREW, 1/4 - 20 X 3/4

15

PLATE, SUPPORT

PLATE, SUPPORT

16

BUSHING, ELECTRIC CABLE

BUSHING, ELECTRIC CABLE

17

BUSHING, CABLE ENTRY

BUSHING, CABLE ENTRY

18

HEX HD CAP SCREW, 1/4 - 20 X 1-3/8

HEX HD CAP SCREW, 1/4 - 20 X 1-3/8

19

HEX SLOT HD SCREW, 1/4 - 20 X 5/8

HEX SLOT HD SCREW, 1/4 - 20 X 5/8

20

HEX CAP SCREW, 5/16 - 18 X 1

HEX CAP SCREW, 5/16 - 18 X 1

21

Стопорная шайба

Стопорная шайба

22

HEX CAP SCREW, 5/16 - 18 X 5/8

HEX CAP SCREW, 5/16 - 18 X 5/8

23

STOP, DEFLECTION

STOP, DEFLECTION

24

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

25

Шайба

Шайба

26

Стопорная шайба

Стопорная шайба

27

CAM, LATCH SHAFT

CAM, LATCH SHAFT

28

Упругая Шайба

Упругая Шайба

29

SPACER, LATCH SHAFT

SPACER, LATCH SHAFT

30

Прокладка

Прокладка

31

RETAINER, ENGINE COVER

RETAINER, ENGINE COVER

32

PAN HEAD TAPPING SCREW, 10 X 7/16

PAN HEAD TAPPING SCREW, 10 X 7/16

33

HEX NUT, 10 - 24

HEX NUT, 10 - 24

34

HEX CAPSCREW, 5/16 - 18 X 5/8

HEX CAPSCREW, 5/16 - 18 X 5/8

35

Стопорная шайба

Стопорная шайба

36

LATCH, ROLLER BRACKET W/ROLLER

LATCH, ROLLER BRACKET W/ROLLER

37

TRIM, FRONT

TRIM, FRONT

-

BLANKET, SILENCER - TOP (NOT SHOWN)

BLANKET, SILENCER - TOP (NOT SHOWN)

-

BLANKET, SILENCER - SIDE (NOT SHOWN)

BLANKET, SILENCER - SIDE (NOT SHOWN)
