Powerhead для лодочных моторов Force H0756H82H (1982)

Москва и регионы России

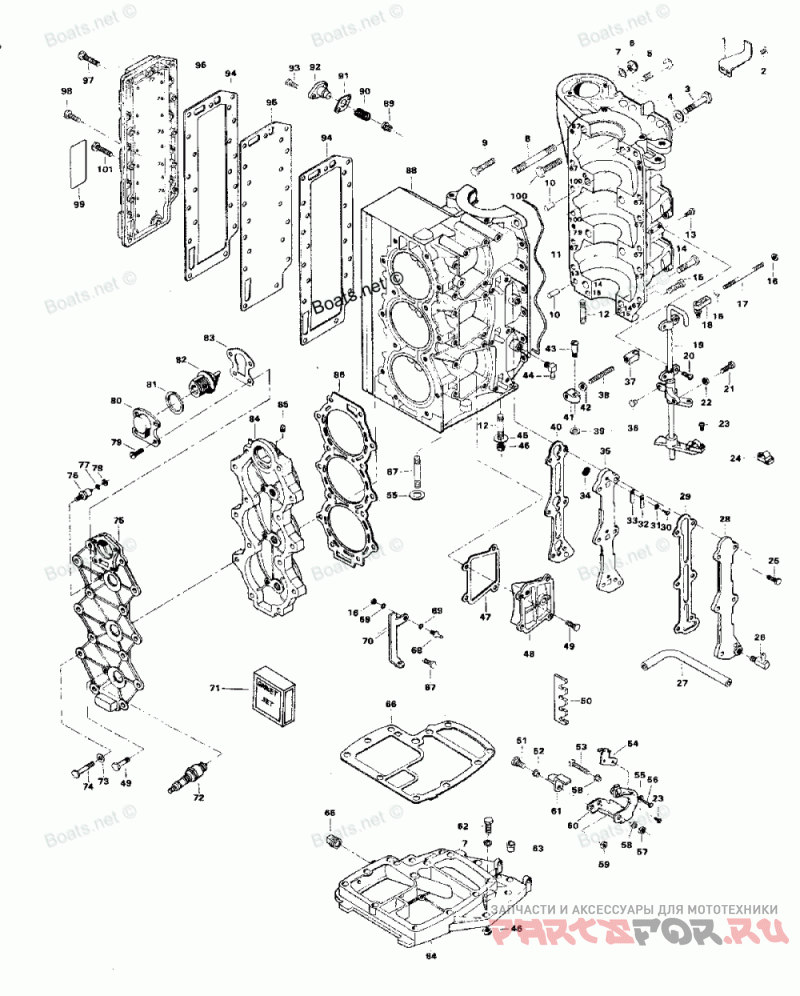

Powerhead

Force H0756H82H

Powerhead

#

oem код

название

цена

1

TIMING POINTER

TIMING POINTER

2

PAN HD SCREW, 10 - 24 X 3/8

PAN HD SCREW, 10 - 24 X 3/8

3

HEX BOLT, 3/8 - 16 X 2-3/4

HEX BOLT, 3/8 - 16 X 2-3/4

4

PLAIN WASHER

PLAIN WASHER

5

HEX BOLT, 3/8 - 16 X 3

HEX BOLT, 3/8 - 16 X 3

6

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

7

SPRING LOCKWASHER

SPRING LOCKWASHER

8

Шпилька

Шпилька

9

HEX HD SCREW, 1/4 - 20 X 3/4

HEX HD SCREW, 1/4 - 20 X 3/4

10

Палец

Палец

11

PARTING LINE SEAL

PARTING LINE SEAL

12

STUD, FORWARD

STUD, FORWARD

13

HEX CAP SCREW, 1/4 - 20 X 1

HEX CAP SCREW, 1/4 - 20 X 1

14

HEX BOLT, 3/8 - 16 X 1-3/4

HEX BOLT, 3/8 - 16 X 1-3/4

15

FILL HD SCREW, 1/4 - 20 X 1-1/4

FILL HD SCREW, 1/4 - 20 X 1-1/4

16

HEX NUT, 10 - 32

HEX NUT, 10 - 32

17

THROTTLE LINK

THROTTLE LINK

18

BALL JOINT W/STUD

BALL JOINT W/STUD

19

TOWERSHAFT

TOWERSHAFT

20

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

21

FILL HD SCREW, 1/4 - 20 X 1-1/4

FILL HD SCREW, 1/4 - 20 X 1-1/4

22

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

23

FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/8

FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/8

24

SWIVEL W/PIVOT SCREW AND NUT

SWIVEL W/PIVOT SCREW AND NUT

25

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

26

Фитинг

Фитинг

27

Шланг

Шланг

28

CYLINDER DRAIN COVER

CYLINDER DRAIN COVER

29

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

30

PAN HD SCREW, 4 - 40 X 3/16

PAN HD SCREW, 4 - 40 X 3/16

31

PLAIN WASHER

PLAIN WASHER

32

REED STOP

REED STOP

33

REED

REED

34

Водозаборная решетка

Водозаборная решетка

35

CYLINDER DRAIN REED PLATE

CYLINDER DRAIN REED PLATE

36

PLASTIC RIVET

PLASTIC RIVET

37

TOWERSHAFT CONTROL ROD END

TOWERSHAFT CONTROL ROD END

38

DISTRIBUTOR CONTROL ROD

DISTRIBUTOR CONTROL ROD

39

PLAIN WASHER

PLAIN WASHER

40

GASKET, CYLINDER DRAIN REED PLATE

GASKET, CYLINDER DRAIN REED PLATE

41

DISTRIBUTOR CONTROL ROD END

DISTRIBUTOR CONTROL ROD END

42

HEX NUT, 1/4 - 28

HEX NUT, 1/4 - 28

43

SWIVEL

SWIVEL

44

Колено

Колено

45

PLAIN WASHER

PLAIN WASHER

46

STOP NUT, 3/18 - 16

STOP NUT, 3/18 - 16

47

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

48

TRANSFER PORT COVER

TRANSFER PORT COVER

49

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

50

CLIP, SPARK PLUG WIRE

CLIP, SPARK PLUG WIRE

51

Винт

Винт

52

Подшипник

Подшипник

53

HEX BOLT, 5/16 - 18 X 4-1/4

HEX BOLT, 5/16 - 18 X 4-1/4

54

CAM, STARTER INTERLOCK

CAM, STARTER INTERLOCK

55

PLAIN WASHER

PLAIN WASHER

56

SLOTTED PAN HD MACHINE SCREW, 10 - 24 X 5/16

SLOTTED PAN HD MACHINE SCREW, 10 - 24 X 5/16

57

STOP NUT, 5/16 - 18

STOP NUT, 5/16 - 18

58

Подшипник

Подшипник

59

STOP NUT, 1/4 - 20

STOP NUT, 1/4 - 20

60

GEAR SHIFT ARM

GEAR SHIFT ARM

61

INTERLOCK ARM

INTERLOCK ARM

62

HEX BOLT, 3/8 - 16 X 1-1/4

HEX BOLT, 3/8 - 16 X 1-1/4

63

BEARING, TOWERSHAFT

BEARING, TOWERSHAFT

64

SPACER PLATE

SPACER PLATE

65

Заглушка

Заглушка

66

CYLINDER EXHAUST GASKET, UPPER

CYLINDER EXHAUST GASKET, UPPER

67

HEX HD SCREW, 1/4 - 2 X 3/4

HEX HD SCREW, 1/4 - 2 X 3/4

68

ROD END CONNECTOR STUD

ROD END CONNECTOR STUD

69

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

70

Крепление

Крепление

71

Комплет прокладок

Комплет прокладок

-

TRANSFER PORT COVER GASKET

TRANSFER PORT COVER GASKET

-

CRANKSHAFT BRG. CAGE SEAL

CRANKSHAFT BRG. CAGE SEAL

-

THERMOSTAT GROMMET

THERMOSTAT GROMMET

-

CRANKCASE SEAL

CRANKCASE SEAL

-

EXHAUST PORT PLATE GASKET

EXHAUST PORT PLATE GASKET

-

MANIFOLD GASKET

MANIFOLD GASKET

-

CARBURETOR ADAPTER FLANGE GASKET

CARBURETOR ADAPTER FLANGE GASKET

-

CYLINDER, EXHAUST - LOWER GASKET

CYLINDER, EXHAUST - LOWER GASKET

-

CYLINDER DRAIN COVER GASKET

CYLINDER DRAIN COVER GASKET

-

CYLINDER DRAIN REED PLATE GASKET

CYLINDER DRAIN REED PLATE GASKET

-

BY-PASS VALVE PLATE GASKET

BY-PASS VALVE PLATE GASKET

-

CARBURETOR GASKET

CARBURETOR GASKET

-

Прокладка головки блока цилиндров

Прокладка головки блока цилиндров

-

THERMOSTAT COVER GASKET

THERMOSTAT COVER GASKET

-

INTAKE GASKET

INTAKE GASKET

72

SPARK PLUG (AC V40 FFM)

SPARK PLUG (AC V40 FFM)

-

SPARK PLUG (CHAMPION QUL-77V) - CANADA

SPARK PLUG (CHAMPION QUL-77V) - CANADA

73

PLAIN WASHER

PLAIN WASHER

74

HEX BOLT, 5/16 - 18 X 2-3/8

HEX BOLT, 5/16 - 18 X 2-3/8

75

CYLINDER HEAD COVER

CYLINDER HEAD COVER

76

THERMOSWITCH

THERMOSWITCH

77

SPRING LOCKWASHER

SPRING LOCKWASHER

78

HEX NUT, 10 - 32

HEX NUT, 10 - 32

79

FILL HD SCREW, 1/4 - 20 X 5/8

FILL HD SCREW, 1/4 - 20 X 5/8

80

Крышка термостата

Крышка термостата

81

Уплотнитель резиновый

Уплотнитель резиновый

82

Термостат

Термостат

83

GASKET, THERMOSTAT COVER

GASKET, THERMOSTAT COVER

84

Головка цилиндра

Головка цилиндра

85

Заглушка

Заглушка

86

Прокладка головки блока цилиндров

Прокладка головки блока цилиндров

87

STUD, REAR

STUD, REAR

88

Цилиндр

Цилиндр

-

SHORT BLOCK.

SHORT BLOCK.

89

BY-PASS VALVE

BY-PASS VALVE

90

SPRING, BY-PASS VALVE

SPRING, BY-PASS VALVE

91

GASKET, BY-PASS VALVE

GASKET, BY-PASS VALVE

92

BY-PASS VALVE COVER

BY-PASS VALVE COVER

93

HEX HD SCREW, 10 - 24 X 5/8

HEX HD SCREW, 10 - 24 X 5/8

94

GASKET, EXHAUST PORT PLATE

GASKET, EXHAUST PORT PLATE

95

EXHAUST PORT PLATE

EXHAUST PORT PLATE

96

EXHAUST PORT COVER

EXHAUST PORT COVER

97

HEX HD SCREW, 1/4 - 20 X 1-3/8

HEX HD SCREW, 1/4 - 20 X 1-3/8

98

HEX BOLT, 1/4 - 20 X 7/8

HEX BOLT, 1/4 - 20 X 7/8

99

DECAL, WIRING

DECAL, WIRING

100

HEX CAP SCREW, 1/4 - 20 X 7/8

HEX CAP SCREW, 1/4 - 20 X 7/8

101

HEX HD SCREW, 1/4 - 20 X 1-1/8

HEX HD SCREW, 1/4 - 20 X 1-1/8
