Motor Leg для лодочных моторов Force H0507H82B (1982)

Москва и регионы России

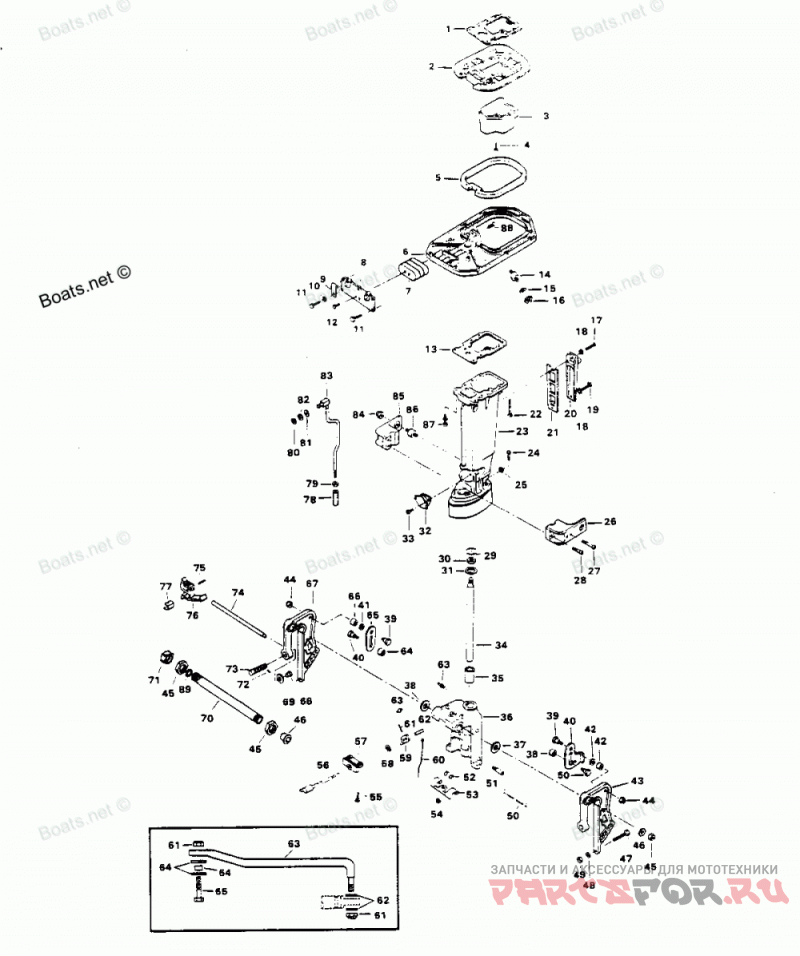

Motor Leg

Force H0507H82B

Motor Leg

#

oem код

название

цена

1

CYLINDER EXHAUST GASKET UPPER

CYLINDER EXHAUST GASKET UPPER

2

SPACER PLATE

SPACER PLATE

3

LEG EXHAUST TUBE

LEG EXHAUST TUBE

4

FILL HD M. SCREW W/LOCKWASHER, 10 - 24 X 1/2

FILL HD M. SCREW W/LOCKWASHER, 10 - 24 X 1/2

5

SEAL, KINGPIN PLATE

SEAL, KINGPIN PLATE

6

KINGPIN PLATE

KINGPIN PLATE

7

SHOCK MOUNT UPPER

SHOCK MOUNT UPPER

8

SHOCK MOUNT UPPER COVER

SHOCK MOUNT UPPER COVER

9

Зажим

Зажим

10

PLAIN WASHER

PLAIN WASHER

11

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

12

HEX HD SCREW W/LOCKWASHER, 1/4 - 28 X 5/8

HEX HD SCREW W/LOCKWASHER, 1/4 - 28 X 5/8

13

CYLINDER EXHAUST GASKET LOWER

CYLINDER EXHAUST GASKET LOWER

14

SHOCK MOUNT - SIDE - UPPER

SHOCK MOUNT - SIDE - UPPER

15

PLAIN WASHER

PLAIN WASHER

16

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

17

HEX HD SCREW, S.S., 1/4 - 20 X 1-3/8

HEX HD SCREW, S.S., 1/4 - 20 X 1-3/8

18

SPRING LOCKWASHER

SPRING LOCKWASHER

19

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

20

MOTOR LEG EXHAUST COVER

MOTOR LEG EXHAUST COVER

21

MOTOR LEG EXHAUST COVER GASKET

MOTOR LEG EXHAUST COVER GASKET

22

FILL HD SCREW, 1/4 - 20 X 3-7/16

FILL HD SCREW, 1/4 - 20 X 3-7/16

23

MOTOR LEG

MOTOR LEG

24

HEX HD CAP SCREW, S.S., 3/8 - 16 X 1-1/8

HEX HD CAP SCREW, S.S., 3/8 - 16 X 1-1/8

25

SPRING LOCKWASHER

SPRING LOCKWASHER

26

SHOCK MOUNT LOWER COVER - PORT

SHOCK MOUNT LOWER COVER - PORT

27

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 3-1/2

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 3-1/2

28

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 1-1/4

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 1-1/4

29

PLASTIC PLUG

PLASTIC PLUG

30

KINGPIN NUT

KINGPIN NUT

31

SWIVEL BRACKET WASHER

SWIVEL BRACKET WASHER

32

SHOCK MOUNT LOWER

SHOCK MOUNT LOWER

33

FILL HD SCREW, S.S., 5/16 - 18 X 1/2

FILL HD SCREW, S.S., 5/16 - 18 X 1/2

34

KINGPIN

KINGPIN

35

SWIVEL BRACKET BEARING

SWIVEL BRACKET BEARING

36

SWIVEL BRACKET

SWIVEL BRACKET

37

STERN BRACKET FRICTION WASHER

STERN BRACKET FRICTION WASHER

38

SPACER, TILT STOP

SPACER, TILT STOP

39

TILT STOP PIVOT

TILT STOP PIVOT

40

TILT STOP - PORT

TILT STOP - PORT

41

BOWED SPRING WASHER

BOWED SPRING WASHER

42

SPACER, TILT STOP

SPACER, TILT STOP

43

STERN BRACKET - PORT

STERN BRACKET - PORT

44

Гайка

Гайка

45

LOCK NUT, PIVOT TUBE

LOCK NUT, PIVOT TUBE

46

PLASTIC PLUG, PIVOT TUBE

PLASTIC PLUG, PIVOT TUBE

47

HEX HD SCREW, S.S., 3/8 - 16 X 3

HEX HD SCREW, S.S., 3/8 - 16 X 3

48

PLAIN WASHER

PLAIN WASHER

49

HEX NUT, S.S., 3/8 - 16

HEX NUT, S.S., 3/8 - 16

50

DECAL, TILT LOCK

DECAL, TILT LOCK

51

Штифт

Штифт

52

REVERSE LOCK SPRING

REVERSE LOCK SPRING

53

REVERSE LOCK

REVERSE LOCK

54

STOP NUT

STOP NUT

55

PAN HD SCREW, 10 - 24 X 9/16

PAN HD SCREW, 10 - 24 X 9/16

56

HANDLE AND SHAFT

HANDLE AND SHAFT

57

Подшипник

Подшипник

58

RING, RETAINING-REV. LOCK SHAFT

RING, RETAINING-REV. LOCK SHAFT

59

Рычаг

Рычаг

60

LINK

LINK

61

Пружинный Штифт

Пружинный Штифт

62

Подшипник

Подшипник

63

Масленка

Масленка

64

SPACER, TILT STOP

SPACER, TILT STOP

65

TILT STOP, STARBOARD

TILT STOP, STARBOARD

66

SPACER, TILT STOP

SPACER, TILT STOP

67

STERN BRACKET - STARBOARD

STERN BRACKET - STARBOARD

68

Шпилька

Шпилька

69

CLAMP SCREW FOOT

CLAMP SCREW FOOT

70

TUBE, PIVOT STEERING

TUBE, PIVOT STEERING

71

PLASTIC CAP, PIVOT TUBE

PLASTIC CAP, PIVOT TUBE

72

Пружинный Штифт

Пружинный Штифт

73

CLAMP SCREW

CLAMP SCREW

74

STERN BRACKET LOCK BAR

STERN BRACKET LOCK BAR

75

Пружинный Штифт

Пружинный Штифт

76

HANDLE, LOCK BAR

HANDLE, LOCK BAR

77

SPRING LOCK BAR HANDLE

SPRING LOCK BAR HANDLE

78

GEAR SHIFT ROD COUPLING

GEAR SHIFT ROD COUPLING

79

HEX NUT, S.S., 5/16 - 18

HEX NUT, S.S., 5/16 - 18

80

Стопорное кольцо

Стопорное кольцо

81

BOWED SPRING WASHER

BOWED SPRING WASHER

82

PLAIN WASHER

PLAIN WASHER

83

GEAR SHIFT ROD UPPER

GEAR SHIFT ROD UPPER

84

ACORN NUT, S.S., 5/16 - 18

ACORN NUT, S.S., 5/16 - 18

85

SHOCK MOUNT LOWER COVER - STARBOARD

SHOCK MOUNT LOWER COVER - STARBOARD

86

SHOCK MOUNT SIDE LOWER

SHOCK MOUNT SIDE LOWER

87

FLANGED 12 POINT SCREW, 5/16 - 18 X 2

FLANGED 12 POINT SCREW, 5/16 - 18 X 2

88

FLAT HD SCREW, 1/4 - 28 X 5/8

FLAT HD SCREW, 1/4 - 28 X 5/8

89

SEAL, PIVOT TUBE

SEAL, PIVOT TUBE
