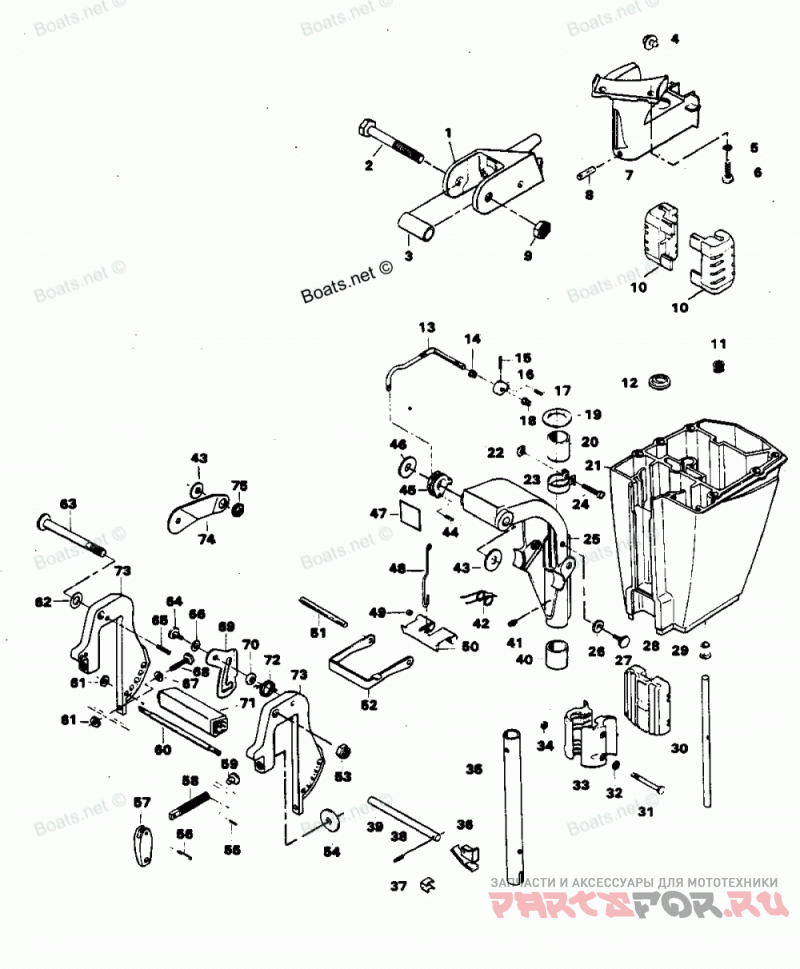

Motor Leg

Force H0095H82H

Motor Leg

#

oem код

название

цена

1

STEERING HANDLE BRACKET

STEERING HANDLE BRACKET

2

SCREW, STEERING HDL. BRKT.

SCREW, STEERING HDL. BRKT.

3

SPACER, STEERING HDL. BRKT.

SPACER, STEERING HDL. BRKT.

4

Амортизатор ударов

Амортизатор ударов

5

EXTERNAL TOOTH LOCKWASHER

EXTERNAL TOOTH LOCKWASHER

6

HEX CAP SCREW, 5/16 - 18 X 5/8

HEX CAP SCREW, 5/16 - 18 X 5/8

7

STEERING ARM

STEERING ARM

8

Пружинный Штифт

Пружинный Штифт

9

LOCK NUT 3/8 - 16

LOCK NUT 3/8 - 16

10

SHOCK MOUNT UPPER

SHOCK MOUNT UPPER

11

SPRING, LEG WATER BRACKET

SPRING, LEG WATER BRACKET

12

SEAL, WATER LINE UPPER

SEAL, WATER LINE UPPER

13

LEVER, REVERSE LOCK INTERMEDIATE ASSEMBLY

LEVER, REVERSE LOCK INTERMEDIATE ASSEMBLY

14

Подшипник

Подшипник

15

Пружинный Штифт

Пружинный Штифт

16

LEVER, REVERSE LOCK

LEVER, REVERSE LOCK

17

Пружинный Штифт

Пружинный Штифт

18

Подшипник

Подшипник

19

WASHER, SWIVEL BRACKET

WASHER, SWIVEL BRACKET

20

BEARING, SWIVEL BRACKET

BEARING, SWIVEL BRACKET

21

MOTOR LEG

MOTOR LEG

22

SQUARE NUT, 1/4 - 20

SQUARE NUT, 1/4 - 20

23

CLAMP, STEERING HANDLE

CLAMP, STEERING HANDLE

24

FILL HD SCREWS, 1/4 - 20 X 1-3/8

FILL HD SCREWS, 1/4 - 20 X 1-3/8

25

SWIVEL BRACKET

SWIVEL BRACKET

26

SPACER, TILT LOCK

SPACER, TILT LOCK

27

TILT LOCK PIVOT

TILT LOCK PIVOT

28

SHOCK MOUNT LOWER

SHOCK MOUNT LOWER

29

SLEEVE WATER LINE

SLEEVE WATER LINE

30

WATER LINE

WATER LINE

31

HEX CAP SCREW, 1/4 - 20 X 2-3/8

HEX CAP SCREW, 1/4 - 20 X 2-3/8

32

SPRING LOCKWASHER

SPRING LOCKWASHER

33

BRACKET, SHOCK MOUNT LOWER

BRACKET, SHOCK MOUNT LOWER

34

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

35

KING PIN

KING PIN

36

LOCK BAR HANDLE

LOCK BAR HANDLE

37

SPRING, LOCK BAR HANDLE

SPRING, LOCK BAR HANDLE

38

Пружинный Штифт

Пружинный Штифт

39

LOCK BAR

LOCK BAR

40

BEARING, SWIVEL BRACKET

BEARING, SWIVEL BRACKET

41

Масленка

Масленка

42

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

43

WASHER, STERN BRACKET

WASHER, STERN BRACKET

44

Пружинный Штифт

Пружинный Штифт

45

REVERSE LOCK RELEASE LEVER

REVERSE LOCK RELEASE LEVER

46

Шайба

Шайба

47

DECAL, TILT RELEASE

DECAL, TILT RELEASE

48

LINK, REVERSE LOCK LEVER

LINK, REVERSE LOCK LEVER

49

SPACER, REVERSE LOCK

SPACER, REVERSE LOCK

50

REVERSE LOCK

REVERSE LOCK

51

GROOVE PIN

GROOVE PIN

52

BRACKET SHALLOW WATER DRIVE

BRACKET SHALLOW WATER DRIVE

53

STOP NUT, 3/8 - 16

STOP NUT, 3/8 - 16

54

CLAMP SCREW FOOT

CLAMP SCREW FOOT

55

Пружинный Штифт

Пружинный Штифт

56

Пружинный Штифт

Пружинный Штифт

57

HANDLE, CLAMP SCREW

HANDLE, CLAMP SCREW

58

CLAMP SCREW

CLAMP SCREW

59

STUD CLAMP SCREW

STUD CLAMP SCREW

60

TIE BAR

TIE BAR

61

LOCK NUT

LOCK NUT

62

PLAIN WASHER

PLAIN WASHER

63

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

64

TILT LOCK PIVOT

TILT LOCK PIVOT

65

Пружинный Штифт

Пружинный Штифт

66

BOWED SPRING WASHER

BOWED SPRING WASHER

67

PLAIN WASHER

PLAIN WASHER

68

HEX SLOTTED HD SCREW, 1/4 - 20 X 3 3/16

HEX SLOTTED HD SCREW, 1/4 - 20 X 3 3/16

69

TILT LOCK

TILT LOCK

70

SPACER, TILT LOCK

SPACER, TILT LOCK

71

CARRYING HANDLE

CARRYING HANDLE

72

SPRING, TILT STOP

SPRING, TILT STOP

73

STERN BRACKET PORT

STERN BRACKET PORT

74

BRACKET, LOCK STEERING

BRACKET, LOCK STEERING

75

NUT, STEERING LOCK BRACKET

NUT, STEERING LOCK BRACKET
