Power Head для лодочных моторов Force H0092B82J (1982)

Москва и регионы России

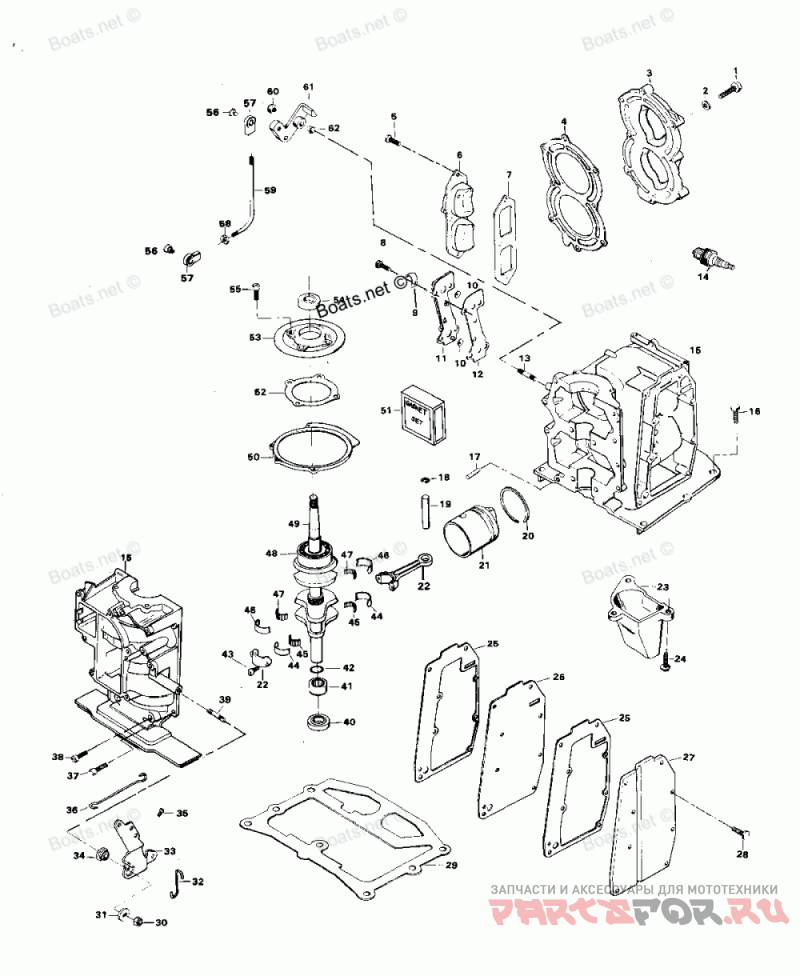

Power Head

Force H0092B82J

Power Head

#

oem код

название

цена

-

HEX SOCKET HEADLESS SET SC. 1/4 - 28 X 3/16

HEX SOCKET HEADLESS SET SC. 1/4 - 28 X 3/16

1

SCREW, CYLINDER HEAD

SCREW, CYLINDER HEAD

2

PLAIN WASHER

PLAIN WASHER

3

Головка цилиндров

Головка цилиндров

4

Прокладка

Прокладка

5

HEX CAP SCREW, 1/4 - 20 X 5/8, (92H2J, 92B2J)

HEX CAP SCREW, 1/4 - 20 X 5/8, (92H2J, 92B2J)

-

SCREW, (98H2C, 98B2C)

SCREW, (98H2C, 98B2C)

6

COVER, TRANSFER PORT (92H2J, 92B2J)

COVER, TRANSFER PORT (92H2J, 92B2J)

-

COVER, TRANSFER PORT (98H2C, 98B2C)

COVER, TRANSFER PORT (98H2C, 98B2C)

7

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

8

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

9

HOSE CLAMP (92H2J, 92B2J)

HOSE CLAMP (92H2J, 92B2J)

10

Водозаборная решетка

Водозаборная решетка

11

COVER, CYLINDER DRAIN

COVER, CYLINDER DRAIN

12

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

13

STUD, INTERLOCK LEVER (98H2C, 98B2C)

STUD, INTERLOCK LEVER (98H2C, 98B2C)

14

PLUG, SPARK, CHAMPION (L-4-J)

PLUG, SPARK, CHAMPION (L-4-J)

-

PLUG, SPARK CHAMPION (RL-4-J), FOR CANADA

PLUG, SPARK CHAMPION (RL-4-J), FOR CANADA

15

CYLINDER W/CRANKCASE COVER

CYLINDER W/CRANKCASE COVER

-

Цилиндр

Цилиндр

-

SHORT BLOCK (NOT SHOWN).

SHORT BLOCK (NOT SHOWN).

-

SHORT BLOCK (NOT SHOWN).

SHORT BLOCK (NOT SHOWN).

16

HEX CAP SCREW, 5/16 - 18 X 1

HEX CAP SCREW, 5/16 - 18 X 1

17

Палец

Палец

18

RETAINING RING, PISTON PIN

RETAINING RING, PISTON PIN

19

Палец поршневой

Палец поршневой

20

PISTON RING SET (2 PER SET)

PISTON RING SET (2 PER SET)

21

PISTONS

PISTONS

22

Шатун

Шатун

23

EXHAUST TUBE

EXHAUST TUBE

24

HEX WASHER HD M. SCREW, 1/4 - 20 X 5/8

HEX WASHER HD M. SCREW, 1/4 - 20 X 5/8

25

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

26

PLATE, EXHAUST

PLATE, EXHAUST

27

Защита

Защита

28

HEX HD SCREW, 1/4 - 20 X 7/8

HEX HD SCREW, 1/4 - 20 X 7/8

29

GASKET, CYLINDER MOUNTING

GASKET, CYLINDER MOUNTING

30

STOP NUT, 5/16 - 24

STOP NUT, 5/16 - 24

31

Шайба

Шайба

32

LINK, MAGNETO SHAFT

LINK, MAGNETO SHAFT

33

LEVER, MAGNETO CONTROL

LEVER, MAGNETO CONTROL

34

BEARING, MAGNETO CONTROL LEVER

BEARING, MAGNETO CONTROL LEVER

35

FILL HD SCREW, 1/4 - 20 X 1 1/4

FILL HD SCREW, 1/4 - 20 X 1 1/4

36

LINK, THROTTLE CAM

LINK, THROTTLE CAM

37

FILL HD SCREW, 1/4 - 20 X 3/4

FILL HD SCREW, 1/4 - 20 X 3/4

38

FILL HD SCREW, 5/16 - 18 X 1 1/4

FILL HD SCREW, 5/16 - 18 X 1 1/4

39

STUD, MAGNETO CONTROL LEVER

STUD, MAGNETO CONTROL LEVER

40

SEAL, CRANKSHAFT LOWER

SEAL, CRANKSHAFT LOWER

41

BEARING, CRANKSHAFT LOWER MAIN

BEARING, CRANKSHAFT LOWER MAIN

42

SEAL, DRIVESHAFT SPLINE

SEAL, DRIVESHAFT SPLINE

43

SCREW, CONNECTING ROD

SCREW, CONNECTING ROD

44

LINER, CONNECTING ROD (2 PER SET)

LINER, CONNECTING ROD (2 PER SET)

45

ROLLER SET, CONNECTING ROD (26 PER SET)

ROLLER SET, CONNECTING ROD (26 PER SET)

46

MAIN BEARING LINER SET (2 PER SET)

MAIN BEARING LINER SET (2 PER SET)

47

ROLLER SET, MAIN BEARING (26 PER SET)

ROLLER SET, MAIN BEARING (26 PER SET)

48

BEARING, CRANKSHAFT UPPER MAIN

BEARING, CRANKSHAFT UPPER MAIN

49

Коленчатый вал

Коленчатый вал

50

RING, MAGNETO STATOR

RING, MAGNETO STATOR

51

Комплет прокладок

Комплет прокладок

-

GASKET, CARBURETOR

GASKET, CARBURETOR

-

Прокладка

Прокладка

-

GASKET, REED PLATE

GASKET, REED PLATE

-

GASKET, TRANSFER PORT

GASKET, TRANSFER PORT

-

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

-

GASKET CYLINDER MOUNTING

GASKET CYLINDER MOUNTING

-

Прокладка

Прокладка

-

Прокладка

Прокладка

-

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

52

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

53

CAGE, CRANKSHAFT BEARING W/SEAL

CAGE, CRANKSHAFT BEARING W/SEAL

54

SEAL, CRANKSHAFT UPPER

SEAL, CRANKSHAFT UPPER

55

FILL HD SCREW, 1/4 - 20 X 7/8

FILL HD SCREW, 1/4 - 20 X 7/8

56

SWIVEL, INTERLOCK ROD BEARING (98H2C, 98B2C)

SWIVEL, INTERLOCK ROD BEARING (98H2C, 98B2C)

57

BEARING, INTERLOCK ROD (98H2C, 98B2C)

BEARING, INTERLOCK ROD (98H2C, 98B2C)

58

HEX NUT, 10 - 24 (98H2C, 98B2C)

HEX NUT, 10 - 24 (98H2C, 98B2C)

59

INTERLOCK ROD (98H2C, 98B2C)

INTERLOCK ROD (98H2C, 98B2C)

60

STOP NUT, 1/4 - 20 (98H2C, 98B2C)

STOP NUT, 1/4 - 20 (98H2C, 98B2C)

61

INTERLOCK LEVER (98H2C, 98B2C)

INTERLOCK LEVER (98H2C, 98B2C)

62

BEARING, INTERLOCK LEVER (98H2C, 98B2C)

BEARING, INTERLOCK LEVER (98H2C, 98B2C)
