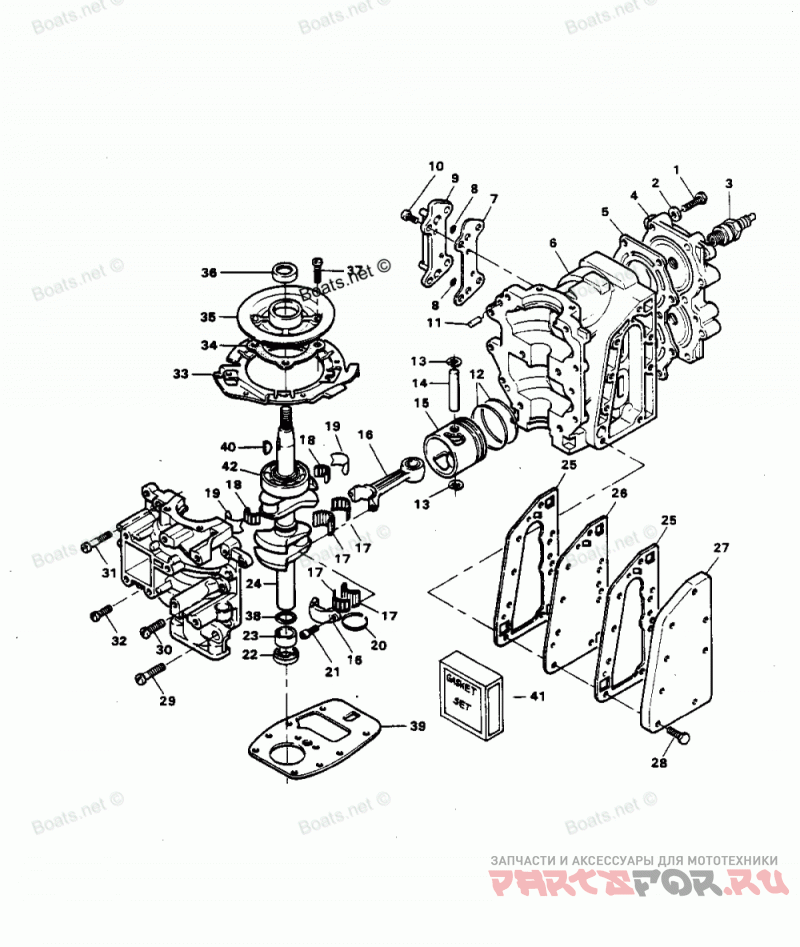

Power Head для лодочных моторов Force H0071H82C (1982)

Москва и регионы России

Power Head

Force H0071H82C

Power Head

#

oem код

название

цена

1

SCREW, CYLINDER HEAD

SCREW, CYLINDER HEAD

2

PLAIN WASHER

PLAIN WASHER

3

SPARK PLUG (L-86)

SPARK PLUG (L-86)

-

SPARK PLUG, (QL - 86) CANADA ONLY

SPARK PLUG, (QL - 86) CANADA ONLY

4

Головка цилиндра

Головка цилиндра

5

Прокладка

Прокладка

6

Цилиндр

Цилиндр

-

CYLINDER COMPLETE. (NOT SHOWN).

CYLINDER COMPLETE. (NOT SHOWN).

7

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

8

SCREEN, CYLINDER DRAIN

SCREEN, CYLINDER DRAIN

9

COVER, CYLINDER DRAIN

COVER, CYLINDER DRAIN

10

SCREW, 1/4 - 20 X 5/8

SCREW, 1/4 - 20 X 5/8

11

Палец

Палец

12

PISTON RING (2 RINGS)

PISTON RING (2 RINGS)

13

PISTON PIN RETAINING RING

PISTON PIN RETAINING RING

14

Палец поршневой

Палец поршневой

15

Поршень

Поршень

16

Шатун

Шатун

17

BEARING ASSEMBLY W/CAGE & ROLLERS

BEARING ASSEMBLY W/CAGE & ROLLERS

18

ROLLER ASSEMBLY, CENTER MAIN BEARING

ROLLER ASSEMBLY, CENTER MAIN BEARING

19

LINER, CENTER MAIN

LINER, CENTER MAIN

20

CRANKCASE SEAL

CRANKCASE SEAL

21

CONNECTING ROD SCREW

CONNECTING ROD SCREW

22

SEAL, CRANKSHAFT LOWER

SEAL, CRANKSHAFT LOWER

23

BEARING, CRANKSHAFT LOWER MAIN

BEARING, CRANKSHAFT LOWER MAIN

24

Коленчатый вал

Коленчатый вал

25

GASKET EXHAUST

GASKET EXHAUST

26

PLATE EXHAUST

PLATE EXHAUST

27

COVER EXHAUST

COVER EXHAUST

28

SCREW, 1/4 - 20 X 1

SCREW, 1/4 - 20 X 1

29

SCREW, 5/16 - 18 X 1 1/4

SCREW, 5/16 - 18 X 1 1/4

30

SCREW, 5/16 - 18 X 1

SCREW, 5/16 - 18 X 1

31

SCREW, 1/4 - 20 X 1 3/8

SCREW, 1/4 - 20 X 1 3/8

32

SCREW, 1/4 - 20 X 3/4

SCREW, 1/4 - 20 X 3/4

33

RING STATOR

RING STATOR

34

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

35

CAGE, CRANKSHAFT BEARING

CAGE, CRANKSHAFT BEARING

36

SEAL, CRANKSHAFT UPPER

SEAL, CRANKSHAFT UPPER

37

FILL HD SCREW, 1/4 - 20 X 7/8

FILL HD SCREW, 1/4 - 20 X 7/8

38

SEAL, CRANKSHAFT SPLINE

SEAL, CRANKSHAFT SPLINE

39

GASKET, CYLINDER MOUNTING

GASKET, CYLINDER MOUNTING

40

MAGNETO KEY

MAGNETO KEY

41

GASKET SET.

GASKET SET.

-

GASKET, CARBURETOR

GASKET, CARBURETOR

-

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

-

Прокладка

Прокладка

-

GASKET, REED PLATE

GASKET, REED PLATE

-

Прокладка

Прокладка

-

GASKET, CYLINDER MOUNTING

GASKET, CYLINDER MOUNTING

-

GASKET, LEG MOUNTING

GASKET, LEG MOUNTING

-

Прокладка

Прокладка

-

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

42

BEARING, CRANKSHAFT UPPER

BEARING, CRANKSHAFT UPPER
