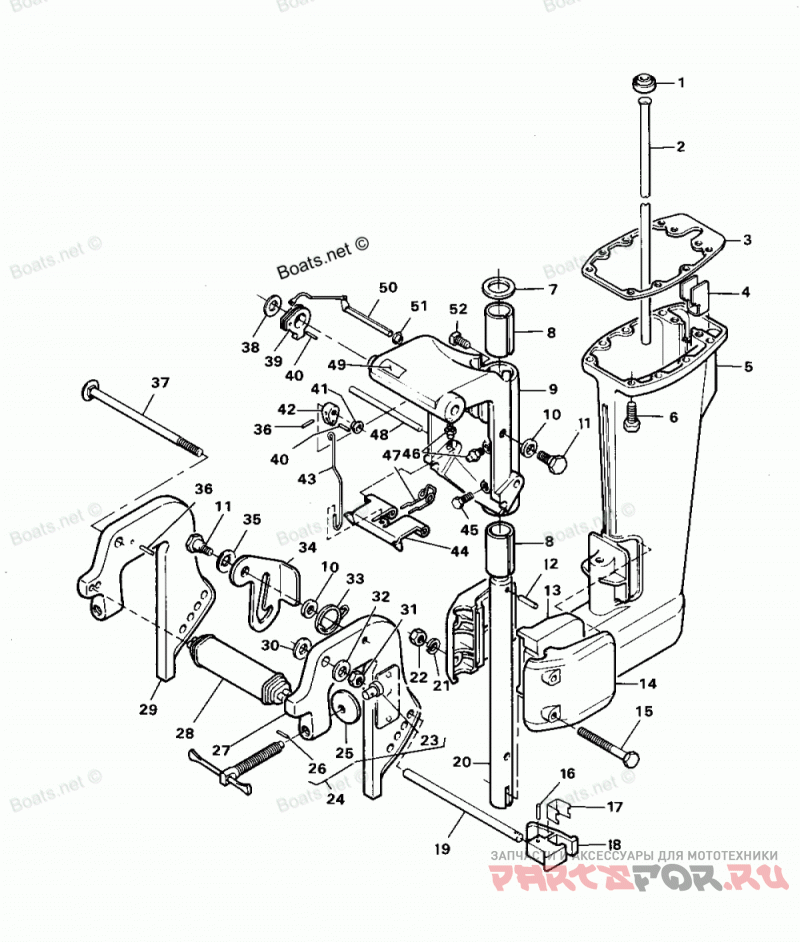

Motor Leg

Force H0064H82H

Force
#oem кодцена
1
F318342
SEAL, WATERLINE INLET UPPER
2
F525244
WATERLINE
3
F525453
GASKET LEG MOUNTING
4
F525779
BAFFLE IDLE RELIEF
5
F525133
MOTOR LEG
6
F1532
HEX CAP SCREW, 1/4 - 20 X 1
7
F286011
WASHER SWIVEL BRACKET
8
F286169
BEARING SWIVEL BRACKET
9
817964A2
SWIVEL BRACKET
10
F286451
SPACER TILT LOCK
11
F286422-1
PIVOT TILT LOCK
12
F1805
SPRING PIN, 1/4 X 1 - 3/8
13
F525346
MOUNT LOWER SHOCK
14
F525707
COVER, SHOCK MOUNT LOWER
15
F1972
HEX HD SCREW, 1/4 - 20 X 2 1/2
16
F8540
SPRING PIN, 3/32 X 5/8
17
F286461
SPRING LOCK BAR HANDLE
18
F286114
HANDLE LOCK BAR
19
FA286113
BAR LOCK
20
F525019
KINGPIN
21
F8083
Стопорная шайба
22
F1341
NUT, 1/4 - 20
23
F66480
STUD CLAMP SCREW
24
FA28073-1
CLAMP SCREW
25
F24074
FOOT CLAMP SCREW
26
F1794
Пружинный Штифт
27
FA536532
BRACKET STERN PORT,
28
F286647
HANDLE CARRYING
29
FA536032
BRACKET STERN STARBOARD
30
F286286-1
Шайба
31
F7026
NUT, 3/8 - 16
32
F2014
PLAIN WASHER
33
F286544-1
SPRING TILT LOCK
34
F429541
LOCK TILT
35
F1666
Упругая Шайба
36
F8538
SPRING PIN, 3/32 X 1/2
37
F286037
BOLT STERN BRACKET
38
F525286
Шайба
39
F286827
LEVER REVERSE LOCK RELEASE
40
F1794
SPRING PIN, 3/32 X 3/8
41
F197813
Подшипник
42
F286364
LEVER REVERSE LOCK
43
FA341510
LINK REVERSE LOCK LEVER
44
F286349
LOCK REVERSE
45
F1467
SCREW SWIVEL BRACKET
46
F213274
FITTING GREASE
47
F286300
SPRING REVERSE LOCK
48
F1806
GROOVE PIN, 5/16 - 3 3/4
49
F286585-1
DECAL, TILT RELEASE
50
FA387742
LEVER REVERSE LOCK INTERMEDIATE ASSEMBLY
51
F536813
Подшипник
52
F525839
SCREW, STEERING FRICTION
