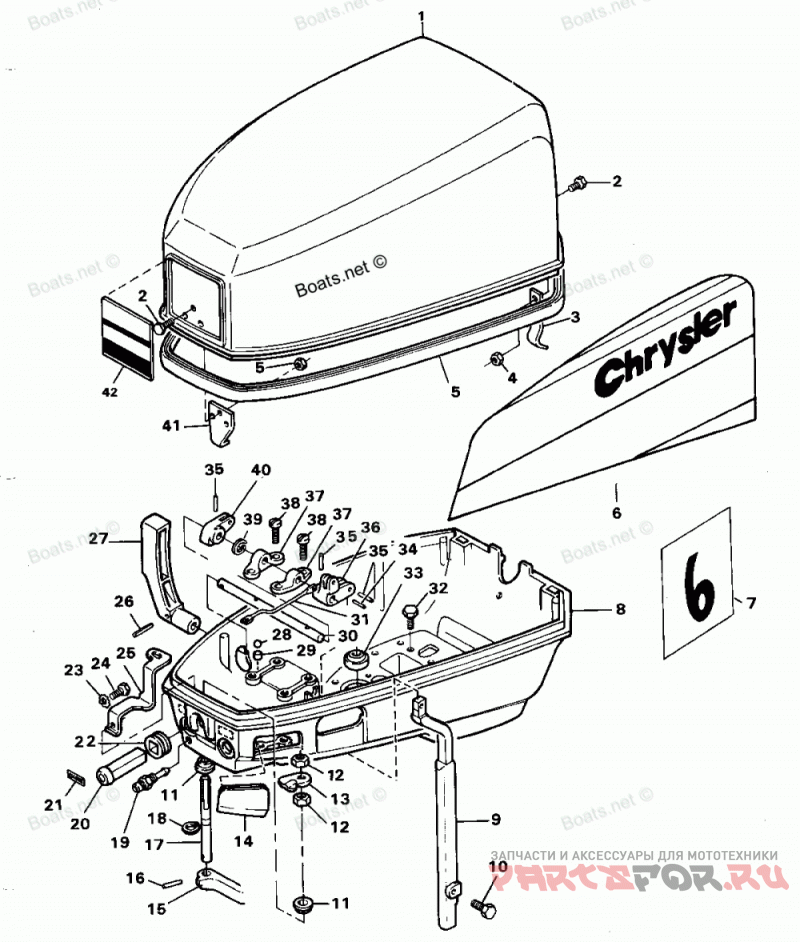

Engine Cover And Support Plate

Force H0064H82H

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER

ENGINE COVER

-

ENGINE COVER - COMPLETE.

ENGINE COVER - COMPLETE.

2

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

3

RETAINER ENGINE COVER

RETAINER ENGINE COVER

4

ELASTIC STOP NUT, 10 - 24

ELASTIC STOP NUT, 10 - 24

5

ENGINE COVER PACKING

ENGINE COVER PACKING

6

DECAL ENGINE COVER - STARBOARD

DECAL ENGINE COVER - STARBOARD

-

DECAL ENGINE COVER - PORT

DECAL ENGINE COVER - PORT

7

DECAL, NUMERAL

DECAL, NUMERAL

8

SUPPORT PLATE W/EYELET

SUPPORT PLATE W/EYELET

9

ROD GEAR SHIFT UPPER

ROD GEAR SHIFT UPPER

10

HEX HD SCREW, 10 - 24 X 5/8

HEX HD SCREW, 10 - 24 X 5/8

11

BEARING (NYLINER)

BEARING (NYLINER)

12

NUT, 5/16 - 18

NUT, 5/16 - 18

13

CAM COVER LATCH

CAM COVER LATCH

14

Уплотнитель резиновый

Уплотнитель резиновый

15

HANDLE LATCH

HANDLE LATCH

16

SPRING PIN, 1/8 X 5/8

SPRING PIN, 1/8 X 5/8

17

SHAFT COVER LATCH

SHAFT COVER LATCH

18

Прокладка

Прокладка

19

BUSHING FUEL LINE

BUSHING FUEL LINE

20

CHOKE KNOB

CHOKE KNOB

21

DECAL CHOKE

DECAL CHOKE

-

DECAL CHOKE, CANADA

DECAL CHOKE, CANADA

22

GROMMET, CHOKE ROD

GROMMET, CHOKE ROD

23

LOCKWASHER, #10

LOCKWASHER, #10

24

HEX HD SCREW, 10 - 24 X 3/8

HEX HD SCREW, 10 - 24 X 3/8

25

LINK CHOKE KNOB

LINK CHOKE KNOB

26

SPRING PIN, 1/8 X 13/16

SPRING PIN, 1/8 X 13/16

27

Вал переключения скоростей

Вал переключения скоростей

28

BALL CHECK

BALL CHECK

29

PAD SHIFT DETENT

PAD SHIFT DETENT

30

SHAFT GEAR SHIFT LEVER

SHAFT GEAR SHIFT LEVER

31

LINK STATOR INTERLOCK

LINK STATOR INTERLOCK

32

HEX HD SCREW, 1/4 - 20 X 1/2

HEX HD SCREW, 1/4 - 20 X 1/2

33

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

34

SPRING PIN, 3/32 X 1/2

SPRING PIN, 3/32 X 1/2

35

SPRING PIN, 1/8 X 5/8

SPRING PIN, 1/8 X 5/8

36

LEVER GEAR SHIFT

LEVER GEAR SHIFT

37

BEARING, SHIFT LEVER SHAFT

BEARING, SHIFT LEVER SHAFT

38

FILL HD SCREW, 1/4 - 20 X 1/2

FILL HD SCREW, 1/4 - 20 X 1/2

39

BOWED SPRING WASHER

BOWED SPRING WASHER

40

LEVER SHIFT INTERLOCK

LEVER SHIFT INTERLOCK

41

BRACKET COVER LATCH

BRACKET COVER LATCH

42

INSERT PLATE FRONT

INSERT PLATE FRONT
