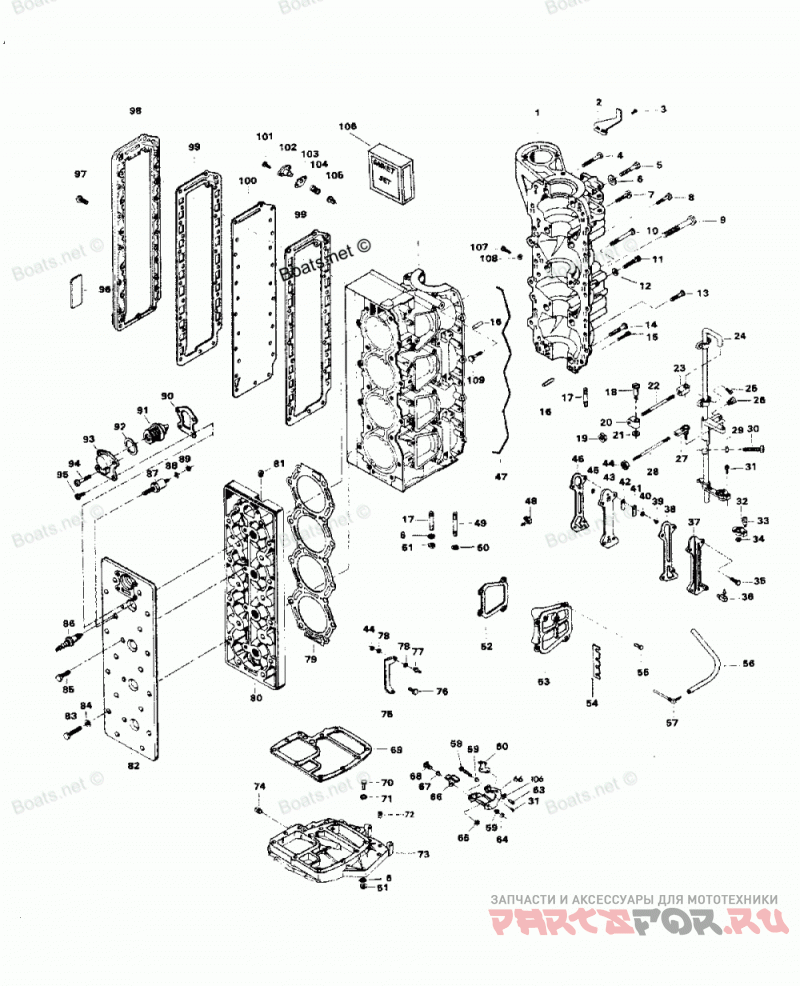

Power Head для лодочных моторов Force H1158B81E (1981)

Power Head

Force H1158B81E

oem код

название

цена

FA553010

CYLINDER W/CRANKCASE COVER

FC553010

Силовой агрегат без навесного оборудования, коллекторов, маховика, поддона и головки блока цилиндров

FA480894

TIMING POINTER

F1760

PAN HD SCREW, 10 - 24 X 3/8

F1874

HEX HD SCREW, 3/8 - 16 X 1/8

F1009

HEX HD SCREW, 3/8 - 16 X 2-3/4

F8038

PLAIN WASHER

F2008

HEX HD SCREW, 1/4 - 20 X 7/8

F2008

HEX HD SCREW, 1/4 - 20 X 7/8

F1873

HEX CAP SCREW, 3/8 - 16 X 3

F1699

HEX HD SCREW, 1/4 - 20 X 1-1/8

F1253

HEX SOCKET HD CAP SCREW, 3/8 - 16 X 2

F8104

PLAIN WASHER

F1864

HEX HD SCREW, 1/4 - 20 X 3/4

F1872

HEX CAP SCREW, 3/8 - 16 X 1-3/4

F1099

FILL HD SCREW, 1/4 - 20 X 1-1/4

Палец

Шпилька

SWIVEL

HEX NUT, 1/4 - 28

DISTRIBUTOR, CONTROL ROD END

F1935

PLAIN WASHER

F85445

CONTROL ROD

F85036

TOWERSHAFT CONTROL ROD END

817932A6

TOWERSHAFT W/SWIVEL, BEARINGS AND SCREWS

F1475

FILL HD SCREW, 10 - 24 X 1/2

PLASTIC RIVET

BALL JOINT W/STUD

THROTTLE LINK

HEX NUT, 1/4 - 20

FILL HD SCREW, 1/4 - 20 X 1

F1556

FILL HD SCREW, W/LOCKWASHER, 10 - 24 X 3/8

FK405020

SWIVEL W/CLAMP, SHOULDER SCREW AND NUT

F405457

PIVOT SCREW

F7008

Гайка

F1532

HEX HD SCREW, 1/4 - 20 X 1

8181031

ELBOW, CYLINDER DRAIN LOWER

F404801

ELBOW, CYLINDER DRAIN UPPER (NOT SHOWN)

F406471-1

CYLINDER DRAIN COVER

F84472-5

GASKET, CYLINDER DRAIN COVER

F1286

PAN HD SCREW, 4 - 40 X 3/16

PLAIN WASHER

REED STOP

CYLINDER DRAIN REED

CYLINDER DRAIN REED PLATE

F1513

HEX NUT, 10 - 32

F93811

Водозаборная решетка

F84748-3

GASKET, CYL. DRAIN REED PLATE

SEAL, PARTING LINE

Колено

Шпилька

PLAIN WASHER

STOP NUT, 3/8 - 16

GASKET, TRANSFER PORT COVER

FA411222

TRANSFER PORT COVER

F523834

CLIP, SPARK PLUG WIRE

F1922

HEX CAP SCREW, 1/4 - 20 X 5/8

F406754-1

Шланг

F404314

Фитинг

F1885

HEX BOLTS. S.S., 5/16 - 18 X 4-1/4

F85610

Подшипник

F480107-1

CAM STARTER INTERLOCK

FA480876

GEAR SHIFT ARM

F2042

PLAIN WASHER

F2089

SLOTTED PAN HD M. SCREW 10 - 24 X 5/16

STOP NUT, 5/16 - 18

STOP NUT, 1/4 - 20

INTERLOCK ARM

Подшипник

Винт

GASKET, CYLINDER EXHAUST UPPER

F1869

HEX CAP SCREW, 3/8 - 16 X 1-1/4

Стопорная шайба

Подшипник

SPACER PLATE

Заглушка

Крепление

HEX CAP SCREW, 1/4 - 20 X 3/4

F98273

ROD END CONNECTOR STUD

F8058

INTERNAL TOOTH LOCKWASHER

F476529-1

Прокладка головки блока цилиндров

FA528518

Головка цилиндра

F19109

Заглушка

F528995

Крышка головки цилиндра

F2049

HEX CAP SCREW, 5/16 - 18 X 2-5/8

F1987

PLAIN WASHER

F2008

HEX CAP SCREW, 1/4 - 20 X 7/8

97180

SPARK PLUG (CHAMPION L20V) - USA

C523227

SPARK PLUG (CHAMPION QL-76V) - CANADA.

THERMOSWITCH

Стопорная шайба

HEX NUT, 8 - 32

Прокладка

Термостат

GROMMET (THERMOSTAT)

Крышка термостата

FILL HD SCREW, 1/4 - 20 X 1-1/4

F1107

SLOTTED FILL HD CAP SCREW, 1/4 - 20 X 3/4

F438398

DECAL, WIRING - USA

FC438398

DECAL, WIRING - CANADA

F1916

HEX BOLT, 1/4 - 20 X 1-1/8

F372152-1

EXHAUST PORT COVER

F372154-1

GASKET, EXHAUST PORT PLATE

100

F372151-1

EXHAUST PORT PLATE

101

F1950

HEX CAP SCREW, 10 - 24 X 5/8

102

F438066

BY-PASS VALVE COVER

103

F85762

BY-PASS VALVE COVER GASKET

104

F404268

BY-PASS VALVE SPRING

105

F85916-1

BY-PASS VALVE

106

FG1003-1

Комплет прокладок

F40223

TRANSFER PORT COVER GASKET

F84472-5

CYLINDER DRAIN COVER GASKET

F84748-3

CYLINDER DRAIN REED PLATE GASKET

F85279-2

CYLINDER EXHAUST UPPER GASKET

F85762

BY-PASS COVER GASKET

F85906

CARBURETOR GASKET

F178168-1

CARBURETOR ADAPTER GASKET

F184122-1

Уплотнение

F372154-1

EXHAUST PLATE GASKET

F406406

DEFLECTOR PLATE GASKET

F440906

CARBURETOR GASKET

F476067

THERMOSTAT COVER GASKET

F476529-1

Прокладка головки блока цилиндров

107

F2000

HEX CAP SCREW, 5/16 - 18 X 3/4

108

F8096

SPRING LOCKWASHER

109

F1532

HEX HD SCREW, 1/4 - 20 X 1
